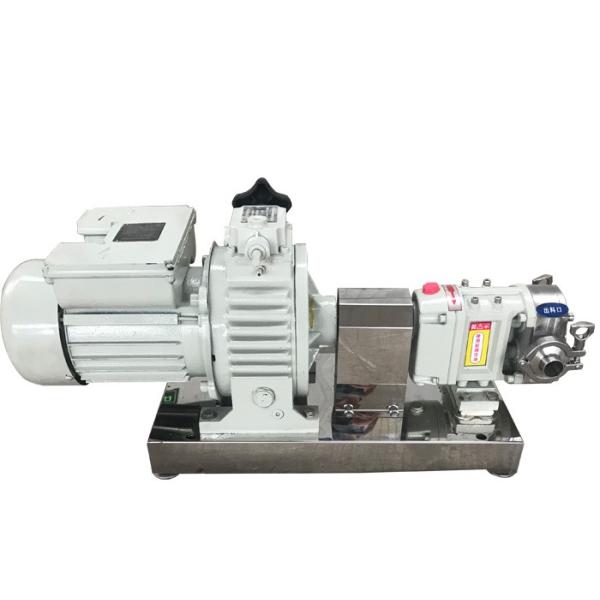

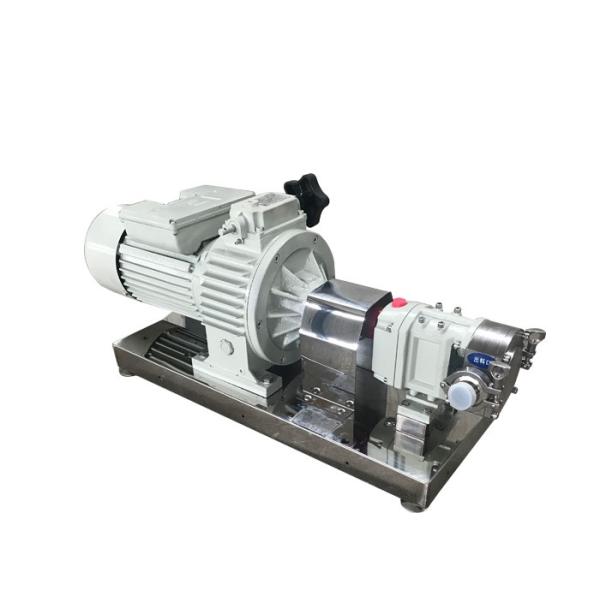

3RP series stainless steel 304 sanitary rotary lobe pump for transfer honey

Brief introduction

3RP series stainless steel 304 sanitary rotary lobe pump for transfer honey belong to positive displacement pump and has the advantages of outstanding self-priming ability, high efficiency, and long life. It applies to delivering suspension liquid with soft solid particles, corrosive medium and suspension liquid. The delivered medium temperature range from -30~150℃ and viscosity range from 30cst to 1.0×105cst. The parts of contact with medium adopt stainless steel. The rotating speed can be adjusted according to the delivered medium's physical property.

Advantages:

• Simple structure
• Good performance
• Reliable operation
• High-temperature
• Small volume,save cost

Application scope

1. Food industry:

Dairy products: yogurt, cream, ice cream, cheese and whey.
Beverages: beer, wort, yeast, soft drinks, fruit concentrates, fruit drinks.
Food: tomato sauce, vegetable paste, seasoning, sweeteners, yeast paste, salad, meat emulsion, edible oil.
Candy: syrup, cream stuffing, fruit puree, fruit filling, pudding, jam, jelly, chocolate.

2. Medicine industry: Pill, extract, emulsion, paste

3. Petroleum chemical industry: fats, solvents, resins and polymers, dyes

Performance scope of 3RP sanitary pump

1.Capacity:0.3-4.3m3/h;

2.Pressure:0.4-1.0mpa;

3.Motor power:0.55-22kw;

4.Temperature:-20-150degree;

5.Viscosity: 30cst ~ 1.0×105cst;

6.Speed:200-500rpm;

7.Material:stainless steel 304/316

Construction

3RP series stainless steel 304 sanitary rotary lobe pump for transfer honey is mainly composed of rotary lobe, shaft seal, Gear box. A pair of synchronous driving gear drive rotary lobe to deliver medium. The shaft seal can be designed with packing seal or mechanical seal according to specific working condition. The pump uses high strength, spiral gears and heavy load bearing in order to ensure the pump for long time.

You need not disassemble gearbox but adjust rotary lobe clearance because of special assembling way.

The material of “o” seal ring is the silicone rubber. To corrosive medium, PTFE is adopted.
