Robust Flange Automated Welding Equipment For Enhanced Pipeline Integrity
Robust Flange Automated Welding Equipment For Enhanced Pipeline Integrity
Robust Flange Automated Welding Equipment For Enhanced Pipeline Integrity
Robust Flange Automated Welding Equipment For Enhanced Pipeline Integrity
Specifications
Brand Name :
Olang
Model Number :
OL-20
Certification :
ISO
Place of Origin :
Foshan City ,China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 unit/month
Delivery Time :
15-30days
Packaging Details :
Wooden Case Packing
Swinger :
0-20mm
Model :
FWM-100
Welding Head Vertical Adjustment :
±15mm
Welding Speed :
0.5-2m/min
Welding Diameter Range :
DN50-DN1000
Welding Head Rotation Angle :
0-360 degrees
Description

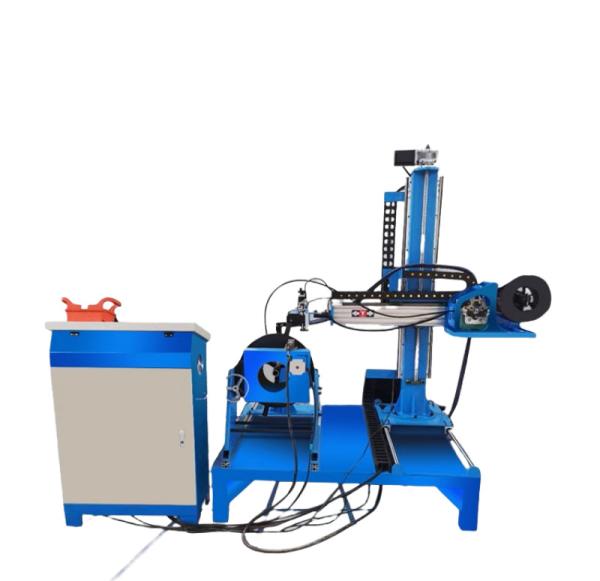

Robust and Efficient Flange Welding Machine for Enhanced Pipeline Integrity

Product characteristics:

  • High-Precision Welding Head: The welding head is designed for precise positioning and alignment, ensuring accurate welds even in tight spaces or challenging angles.
  • Real-Time Monitoring and Feedback: Equipped with sensors that provide real-time data and feedback on welding conditions, allowing for instant adjustments to optimize weld quality.
  • Integrated Safety Features: Includes built-in safety mechanisms such as emergency shut-off, overheat protection, and automatic pressure monitoring to protect operators and ensure safe operation.
  • Multi-Voltage Compatibility: Supports a wide voltage range, making the equipment adaptable to various power supply systems and enabling international usage.


TECHNICALPARAMETER

ModelOL-A-FLG-400OL-A-FLG-1500OL-A-FLG-3000OL-A-FLG-6000

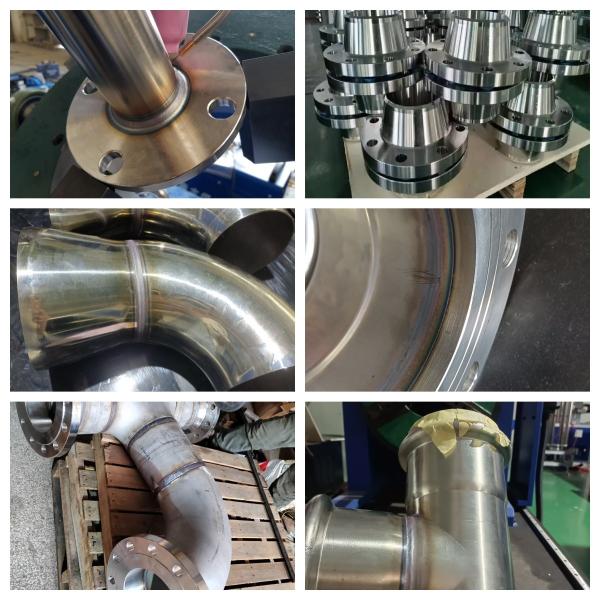

welding applicationPipe-to-Pipe Welding ,Pipe-to-Flange Welding,Elbow-to-Flange Welding,Pipe-to-Tee Welding

welding power supply

YC-400TX4YC-400TX4YC-400TX4YC-400TX4


welding torch working distance

400mm1500mm3000mm6000mm

work torch angle

0-90 degree0-90 degree0-90 degree0-90 degree


applicable thickness

0.8-3mm0.8-3mm0.8-3mm0.8-3mm



Positional center hole

170( Accept customization )170( Accept customization )170( Accept customization )170( Accept customization )


Flange OD

20-50020-50020-50020-500


Chuck center height

380mm380mm380mm380mm



Elbow rotation radius

<380<380<380<380


swinger


Swing Range: 0-20mm
Swing Speed: 0-20mm/min
Dwell Time: 0-5 seconds


wire feeding mamchine

Compatible with Wire Diameters: 0.8mm, 1.0mm, 1.2mm, 1.6mm
Power supply15kw/380v/50hz



Robust Flange Automated Welding Equipment For Enhanced Pipeline Integrity



Application

  • Aerospace and Shipbuilding Industry: Degreasing, degreasing and cleaning, paint removal, rust removal.

  • Automobile Manufacturing: Degreasing, cleaning of tire molds, removing coatings from galvanized sheets before welding.

  • Electronics and Semiconductor Industry: Cleaning of silicon wafers.

  • Marine, Railway, and Bridge Industry: Rust removal, paint removal.

  • Chemical, Food, and Medical Industries: Cleaning small holes in thin metal filter plates.

  • Building Cleaning: General cleaning of buildings.

  • Nuclear Power Plant Reactor Pipe Cleaning: Cleaning of pipes inside nuclear reactor systems.

Robust Flange Automated Welding Equipment For Enhanced Pipeline Integrity
Factory work shop
Robust Flange Automated Welding Equipment For Enhanced Pipeline Integrity

Package:
Robust Flange Automated Welding Equipment For Enhanced Pipeline Integrity
Exhibiton:
Robust Flange Automated Welding Equipment For Enhanced Pipeline Integrity
Certificate
Robust Flange Automated Welding Equipment For Enhanced Pipeline Integrity
Robust Flange Automated Welding Equipment For Enhanced Pipeline Integrity
