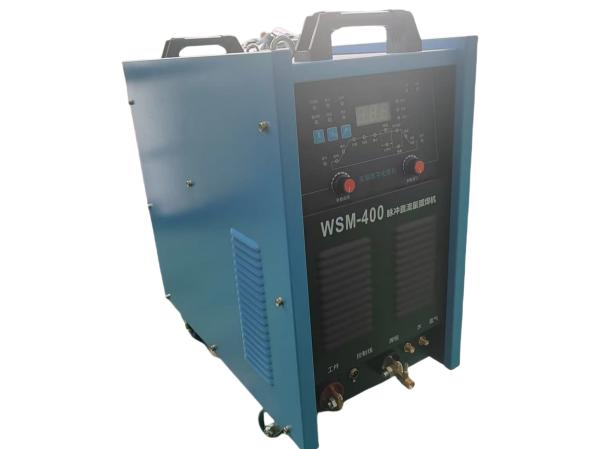

New TIG Welding Machine For Three Phase On Stainless Steel Aluminum
New TIG Welding Machine For Three Phase On Stainless Steel Aluminum
New TIG Welding Machine For Three Phase On Stainless Steel Aluminum
New TIG Welding Machine For Three Phase On Stainless Steel Aluminum
Specifications
Brand Name :
Olang
Model Number :
OL-119
Certification :
ISO
Place of Origin :
Foshan City ,China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 unit/month
Delivery Time :
15-30days
Packaging Details :
Wooden Case Packing
Motor Type :
TIG welding
Condition :
New
Pulse Frequency :
50-60Hz
Rated Voltage :
380V
Output Amps :
160A
Arcing :
high frequency
Description

New TIG Welding Machine for Three Phase on Stainless Steel Aluminum

1. Good Protection & Stable Welding

  • Uses argon gas shielding to prevent oxidation and ensure high weld strength and corrosion resistance.

  • Stable arc with excellent control, making it ideal for precision welding applications.

2. Pulse Welding Capability

  • Offers pulse welding function, which reduces heat input and minimizes deformation in thin materials.

3. DC and AC Welding Options

  • DC TIG welding is used for stainless steel, carbon steel, and copper.

  • AC TIG welding is suitable for aluminum and aluminum alloys, effectively removing oxide layers.

TECHNICALPARAMETER

M o d e l TIG-250T TIG-300T WSM-400F WSM-500F

Supply voltage(V)

Single-phase 220V±10% Three-phase 220V/380V±10%

Three-phase

380V±10%

Three-phase

380V±10%

Rated frequency(Hz) )

 50/60Hz 50/60Hz 50/60Hz 50/60Hz

Rated supply energy(KVA)(KVA)

 8.6 4.5 18 24

Maximum load voltage(V)

60 71 72 76

Rated load sustained rate(%)

 60% 60% 60% 60%

Rated output current(A)

10-160 10-240 10-400 10-500

Rated pulse current(A)

 400 500

Base current(A)

10-400 10-500

Impulse frequency(Hz)

 0.1-99.9 0.1-99.9

Thrust current(A)

 20-150 20-150

Exterior dimension(mm) Weight(Kg

410*175*335 7.9

440*205*355 10.5

510*252*456 21.5

530*300*532 28.2

Application

  • Aerospace and Shipbuilding Industry: Degreasing, degreasing and cleaning, paint removal, rust removal.

  • Automobile Manufacturing: Degreasing, cleaning of tire molds, removing coatings from galvanized sheets before welding.

  • Electronics and Semiconductor Industry: Cleaning of silicon wafers.

  • Marine, Railway, and Bridge Industry: Rust removal, paint removal.

  • Chemical, Food, and Medical Industries: Cleaning small holes in thin metal filter plates.

  • Building Cleaning: General cleaning of buildings.

  • Nuclear Power Plant Reactor Pipe Cleaning: Cleaning of pipes inside nuclear reactor systems.

New TIG Welding Machine For Three Phase On Stainless Steel Aluminum

Factory work shop
New TIG Welding Machine For Three Phase On Stainless Steel Aluminum

Package:
New TIG Welding Machine For Three Phase On Stainless Steel Aluminum

Exhibiton:
New TIG Welding Machine For Three Phase On Stainless Steel Aluminum

New TIG Welding Machine For Three Phase On Stainless Steel Aluminum

Certificate
New TIG Welding Machine For Three Phase On Stainless Steel Aluminum
New TIG Welding Machine For Three Phase On Stainless Steel Aluminum
