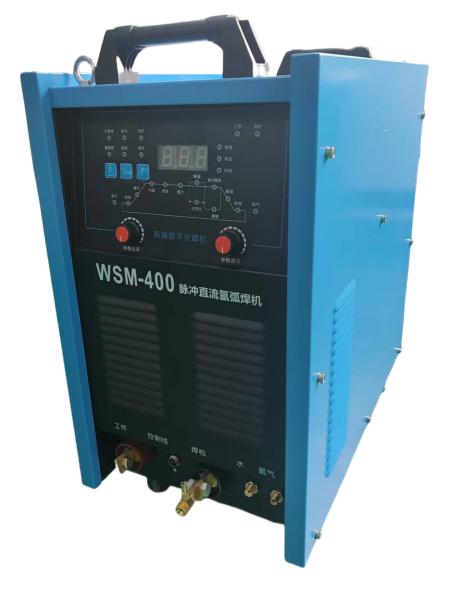

WSM-400F TIG Welding Machine Dual Voltage Input Anti-Stick Feature
WSM-400F TIG Welding Machine Dual Voltage Input Anti-Stick Feature
WSM-400F TIG Welding Machine Dual Voltage Input Anti-Stick Feature
WSM-400F TIG Welding Machine Dual Voltage Input Anti-Stick Feature
Specifications
Brand Name :
Olang
Model Number :
OL-119
Certification :
ISO
Place of Origin :
Foshan City ,China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 unit/month
Delivery Time :
15-30days
Packaging Details :
Wooden Case Packing
Motor Type :
TIG welding
Condition :
New
Pulse Frequency :
50-60Hz
Rated Voltage :
380V
Output Amps :
160A
Arcing :
high frequency
Description

WSM-400F TIG Welding Machine Dual Voltage Input Anti-Stick Feature

1. High Welding Quality

  • Produces clean, precise welds with excellent quality.

  • Weld seams are smooth and dense, with minimal defects like porosity or slag inclusion.

  • Ideal for thin materials and precision welding.

2. No Slag, Clean Welds

  • No flux coating is used, eliminating the need for slag removal.

  • Weld seams are neat and visually appealing.

3. Wide Range of Weldable Materials

  • Suitable for welding stainless steel, aluminum, copper, nickel, titanium, magnesium, and various alloys.

  • Particularly effective for high-quality and high-strength welds.

TECHNICALPARAMETER

M o d e l TIG-250T TIG-300T WSM-400F WSM-500F

Supply voltage(V)

Single-phase 220V±10% Three-phase 220V/380V±10%

Three-phase

380V±10%

Three-phase

380V±10%

Rated frequency(Hz) )

 50/60Hz 50/60Hz 50/60Hz 50/60Hz

Rated supply energy(KVA)(KVA)

 8.6 4.5 18 24

Maximum load voltage(V)

60 71 72 76

Rated load sustained rate(%)

 60% 60% 60% 60%

Rated output current(A)

10-160 10-240 10-400 10-500

Rated pulse current(A)

 400 500

Base current(A)

10-400 10-500

Impulse frequency(Hz)

 0.1-99.9 0.1-99.9

Thrust current(A)

 20-150 20-150

Exterior dimension(mm) Weight(Kg

410*175*335 7.9

440*205*355 10.5

510*252*456 21.5

530*300*532 28.2

Application

  • Aerospace and Shipbuilding Industry: Degreasing, degreasing and cleaning, paint removal, rust removal.

  • Automobile Manufacturing: Degreasing, cleaning of tire molds, removing coatings from galvanized sheets before welding.

  • Electronics and Semiconductor Industry: Cleaning of silicon wafers.

  • Marine, Railway, and Bridge Industry: Rust removal, paint removal.

  • Chemical, Food, and Medical Industries: Cleaning small holes in thin metal filter plates.

  • Building Cleaning: General cleaning of buildings.

  • Nuclear Power Plant Reactor Pipe Cleaning: Cleaning of pipes inside nuclear reactor systems.

WSM-400F TIG Welding Machine Dual Voltage Input Anti-Stick Feature

Factory work shop
WSM-400F TIG Welding Machine Dual Voltage Input Anti-Stick Feature

Package:
WSM-400F TIG Welding Machine Dual Voltage Input Anti-Stick Feature

Exhibiton:
WSM-400F TIG Welding Machine Dual Voltage Input Anti-Stick Feature

WSM-400F TIG Welding Machine Dual Voltage Input Anti-Stick Feature

Certificate
WSM-400F TIG Welding Machine Dual Voltage Input Anti-Stick Feature
WSM-400F TIG Welding Machine Dual Voltage Input Anti-Stick Feature
