1.25G Smart Cassette EPON Optical Line Termination 8 PON Ports 8GE Copper Port
1.25G Smart Cassette EPON Optical Line Termination 8 PON Ports 8GE Copper Port
1.25G Smart Cassette EPON Optical Line Termination 8 PON Ports 8GE Copper Port
1.25G Smart Cassette EPON Optical Line Termination 8 PON Ports 8GE Copper Port
Specifications
Brand Name :
NATYWISH
Model Number :
NTW-E18008C
Certification :
CE, RoHs, FCC
Place of Origin :
China
MOQ :
1pcs
Price :
negatiable
Payment Terms :
L/C, T/T
Supply Ability :
5000pcs
Delivery Time :
10-15 days
Packaging Details :
1pc/ carton
color :
black
size :
1U 19 inches
power supply :
AC：input 90～240V　47/63Hz, DC：input-36V～-72V,
standard :
IEEE 802.3ah
transfer distance :
20km
MAC :
Support 16k MAC address
Description

8 PON ports EPON OLT

----- NTW-E18008C

Product Introduction

NTW-E18008C adopts advanced technology in the industry, splitting ratio up to 1:64, supports different types of ONU hybrid networking which minimizes network operator’s investment. It has powerful ethernet service and QoS guarantee, supports SLA and DBA. Providing 8 GEPON ports, 8GE RJ45 ports and 4 SFP slots.

NTW-E18008C series complies with IEEE802.3ah and YD/T 1475-2006 standard.Provide a high density PON port, overall unit can support 512 ONU terminals, capacity is larger than regular cassette OLT, every PON port supports splitting ratio 1:64, PON optical transceiver is hot plug design, support 20km transmission distance.

Product Characteristic

NTW-E18008C Completely support 2 layer business function,achieve flexible QinQ and QoS function. ACL supports L2 to L7 ,deep into the IP message header and 80 bytes message of packet filtering. Provide high quality QoS service quality guarantee for multi service operation.

NTW-E18008C Highly centralized operation management and maintenance, for business, provide a unified network transmission and interconnection protocol, address management, domain name management, security management, user access management. OAM function includes configuration, alarm, performance monitoring, fault isolation and security management etc.

Product advanced Feature

Perfect security protection mechanism,use hardware packet forwarding can detect and filter the characteristic packets effectively, MAC address that supports ARP attacks, automatic protection and automatic user blocking capabilities, prevent protocol messages from attacking.Support all kinds of anti DDoS, CPU over-current protection,VRRP and other equipment protection function, revent illegal or abnormal traffic from entering the network,against multiple viruses attack.Ensure the safety of equipment management.

Product Specification

Model

 NTW-E18008C

Switching Capacity

 216Gbps

Packet Forwarding Rate(IPv4/IPv6)

 80Mpps

Interface

 8*PON ports,8*10/100/1000 Base-T ports,4*10G SFP slots.

Transmission Distance

 20km

Optical Power

 +2~ -27dBm

Redundancy Design

 Dual power supply,support dual AC input,dual DC input and AC+DC input.
Power Supply

AC:input 90～240V　47/63Hz,

DC:input-36V～-72V.

Full Load Power Consumption

 ≤56W

Dimension

 442mm×44mm×315mm

Full Weight

 ≤3kg
Environmental Parameter

Operating temperature:0°C～50°C

Storage temperature:-20°C～70°C

relative humidity:10%～90%.non-condensing

Service Characteristic

Model NTW-E18008C
Passive Optical Access Characteristic

Meet IEEE 802.3ah EPON standard.

Meet China Telecom / China Unicom GEPON interoperability standards.

Support single fiber 20km transfer distance.

Support single fiber passive optical access to 64 terminals.

Support 128Bits uplink and downlink three stir encryption function.

Support ONU terminal legitimacy certification, illegal ONU registration events reported.

Support standard OAM and extended OAM management functions.

Support ONU software batch upgrade, regular upgrade, real-time upgrade.

Support PON port optical power,accept optical power tested.
2 layers Characteristics MAC

Support MAC Black Hole.

Support port MAC Limit.

Support 16k MAC address.
VLAN

Support 4k VLAN table entry.

Support for VLAN based on ports, MAC, protocols, and IP subnets.

Support port QinQand flexible QinQ(StackVLAN).

Support VLAN Swap and VLAN Remark.

Support PVLAN ,achieve port isolate and save public VLAN resource.

Support GVRP.
spanning tree

Support STP/RSTP/MSTP.

Support remote loop detection.
port

Support bidirectional bandwidth control.

Support static and LACP dynamic converged port aggregation.

Support port mirroring image.
Safety Characteristics User security

Support Anti-ARP-spoofing.

Support Anti-ARP-flooding.

Support IP Source Guard to automatically create the IP+MAC+ port +VLAN binding table.

Support Port Isolation.

Supports MAC address binding to port, port MAC address filtering.

Support IEEE 802.1x and AAA/Radius user identity authentication.
Device security

Support the control layer to prevent all kinds of DOS and virus attack the CPU .

Support SSHv2 Secure ShGLl.

Support SNMP v3 encryption management.

Support TGLnet login and password mechanism for Security IP.

Support for maintenance user classification .

Protection,prevent unauthorized user access by forcible entry.
Network ecurity

Support every user MAC address ARP traffic detection.

Supports ARP message suppression or user blocking for ARP traffic detection.

Dynamic ARP tables support one key binding .

Support IP address,VLAN ID,MAC address port and other parameter bundling by hand.

Support L2-L7 ACL stream filtering of user-defined message header 80 bytes depth.

Support port broadcast / multicast message suppression and automatic shutdown of dangerous ports.

Support URPF unicast reverse path check to prevent IP address spoofing and attack.

Support DHCP, Option82 and PPPoE+ upload user physical location information.

Support MD5 ciphertext authentication and the plaintext of OSPF,RIPv2 and BGPv4 message.
Service Characteristic ACL

Support standards and extend ACL.

Support time range ACL statement.

Provide the flow classification and flow definition of IP message header information,includes source / destination MAC address,VLAN,802.1p,ToS.

DiffServ ,IP(IPv4/IPv6) address of source and destination,TCP/UDP port number,protocol type etc.

L2~L7 deep into IP message header,support 80 bytes of packet filtering.
QoS

Limits the speed of the port,the receive and send messages from custom streams,provides regular traffic monitoring for custom streams.

Support CAR(Committed Access Rate),Traffic Shapping and Traffic statistics.

Supports message mirroring and message redirection for ports or custom streams.

Supports priority tags for ports or custom flows,provide the priority remark of 802.1P,DSCP.

Support high grade queue scheduling of port and custom stream.

Support congestion to prevent mechanism,includes Tail-Drop,WRED etc.
IPv6

Support SA/DA Classification .

Support MLD Snooping.
multicast

Support IGMPv1/v2/v3 .

Support IGMPv1/v2/v3 Snooping.

Support IGMP Filter.

Support MVR multicast,VLAN register and cross VLAN multicast replication.

Support IGMP Fast leave.

Support IGMP Proxy.

Support PIM-SM/PIM-DM/PIM-SSM.

Support PIM-SMv6,PIM-DMv6,PIM-SSMv6.

Support MLDv2/MLDv2 Snooping
Reliability Loop protection

Support EAPS and GERP ,enhanced ethernet ring network protocol(Link healing time <50ms).

Support Loopback-detection,port loopback test.
Link protection

Support FlexLink backup,(Link healing time <50ms)

Support RSTP/MSTP link healing hardware accekerating ability(Link healing time <1s).

Support LACP Dynamic link aggregation (Link healing time <10ms).

Support BFD link surveillance.
Device protection

Support VRRP mainframe backup .

Support 1+1 power supply hot backup.
Maintenance Characteristics Network management

Support TGLnet port real time flow,utilization,receive and send data packet statistics.

Support RFC3176 flow analysis,can achieve flow monitoring and statistics

of protocol or address.

Support LLDP neighbor device discovery protocol.

Support 802.3ah Ethernet OAM.

Support data logs and 3164 BSD syslog Protocol.

Support Ping and Traceroute.
Device management

Support CLI,Console port,TGLnet and WEB configuration management.

Support SNMPv1/v2/v3.

Support RMON (Remote Monitoring)1,2,3,9 ground MIB.

Support Support NTP network time protocol.

Support GN.LinkⅡ Server Support GN.LinkⅡ Server .

Support NGBNView Network Management System.

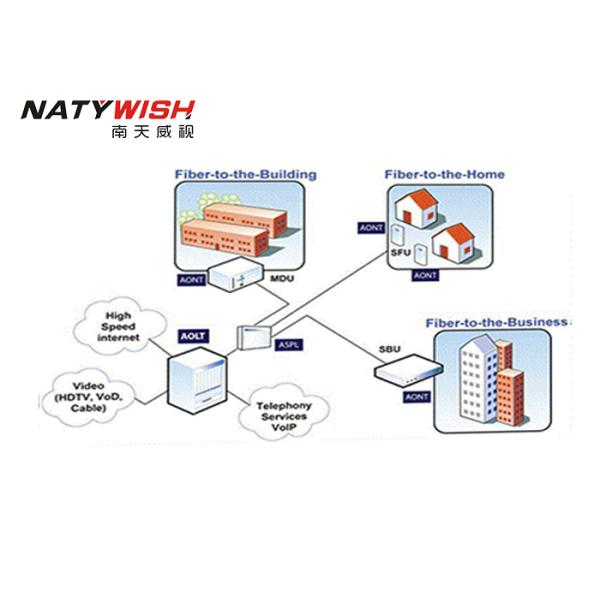

Application

1.25G Smart Cassette EPON Optical Line Termination 8 PON Ports 8GE Copper Port

Order Information

Model

 Product Description
NTW-E18008C

1.8*PON ports,8*10/100/1000Base-T electrical port, 4*10G- SR/LR/ER port.

2.Dual AC power supply,dual DC power supply,DC+AC power supply can be optional.
