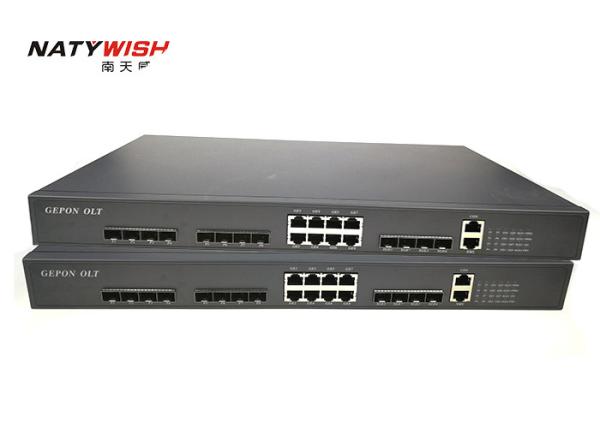

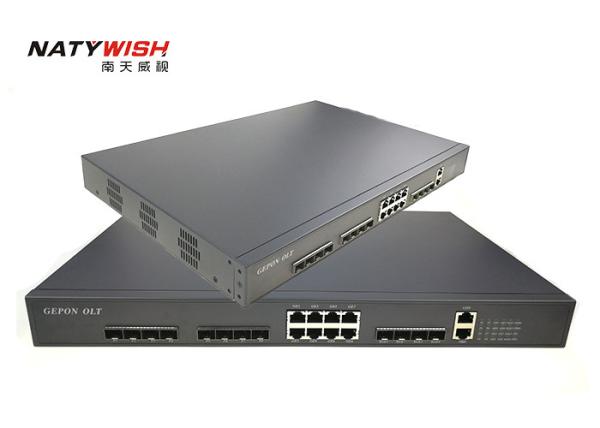

Single Fiber OLT Optical Line Terminal , 8 * 10 100 1000M RJ45 Ports GEPON OLT
Single Fiber OLT Optical Line Terminal , 8 * 10 100 1000M RJ45 Ports GEPON OLT
Single Fiber OLT Optical Line Terminal , 8 * 10 100 1000M RJ45 Ports GEPON OLT
Single Fiber OLT Optical Line Terminal , 8 * 10 100 1000M RJ45 Ports GEPON OLT
Specifications
Brand Name :
NATYWISH
Model Number :
NTW-E18008C
Certification :
CE, FCC, RoHs
Place of Origin :
China
MOQ :
1 pc
Price :
Negatiable
Payment Terms :
L/C, T/T
Supply Ability :
5000 pcs / week
Delivery Time :
10 - 15 days
Packaging Details :
1 pcs / carton
apply place :
fiber communication
optical interface :
8 PON ports
electrical interface :
8 RJ45 ports
Power supply :
DC + AC dual power supply
Interface :
SC
Upstream :
1.25G
Downstream :
1.25G
Description

fttx device gigabit 8 ports GEPON OLT , single fiber , SC , 8 PON ports , 8 * 10/100/1000M RJ45 ports and 4 SFP slots

-----NTW-E18008C

Single Fiber OLT Optical Line Terminal , 8 * 10 100 1000M RJ45 Ports GEPON OLT

PON network

PON network is for sure an effective solution for multiple network users. EPON and GPON are the most commonly deployed PON systems at present. Since people have been seeking for higher bandwidth provisioning, the capability of transmission will be greatly improved in the near future.

Advantages of PON

1. Low cost, simple maintenance, flexible extensibility and easy to upgrade. And no need for power during transmission saves a lot for long-term management.

2. Using pure media network avoids the interference of lightning and electromagnetism. Thus PON network

is suitable for areas under harsh conditions.

3. Low occupancy of central office resources, low initial investment and high rate of return.

4. As the P2MP network, PON is able to provide a large range of service to plenty of users.

PON Feature

1. Provide a high density PON port, overall unit can support 512 ONU terminals, capacity is larger than regular cassette OLT, every PON port supports splitting ratio 1:64, PON optical transceiver is hot plug design, support 20km transmission distance.

2. Support PON optical fiber redundancy protection,automatic link road protection switching in the case of optical fiber failure.

3. Support ethernet function, provide effective isolation guarantee mechanism, VLAN isolation, port protection,MAC address binding, IP address binding, port speed limit, queuing technique ,flow control technology etc.

Product Overview

NTW-E18008C series is a cassette OLT switching device designed by NATYWISH, provides 8 * downlink PON ports , 8* uplink ethernet RJ45 ports, 4* optical SFP slots, only 1U height. 1. Provide a high density PON port, overall unit can support 512 ONU terminals, capacity is larger than regular cassette OLT, every PON port supports splitting ratio 1:64, PON optical transceiver is hot plug design, support 20km transmission distance.

Product Advantage

1. EPON: NTW-E18008C series complies with IEEE802.3ah and YD/T 1475-2006 standard.

2. System capacity: Single PON port can support the access of 64 terminals, the overall unit can support 512 ONU terminals.

3. Uplink port: support many different types of metropolitan area network interface combination, according to network situation , select 1000M or 10000M port.

4. Device size: 1U, occupies little space in the computer room,less power consumption,reduces business operating cost.

5. High reliability guarantee, support dual power supply.

Product Specification

Model

 NTW-E18008C

Switching Capacity

 216Gbps

Packet Forwarding Rate(IPv4/IPv6)

 80Mpps

Interface

 8*PON ports,8*10/100/1000 Base-T ports,4*10G SFP slots.

Transmission

Distance

 20km

Optical Power

 +2~ -27dBm
Redundancy Design

Dual power supply,support dual AC input,dual DC input and AC+DC input
Power Supply

AC:input 90～240V　47/63Hz,

DC:input-36V～-72V,

Full Load Power Consumption

 ≤56W

Dimension

 442mm×44mm×315mm

Full Weight

 ≤3kg
Environmental Parameter

Operating temperature:0°C～50°C

Storage temperature:-20°C～70°C

relative humidity:10%～90%.non-condensing

Order Information

Model

 Product Description
NTW-E18008C

1.8*PON ports,8*10/100/1000Base-T electrical port, 4*SR/LR/ER port.

2.Dual AC power supply,dual DC power supply,DC+AC power supply can be optional.
