Stand Alone Media Converter Rack 480*230*88mm 2U AC 220V / DC 48V Dual Power Supply
Stand Alone Media Converter Rack 480*230*88mm 2U AC 220V / DC 48V Dual Power Supply
Stand Alone Media Converter Rack 480*230*88mm 2U AC 220V / DC 48V Dual Power Supply
Stand Alone Media Converter Rack 480*230*88mm 2U AC 220V / DC 48V Dual Power Supply
Specifications
Brand Name :
NATYWISH
Model Number :
NTW-1014
Certification :
CE, ROHS, FCC
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Paypal,Western Union
Supply Ability :
1000/ week
Delivery Time :
7-8 working days
Packaging Details :
1pc/ box
Name :
14-slot Rack Chassis
Media converter slot :
14
Power supply slot :
2
Cool fan :
2
Size :
480*230*88mm
Weight :
6kg
Description

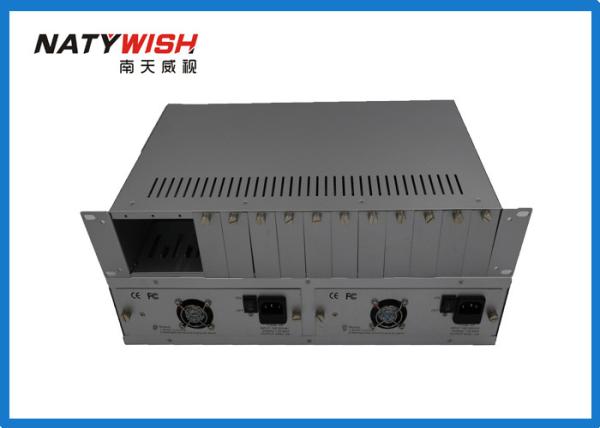

2U 14 Slots 19' Media Converter Rack 2U AC220V or DC-48V dual power supply , stand alone

This series of chassis is standard 19 2U height, a configurable chassis that can host 14 slots of standalone media converter. The chassis also features redundant power supply & alarm signal output capability, when one of the power supply fail or remove, the other will instantaneously take 100% of the load without any loss, and the status of alarm terminal will change. All slots are designed for hot swappable, it can be removed any of the power supply & media converter module without turning off the system.

Features&Benefits

■ 14 pieces of 2U media converters can be contained in one 2U chassis.

■ Two power supply:220VAC or -48VDC

■ The power supply working for redundancy.

■ LED indicators for power supply.

■ EIA or JIS can be selection

■ Two fans to reduce the temperature of 2U chassis.

■ Alarm signal output when power supply abnormal

Application

■ Broadband Fiber Optic Network

■ FTTX (FTTH, FTTC, FTTF, FTTB, etc)

■ Telecom Application

Technical Specifications

Item Parameter
Media converter slot 14
Power supply slot 2
Cool fan 2
LED indicator Power supply 1, Power supply 2
Power input

AC Voltage: AC 85~265V; frequency: 50/60 Hz

DC -36~72V
Power output DC5V,12A
Operate temperature 0℃~+70℃
Storage temperature -40℃~+80℃
Humidity 10%~90%
Dimensions 480*230*88mm(WxDxH)
Gross weight 6kg
Color Silver, Black,Blue or customized color
