High Bandwidth 8 PON Port GPON OLT Optical Line Termination Portable 440mm×44mm×380mm
High Bandwidth 8 PON Port GPON OLT Optical Line Termination Portable 440mm×44mm×380mm
High Bandwidth 8 PON Port GPON OLT Optical Line Termination Portable 440mm×44mm×380mm
High Bandwidth 8 PON Port GPON OLT Optical Line Termination Portable 440mm×44mm×380mm
Specifications
Brand Name :
natywish
Model Number :
NTW-G19008C2
Certification :
CE , RoHs , FCC
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5000 / weeks
Delivery Time :
10 - 15 days
Packaging Details :
1pcs / carton
Switching Capacity :
512Gbps
Full load power consumption :
≤85W
Environment :
Operating temperature: -40C ~ 70C
Storage temperature :
-40C ~ 70C
Size :
1U 19 inches
Weight :
≤3kg
Description

8 Ports Smart Cassette GPON OLT with 2 * 10G expansion SFP+ slots

--NTW-G19008C2

Product Overview

NTW-G19008C is a cassette GPON-OLT switching device designed by natywish, It provides 8 downlink GPON ports, 4 uplink GE optical ports+ 4 uplink GE ports(combo port), and has an extended slot, which can access 2 *10G SFP+ modules.Adopting advanced technology in the industry, it has powerful functions and QoS guarantee in Ethernet business, supporting SLA and DBA. Spectral ratio up to 1:128, support for different types of ONU hybrid network, which minimizes the investment of operators.

Product Features

► GPON: follows ITU.T G.984.x and (YD/T 1475-2006) standard.

► System capacity: single PON port supports the access capability of 128 ONU terminals, and the entire OLT machine can support 1024 ONU terminals under full configuration.

► Uplink port: flexible design supports various types of metropolitan area network interface types, and can selects Gigabit or 10 Gigabit ports according to network conditions.

► Size of equipment : 1U equipment occupies less space and less power consumption and reduces operation cost.

► High reliability guarantee: support dual power supply.

Product Specification

Parameter NTW-G19008C2
Switching Capacity 512Gbps
Service Ports 8*PON ports,4*GE optical ports+4GE electrical ports,2*10GE SFP+ slots
Redundant Design Dual power supply, support dual AC input, dual DC input and AC + DC input.
Power Supply

AC: input 100~ 240V , 47/63Hz.

DC: input - 36V ~ - 75V
Full load power consumption ≤85W
Size 440mm×44mm×380mm
Weight ≤3kg
Environment

Operating temperature: -40C ~ 70C

Storage temperature: -40C ~ 70C

Relative humidity: 10% to 90%, no condensation

Product Features

Parameter

NTW-G19008C2

PON Features

ITU-TG.984.x standard.

Support transmission distance 20km.

Support each PON port access 128 ONU terminals.

Uplink and downlink triple churning encrypted function with 128Bits.

Support ONU terminal legitimacy certification, report illegal ONU registration.

Support dynamic bandwidth allocation DBA algorithm.

Support standard OAM and extended OAM management functions

Support ONU software batch upgrade, timing upgrade, real-time upgrade.

PON port optical power detection
L2 Features MAC

MAC Black Hole

Port MAC Limit

32K MAC.
VLAN

Support 4K VLAN table items.

Support VLAN based on port, MAC, protocol and IP subnet.

Support port QinQ and flexible QinQ(StackVLAN).

Support VLAN Swap and VLAN Remark.

Support PVLAN to realize port isolation and save common VLAN resources.

Support GVRP.
Spanning Tree

Support STP/RSTP/MSTP.

Support remote loop detection.
Port

Support bidirectional bandwidth control.

Support static and LACP dynamic converging port aggregation.

Support port mirror image.

Security

Features

 User’s Security

Support Anti-ARP-spoofing

Support Anti-ARP-flooding

Support IP Source Guard automatically create IP+MAC+ port +VLAN binding table.

Support Port Isolation hardware to isolate messages between ports.

Support MAC address binding to port and port MAC address filtering.

Support user authentication IEEE 802.1x and AAA/Radius.
D evice Security

Support control layer to prevent all kinds of DOS attacks and virus attacks against CPU.

Support SSHv2 Secure ShGLl.

Support SNMP V3 encryption management.

The login and password mechanism of TGLnet supporting Security IP.

Support user level protection to prevent unauthorized user intrusion.
Network Security

Support per user MAC address ARP traffic detection.

Support ARP message suppression or user blocking based on ARP traffic detection.

Support One key binding based on dynamic ARP tables.

Support IP address, VLAN ID, MAC address and port manual binding.

L2-L7 ACL stream filtering support 80 byte header of custom message.

Support port broadcast / multicast message suppression and dangerous port automatic closure.

Support URPF unicast reverse path checking to prevent IP address counterfeiting and attack.

Support DHCP Option82 and PPPoE+ upload user physical location information.

Text and MD5 ciphertext authentication support OSPF, RIPv2 and BGPv4 messages.

Service Features

 ACL

Support standard and extend ACL.

Support the time (Time Range) based ACL policy.

Support flow classification and flow definition of IP message header base on source / destination MAC address, VLAN,802.1p, ToS, DiffServ, source / destination IP (IPv4/IPv6) address, TCP/UDP port number, Protocol type.

Support Packet filtering for L2 to L7 deep to IP message header with 80 bytes.
QoS

Support speed limit for receiving and sending messages to port or custom stream.

Support provides common traffic monitoring for custom flows and 2Rate3color dual speed three color traffic monitoring capability.

Support CAR(Committed Access Rate), Traffic Shaping and Traffic statistics.

Support message mirroring and message redirection for ports or custom flows.

Supports priority markings for ports or custom flows and provide the Remark capabilities of the 802.1P, DSCP priority.

Support advanced queue scheduling based on port or custom flow. each port / stream supports 4 priority queues, provide WRR, SP, and FIFO queuing scheduling algorithms.

Support congestion avoidance mechanism, including Tail-Drop, WRED and other functions.
IPv4

ARP Proxy

DHCP Relay

DHCP Server

Static Routing

RIPv1/v2

OSPFv2

BGPv4

Equivalent Routing

Routing Strategy
IPv6

Support SA/DA Classification

Support MLD Snooping

ICMPv6

ICMPv6 Redirection

DHCPv6

ACLv6

OSPFv3

RIPng

BGP4+

Configured Tunnels

ISATAP

6to4 Tunnels

Dual stack of IPv6 and IPv4
Multicast

IGMPv1/v2/v3

IGMPv1/v2/v3 Snooping

IGMP Filter

MVR and cross VLAN multicast copy

IGMP Fast leave

IGMP Proxy

PIM-SM/PIM-DM/PIM-SSM

PIM-SMv6, PIM-DMv6, PIM-SSMv6

MLDv2/MLDv2 Snooping
Reliability Loop Protection

EAPS and GERP (recover-time <50ms)

Loopback-detection
Link Protection

FlexLink (recover-time <50ms)

RSTP/MSTP (recover-time <1s)

LACP (recover-time <10ms)

BFD
Device Protection

VRRP host backup

1+1 power hot backup
Maintenance Network Maintenance

Port real-time, utilization and transmit/receive statistic based on Telnet

RFC3176 sFlow analysis

LLDP

GPON OMCI

RFC 3164 BSD syslog Protocol

Ping and Traceroute
Device Management

CLI, Console port, Telnet and WEB

SNMPv1/v2/v3

RMON (Remote Monitoring)1,2,3,9 groups MIB

NTP

NGBNView network management

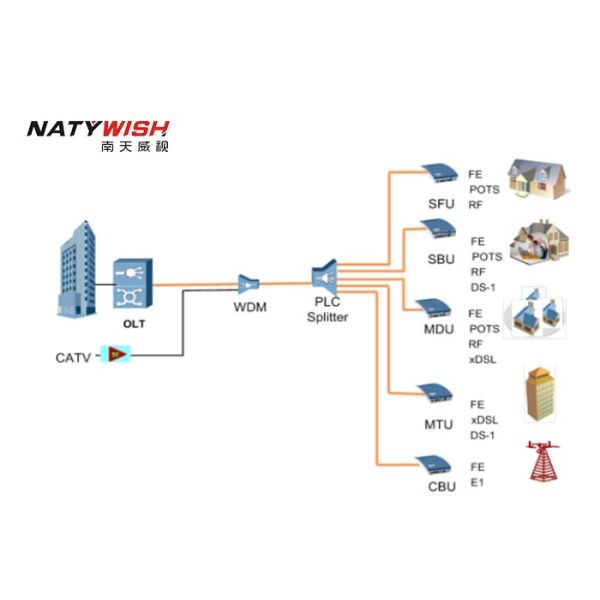

Application

High Bandwidth 8 PON Port GPON OLT Optical Line Termination Portable 440mm×44mm×380mm

Order Information

Product Name

Product Description
NTW-G19008C2 8 GPON ports, 4GE optical ports+4 GE electrical ports(combo port), dual power
