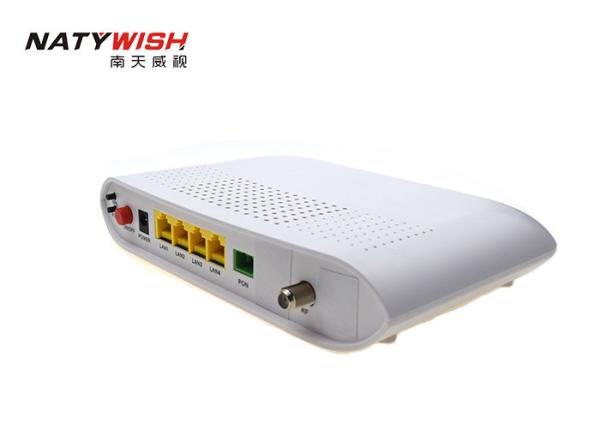

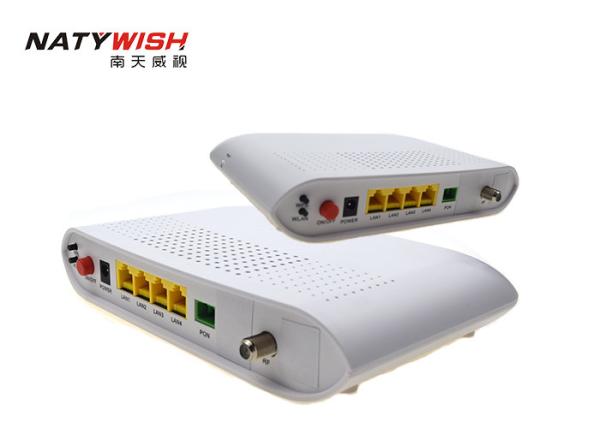

Build In WiFi GEPON ONU Optical Network Unit With One GEPON Port 4 FE / GE RJ-45 LAN Ports
Build In WiFi GEPON ONU Optical Network Unit With One GEPON Port 4 FE / GE RJ-45 LAN Ports
Build In WiFi GEPON ONU Optical Network Unit With One GEPON Port 4 FE / GE RJ-45 LAN Ports
Build In WiFi GEPON ONU Optical Network Unit With One GEPON Port 4 FE / GE RJ-45 LAN Ports
Specifications
Brand Name :
NATYWISH
Model Number :
NTW-G1741CHW
Certification :
CE, FCC, ROHS
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5000 pcs / week
Delivery Time :
10 - 15 working days
Packaging Details :
1pcs / box
GEPON / EPON ONT :
4 + CATV + WIFI
equipment application :
FTTx fibet to the home
Working environment temperature :
-10℃～45℃
Wavelength :
1310nm / 1490nm
PON interface :
SC / PC
router mode :
wifi built inside
RF port :
CATV function
Description


HGU type EPON ONT 1 * PON port , 4 * 10 / 100 /1000M RJ45 ports + CATV + WIFI triple

play ONU for FTTH network solution

---NTW-E171P4ED1V

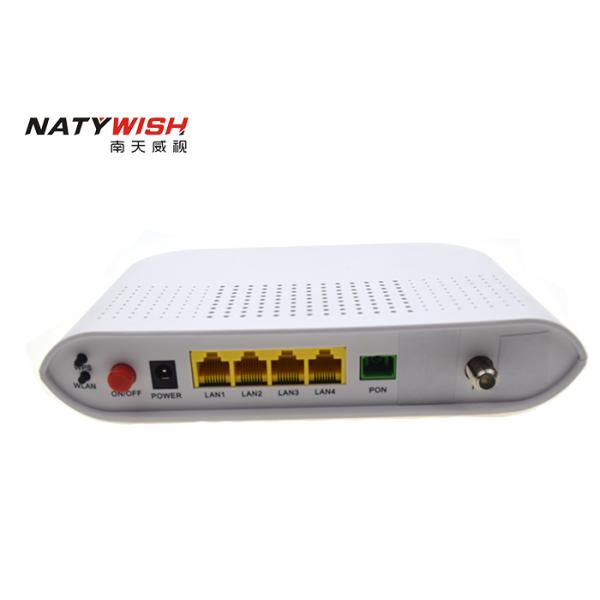

Build In WiFi GEPON ONU Optical Network Unit With One GEPON Port 4 FE / GE RJ-45 LAN Ports


4FE + CATV + WIFI GEPON ONU

WIFI Service Functions


1. Integrated 802.11b/g/n, 300Mbps, 2T2R.


2. Support 128 connections.


3. Support WEP and WPA/WPA2 security protocols.

CATV Service Functions

1. RF frequency: 45~875MHz.


2. Turn on/off RF output remotely.


3. RF level can be showed on PC Web real time.


Data Service Functions


1. Full speed non-blocking switching.


2. 2K MAC address table.


3. 64 full range VLAN ID.


4. Support QinQ VLAN, 1:1 VLAN, VLAN reusing, VLAN trunk, etc.


5. Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc.


6. Support auto polarity detection of Ethernet ports (AUTO MDIX).


7. Integrated IEEE802.1p QoS with four level priority queues.


8. Support IPv4 IGMP snooping and IPv6 MLD snooping.


9. Support bridge, router and bridge/router mixed mode.

4FE + CATV + WIFI GEPON ONU feature


1. Support 802.11n WiFi(2T2R) function.
2. Support NAT, Firewall function.
3. Support IPv4 and IPv6 dual stack.
4. Integrated OAM remote configuration and maintenance function.
5. Plug and play, auto-detecting, auto-configuration, and auto firmware upgrade, etc.
6. Support rich QinQ VLAN functions and IGMP Snooping multicast features.
7. Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.
8. Integrated line testing compliant with GR-909 on POTS.



4FE + CATV + WIFI GEPON ONU Data Service Functions

1. Integrated IEEE802.1p QoS with four level priority queues.
2. Support IPv4 IGMP snooping and IPv6 MLD snooping.
3. Support bridge, router and bridge/router mixed mode.

4. Full speed non-blocking switching.
5. 2K MAC address table.
6. 64 full range VLAN ID.
7. Support QinQ VLAN, 1:1 VLAN, VLAN reusing, VLAN trunk, etc.
8. Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc.
9. Support auto polarity detection of Ethernet ports (AUTO MDIX).



Product specification


Hardware characteristic
Port


1 optical port (SC/UPC fiber optical interface),1310/1490nm EPON signal.

1 CATV optical port(SC/APC fiber optical interface),1 coaxial cable

RF output port.


4 *10/100Base-T self-adaption LAN port
Transmission rate


Uplink and downlink 1.25Gbps
LED indicate light


indicates ONU power working state


PON,LOS,RUN,LAN1-LAN4,CATV indicates the state of ONU registration,ONU running, the state of link and active of LAN port, CATV light input
Reset


Provide hardware reset button,long press to restore factory settings
Power supply


12V/1A DC power input


Power consumption

 < 8W

Working environment temperature

-10℃～45℃
Working environment humidity 5%~95%(non-condensing)


Storage environment temperature

 -20℃～70℃

Storage environment humidity

 75%(maximum)
Size 200mm×150mm×36mm
Weight <1Kg

Service characteristic
Ethernet port Support port MDI/MDIX self negotiation
Support 802.3x flow control
support each port uplink and downlink speed limit
Support storm suppression
Support port MAC restrictions
Support port isolation
Support STP
Support port mapping
VLAN Support 802.1Q VLAN
Support SVLAN
Support 4k VLAN
Support CTC VLAN
multicast Support IGMP Snooping
Support 64*4 group multicast
Support CTC controlled Snooping


QoS

 support source MAC,destination MAC,VLAN priority,VLAN ID,Ethernet frame type,source IP,the destination of IP stream
support 802.1p,DSCP and TOS
Support SP priority scheduling algorithm
PON port Compatible CTC
compatible 802.3ah
Support 8 priority queues and SP scheduling algorithms
Support Dysing Gasp
Management maintenance Support CLI
Support Telnet
Support WEB management
Support Firmware remote and local upgrade
MAC address Support 2K MAC address table
Supports static MAC addresses
Support MAC address blacklist
MAC aging time can be configured



Order Information

Model Description


NTW-E171P4ED1V


4FE+CATV ONU+WIFI
