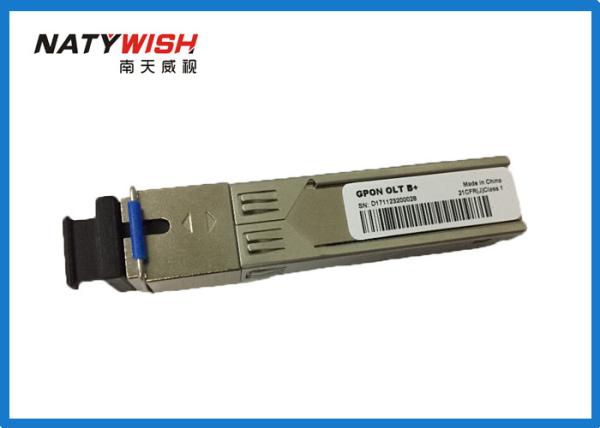

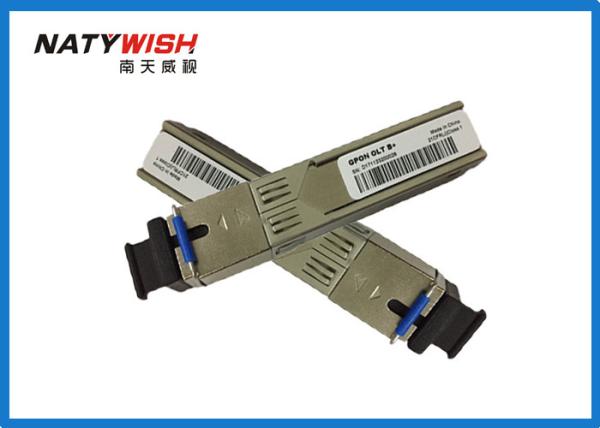

Eye Safety GPON SFP Module 1490 / 1310nm Single Fiber Bi - Directional Data Links
Eye Safety GPON SFP Module 1490 / 1310nm Single Fiber Bi - Directional Data Links
Eye Safety GPON SFP Module 1490 / 1310nm Single Fiber Bi - Directional Data Links
Eye Safety GPON SFP Module 1490 / 1310nm Single Fiber Bi - Directional Data Links
Specifications
Brand Name :
NATYWISH
Model Number :
NTW-SFP
Certification :
CE, ROHS, FCC
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, paypal, Western Union
Supply Ability :
5000pcs/ week
Delivery Time :
5-8 working days
Packaging Details :
1pc/box
Name :
GPON OLT Optical Module
Meet :
ITU-T G.984.2
Wavelength :
1490/1310nm
Operation temperature :
-40~85°C
Description

GPON OLT B+ SFP Module TX 1490nm 2.488Gbps, RX 1310nm 1.244Gbps BIDI SC/UPC


Product Features
Support ITU-T G.984.2 GPON OLT B+ application
Single fiber bi-directional data links with symmetric 2.488Gbps Tx and 1.244Gbps Rx
1490nm continuous-mode transmitter with DFB LD
1310nm burst-mode receiver with APD-TIA
2-wire interface for integrated digital diagnostic Monitoring
Receiver RESET, Signal Detect, RSSI function indication (RESET, RX_SD, RSSI)
SFP package with SC/UPC receptacle optical interface
Single +3.3V power supply
Operation case temperature -40~85°C for industrial and 0~70°C for commercial
RoHS6 compliance

Applications:
Data services
Voice services
Video services
Monitoring service
FTTH

Operating Condition

ParameterUnitMin.TypicalMax.
Storage Temperature°C-40 85
Operating Case Temp for C-temp°C0 70
Operating Case Temp for I-temp°C-40 85
Operating Relative Humidity%5 95
Power Supply VoltageV3.153.33.45
Supply CurrentmA 500
Bit Rate for TxGbps2.488
Bit Rate for RxGbps1.244


Characteristics
All performance is specified at whole working temperature and conditions

ParameterUnitMin.TypicalMax.
Transmitter
TX Central Wavelengthnm148014901500
Spectral Width (-20dB)nm 1
Side Mode Suppression Ratio (SMSR)dB30
Mean Launched PowerdBm1.5 5
Mean Launched Power (TX Off)dBm -45
Extinction RatiodB8.2
Optical Return Loss TolerancedB-12
Transmitter and dispersion PenaltydB 1
Transmitter Mask(PRBS223-1@2.488G)Compliant With ITU-T G.984.2
Receiver
Receive Wavelengthnm129013101330

Sensitivity
(PRBS223-1@1.244G,ER=10,BER<10-10)

dBm -28

Overload
(PRBS223-1@1.244G,ER=10,BER<10-10)

dBm-8
Receiver Burst Mode Dynamic RangedB15
Damage Threshold for ReceiverdBm5
SD Assert LeveldBm -30
SD De-assert LeveldBm-45
SD HysteresisdB0.5 6
WDM Filter isolation to 1550nmdB38
WDM Filter isolation to 1650nmdB35
Electrical Interface Characteristics
Data Input Swing Differential/TXmV200-2000
Data Output Swing Differential/RXmV400 1600
Date Differential ImpedanceΩ90100110
LVTTL Output HighV2.4 Vcc
LVTTL Output LowV0 0.4
LVTTL Input HighV2.0 Vcc+0.3
LVTTL Input LowV0 0.8
Timing Characteristics
Guard Time (Tg)ns25.6
Reset Pulse Width (Tr)ns 12.8
Reset Delay (Trd)ns 12.8
Receiver Preamble Time (Tp)ns 140
SD Assert Time (TSDA)ns 100
SD De-assert Time (TSDD)ns 12.8
RSSI Trigger Delay (Ttd)ns25
RSSI Trigger Pulse Width (Tw)ns500
Internal I2C Delay (Twait)us 500
