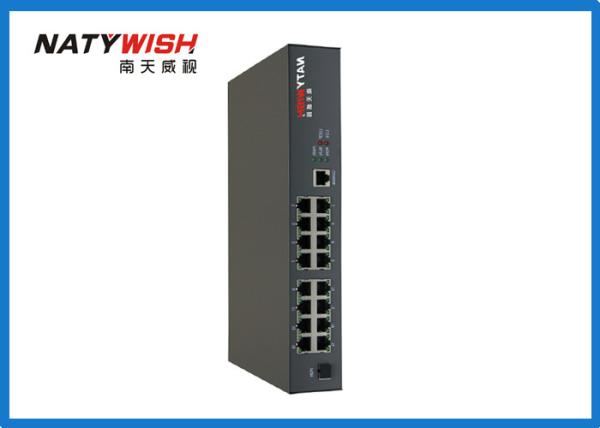

Video Surveillance Solution MDU ONU 16 FE 16 * 10 / 100 BASE - T And 1 Pon Ports
Video Surveillance Solution MDU ONU 16 FE 16 * 10 / 100 BASE - T And 1 Pon Ports
Video Surveillance Solution MDU ONU 16 FE 16 * 10 / 100 BASE - T And 1 Pon Ports
Video Surveillance Solution MDU ONU 16 FE 16 * 10 / 100 BASE - T And 1 Pon Ports
Specifications
Brand Name :
NATYWISH
Model Number :
NTW-E171600H
Certification :
CE, RoHs, FCC
Place of Origin :
China
MOQ :
100pcs
Price :
negotiable
Payment Terms :
L/C , T/T , Paypal , Western Union
Supply Ability :
5000 pcs / week
Delivery Time :
3 - 10 working days
Packaging Details :
1pcs/ box
Name :
mdu onu
Size :
440mm *180mm * 44mm
ports :
1*20Km GEPON
weight :
<2kg
installation :
rack mount / wall hanging
application :
video surveillance solution
Description

16*10/100BASE-T and 1 Pon Ports EPON MDU ONU , 16 FE GEPON MDU ONU


NTW-E17800H is an optical network device that meets current market requirement.One MDU supports 16 ethernet ports(RJ45 port) and one EPON port. The application of broadcast and television bidirectional network and FTTO/FTTB.Completely meet the standard of IEEE802.3ah and YD/T 1475-2006.

Product advantage

1. System capacity: 8 ethernet RJ45 ports, achieve ONU and ethernet switch mixing together in the EPON+LAN access solution.
2. Size :1U, occupies less space in the computer room, consumes less power and reduces the operating cost of the business.


Product feature

1. Using point to multipoint network topology,effectively collect dispersed user ethernet business then converged in the metropolitan area network node.Provide standard RJ45 Fast Ethernet interface on user side,achieve smooth interconnection with existing networks .
2. Dynamic bandwidth allocation(DBA) enables all users to share 100M bandwidth more reasonably,achieve a reliable quality of service guarantee (QoS).
3. Support IGMP multicast and make full use of broadband.
4. Support port isolation.
5. Support ethernet loop detection,automatically identifies whether exit ethernet loop block,when the loop disappears, it will automatically recover.
6. Support VLAN multicast.
7. Support 2-7 layer ACL filtering.
8. Support remote loopback, remote diagnostics network status.
9. OAM design,includes configuration, alarm, performance monitoring, fault isolation and security management ,provides both remote administration through OLT and local console management.

Hardware Specification

Provide 1 PON port (SC/UPC)
Data Ports Provide 16 LAN ports with 10/100Base-T auto-negotiation
Provide 1 local serial port for configuration (RJ45)
Date Rate Provide 1Gbps data transmission for upstream and downstream each
Ethernet Switch 100Mbps line-speed Ethernet switch inside
LED POWER, PON, LOS, RUN, LOOP indicate power supply, PON
registration, optical signal loss, system running and loopback status
LAN1~16 indicate LINK/Active status of LAN ports
Power Supply 100V～240V AC / 50Hz～60Hz
Power Consumption < = 15W
Operating Environment -10℃～55℃
Temperature
Operating Environment 5%~95% ( Non-condensing)
Humidity
Storage Environment -40℃～75℃
Temperature
Storage Environment 75% (Max.)
Humidity
Size 313mm (Length) * 160mm (Width) * 44mm (Height)
Weight 1.50Kg
Function List
Support MDI / MDIX auto-negotiation
Support 802.3x flow control
Support rate limitation of downstream & upstream per port
Ethernet Ports Support broadcast suppression
Support MAC limitation per port
Support port isolation
Support port mirroring
Support Spanning Tree Protocol (STP)
Support 802.1Q VLAN
VLAN Support Service VLAN (SVLAN)
Support 4094 VLAN ID
Support CTC VLAN
Support IGMP Snooping
Multicast Provide 255 multicast groups
Support CTC Controllable Snooping
Support packet classification based on destination MAC, source MAC,
VLAN priority, VLAN ID, Ethernet Type, destination IP, source IP
QoS Support 802.1p, DSCP and TOS
Provide SP, WRR and SP+WRR scheduling algorithms
PON Compliance with CTC V2.1
Compliance with IEEE802.3ah
Provide 4 priority queues
Provide Dying Gasp
Provide CLI
Provide Telnet
Maintenance Support WEB management
Support local or remote firmware upgrade
Support remote or local upgrade or download of configuration file
Support 16K MAC address
Support static MAC address
MAC Learning Support MAC learning at line-speed
Support MAC black list
Configurable MAC aging time
