8 ports POE ONU GEPON MDU Multi-dwelling unit with 1 GEPON port , 8 * 10 / 100 M

fast ethernet RJ45 ports with POE for fiber access network video monitoring , IP

camera solution

----NTW-E17800P







What is POE ?

Power over Ethernet or PoE describes any of several standard or ad-hoc systems which pass electric power along with data on twisted pair Ethernet cabling. This allows a single cable to provide both data connection and electric power to devices such as wireless access points, IP cameras, and VoIP phones.

Application of EPON

Ethernet PON (EPON) is a PON-based network that carries data traffic encapsulated in Ethernet frames (defined in the IEEE 802.3 standard). A typical EPON system consists of three components: optical line terminal (OLT), optical network unit (ONU), and optical distribution network (ODN). Utilizing PON topological structure to achieve the access of Ethernet, EPON is equipped with the dual advantages of PON and Ethernet including low cost, high bandwidth, strong scalability, excellent compatibility with Ethernet to facilitate network management, etc. Based on where ONUs are deployed, EPON application mode can be fiber to the curb (FTTC), fiber to the building (FTTB), and fiber to the home (FTTH), as shown in .

GEPON POE ONU In a FTTH system.

ONUs are deployed in user offices or homes to implement a fully transparent optical network, with the ONUs independent of the transmission mode, bandwidth, wavelength, and transmission technology. Therefore, FTTH is ideal for the long term development of optical access networks.

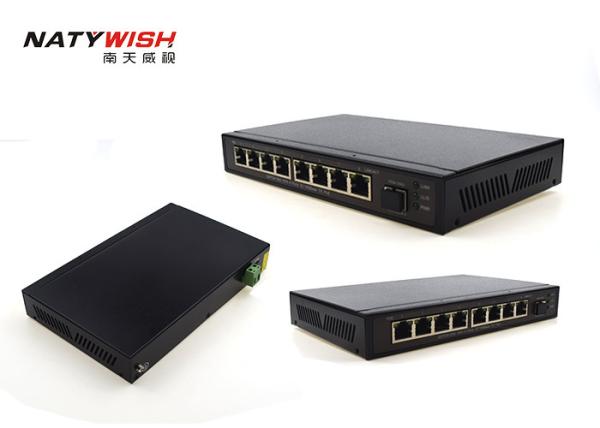

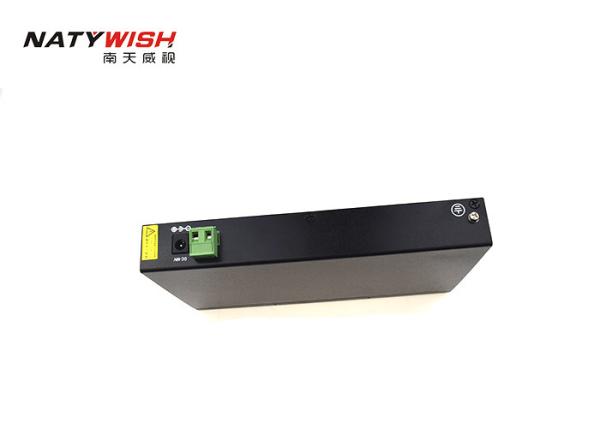

8 ports POE GEPON ONU MDU

NTW-E17800P series is a digital POE ONU, designed by NATYWISH,provides one 1.25G PON port,8*10/100Mbps self-adaptation POE ethernet ports ,support IEEE802.3af15.4W and IEEE802.3at30W power supply standard.It can automatically identify the electrical equipment and provide power, meet the IEEE802.3af/at standard .For the connected equipment that non electricity,it would automatically stop the power supply.It can be connected to the network camera, IP telephone and wireless AP network equipment and supply power and cooperate well with center OLT.It can achieve remote fault diagnosis and location ,reduce maintenance workload,Iron shell design,applicable to FTTB/FTTH and other application environments.


Technical Parameter

Order Information
