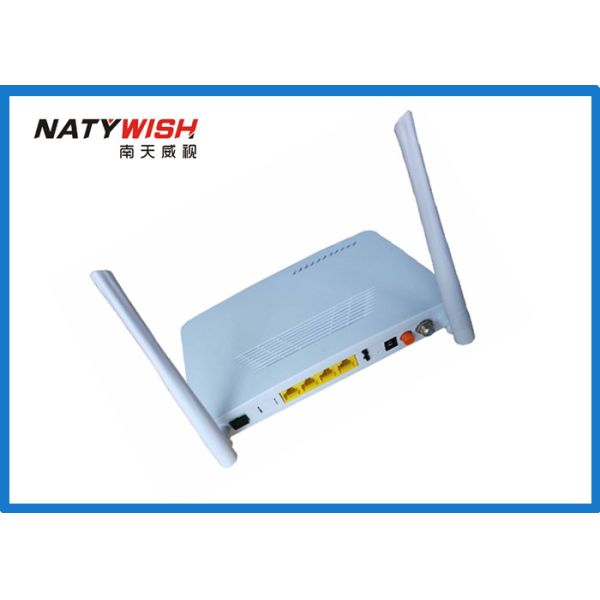

Safety Single Fiber EPON ONU Modem , ONU Fiber Modem Compatible With HUAWEI OLT
Safety Single Fiber EPON ONU Modem , ONU Fiber Modem Compatible With HUAWEI OLT
Safety Single Fiber EPON ONU Modem , ONU Fiber Modem Compatible With HUAWEI OLT
Safety Single Fiber EPON ONU Modem , ONU Fiber Modem Compatible With HUAWEI OLT
Specifications
Brand Name :
NATYWISH
Model Number :
NTW-E171V4E1SW
Certification :
CE, RoHs, FCC
Place of Origin :
China
MOQ :
100pcs
Price :
negotiable
Payment Terms :
L/C, T/T, Paypal, Western Union
Supply Ability :
5000pcs / day
Delivery Time :
5 - 8 working days
Packaging Details :
1pcs / box, 50 boxes / carton
Internet connection :
Bridge / Routing
Wavelength :
Tx 1310nm, Rx 1490nm, CATV 1550nm
Material :
plastic
Device size :
200mm(L) x 140mm(W) x 33mm(H)
input optical power :
--15dBm～0dBm
Power :
0.4KG
Description

1GE + 3FE + WiFi + CATV EPON ONU Modem Single fiber compatible with huawei olt

NTW-E171V4E1SW 4+CATV+WIFI ONU series is a passive optical network terminal product designed by NATYWISH,which is a CATV optical receiver that achieves broadband and CATV converged,in order to meet the requirement of broadband access for electric operators and FTTH.It is base on mature ,stable ,cost-effective PON technology,and integrates Gigabit Ethernet switching, WDM and HFC optical receiving technology,with the feature of high reliable ,easy to manage and QoS guarantee.It meets IEEE802.3ah standard and China Telecom EPON equipment technical requirements (V2.1)etc.

4+CATV+WIFI ONU series provides EPON access and HFC network architecture,uplink port has 1 EPON port ,1 CATV optical port .4 ethernet port and 1 RF port ,support WIFI function.

Product Feature:

1. built in WDM, single fiber access,provide broadband ,CATV etc services.

2. CATV service can be managed.

3. EPON meet the standard of IEEE802.3ah and China Telecom EPON equipment technical requirements (V2.1).

4. Transmission distance 20km,support data encryption.

5. support VLAN and multicast

6. Different data ports are isolated from each other.

7. support OAM remote configuration management.

8. communicate well with third party OLT platform.

9. Plug and play, with automatic discovery, automatic configuration, automatic updates and other functions.

10. support SNMP protocol,EMS WEB management etc.

Data service function

1. Full line speed ,non blocking switching.

2. Support port monitoring, port speed limit, port SLA and other functions.

3. support auto MDIX.

CATV service function

1. Support remote turn off function for CATV services.

2. Working wavelength:1550 +/- 10nm.

3. Optical reflection loss:>45dB.

4. input optical power :--15dBm～0dBm

5. RF bandwidth range:47MHz~1000MHz

6. RF output level:84dBuV (@-5dBm@85MHz)

7. CNR:>47dB (@-5dBm@ DS22Hz)

8. CSO: >60dBc (@-5dBm@ DS22Hz)

9. CTB: >60dBc (@-5dBm@ DS22Hz)

10. Output reflection loss: >14dB.

11. Output impedance: 75Ω.

Product specification

Model Parameter Specification
Port PON port

1 EPON port,

Meet 1000BASE-PX20 standard,

Uplink and downlink symmetric,1.25Gbps,

SC,single mode ,single fiber,

Splitting ratio:1:64,

Distance:20KM.
Electrical port

1*1000M,3*10/100M ethernet port(self adaption),

Full duplex/half duplex,

RJ45electrical port ,support cross connect directly,

Distance :100 meter,

1 CATV port,F connector.
Power supply

+12V DC power supply,

External :12V 1A AC/DC adapter.
Performance specification PON port

Wavelength :Tx1310nm Rx1490nm,

Transmit optical power:-1～4dBm,

Rx sensitivity:-27dBm,

Maximum optical power:-3dBm.
Data transmission performance

PON port: downlink 980Mbps,uplink 950Mbps

Ethernet :100Mbps

Packet loss:<1*10E-12

Transmission delay:<1.5ms
business

2 layers line speed switching

Support VLAN TAG/UNTAG,VLAN switch

Support port speed limit

Support business priority

Support broadcast packet suppression

Support loop detection
Device management Management Through the OAM protocol,center OLT device unified manage,support SNMP,TELNET,local management.
Management function Status monitoring, configuration , alarm and log management .
Status indication Indicated LED light 9 indicate Led light,use in indicating power,system,PON port ,network port and CATV port.
physical characteristics shell plastic
Power supply and consumption

External DC 12V

Power consumption:<5.5W
Size and weight

Device size:200mm(L) x 140mm(W) x 33mm(H) Package size:256.5mm(L) x 192mm(W) x 55mm (H)

Device weight:0.4kg
Environment

Working temperature:0～50℃

Storage temperature:-40～85℃

Operating humidity:10%～90% non condensing

Storage humidity: 5%～95% non condensing

WIFI Technical Parameter

Model Working mode Routing and bridge mode
performance index Rate IEEE 802.11b: 11Mbps
IEEE 802.11g: 54 Mbps
IEEE 802.11n: 135Mbps
Frequency range 2.412 ~ 2.472 GHz
Channel 13 channel. Can be configured to the United States, Canada, Europe, Japan, China and other regional norms.
modulation mode DSSS , CCK and OFDM
coding scheme BPSK, QPSK, 16QAM and 64QAM
RF receiving sensitivity 802.11b:
-82dBm @ 1 Mbps; -80dBm @ 2 Mbps;
-78dBm @ 5.5 Mbps; -76dBm @ 11 Mbps
802.11g:
-82dBm @ 6 Mbps; -81dBm @ 9 Mbps;
-79dBm @ 12 Mbps; -77dBm @ 18 Mbps;
-74dBm @ 24 Mbps; -70dBm @ 36 Mbps;
-66dBm @ 48 Mbps; -65dBm @ 54 Mbps
RF maximum output power 802.11b:
16.5 ±1dBm
802.11g:
13 ± 1dBm @ 54 Mbps; 14 ± 1dBm @ 48 Mbps;
15 ± 1dBm @ 6 ~ 36 Mbps
802.11n:
13 ± 1dBm @ 54 Mbps; 14 ± 1dBm @ 48 Mbps;
15 ± 1dBm @ 6 ~ 36 Mbps
Encryption mode 802.11i security: WEP-64/128, TKIP (WPA-PSK) and AES (WPA2-PSK)
