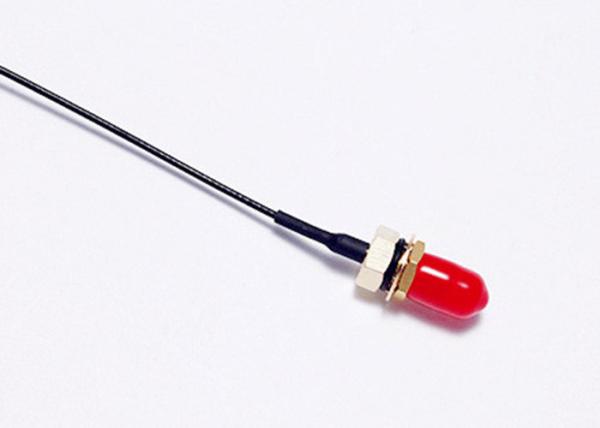

Telecommunication RF Coaxial Cable 100MM SMA Female Ipex Connector Cable
Telecommunication RF Coaxial Cable 100MM SMA Female Ipex Connector Cable
Telecommunication RF Coaxial Cable 100MM SMA Female Ipex Connector Cable
Telecommunication RF Coaxial Cable 100MM SMA Female Ipex Connector Cable
Specifications
Brand Name :
TX
Model Number :
TX06-1
Place of Origin :
China
MOQ :
100pcs
Price :
Price Discussion
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
30000PCS PER DAY
Delivery Time :
7-12 WORK DAYS
Packaging Details :
2000PCS PER CARTON
Material :
Metal + Cable
Color :
Black + Gold
Frequency :
DC-6Ghz
Impedance :
50 Ohm
VSWR :
1.5
Connector :
SMA Female to Ipex connector
Length :
100mm
Operation Temperature :
-40 degree to +65 degree
Storage Temperature :
-40 degree to +85 degree
Mating Cycles :
200
Description

Telecommunication RF coaxial cable SMA female to Ipex connector cable

Telecommunication RF coaxial cable SMA female connector to Ipex connector RG1.13 cable


Please kindly know that the length, connector and color can be customized.

Material: Metal + Cable Color: Black + Gold
Frequency: DC-6Ghz Impedance: 50 Ohm
VSWR: 1.5 Connector: SMA Female to Ipex connector
Length: 100mm Operation Temperature: -40 Degree To +65 Degree
Storage Temperature: -40 Degree To +85 Degree Mating Cycles:

200


We focus on coaxial assemblies.


Our custom RF cable assemblies are built-in and shipped worldwide.


RF cable assemblies in 50 ohms can be ordered using the following connector types such as 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP, SSMB, TNC, UHF, U.FL and 75 ohms cable assemblies can be made with the following 75 ohms connectors such as BNC, F, N, SMB, SMC, TNC and mini SMB .


RF cable assemblies includes: RG141 /RG142 /RG174/ RG178 /RG179 /RG180/ RG187 /RG196 /RG213 /RG214 /RG218 /RG219/ RG223 /RG303 /RG316 /RG316-DS /RG393 /RG400 /RG401 /RG402 /RG405 /RG58/U


RF cable assemblies can be produced with many different connector types and custom lengths depending on your needs and applications.


If you require a special RF cable assembly configuration not found here, you can create your own RF cable assembly configuration by calling our sales department.
