LoRa 3dbi fiberglass antenna Indoor Outdoor Omni-Directional LoRaWan Helium Antenna
LoRa 3dbi fiberglass antenna Indoor Outdoor Omni-Directional LoRaWan Helium Antenna
LoRa 3dbi fiberglass antenna Indoor Outdoor Omni-Directional LoRaWan Helium Antenna
LoRa 3dbi fiberglass antenna Indoor Outdoor Omni-Directional LoRaWan Helium Antenna
LoRa 3dbi fiberglass antenna Indoor Outdoor Omni-Directional LoRaWan Helium Antenna
LoRa 3dbi fiberglass antenna Indoor Outdoor Omni-Directional LoRaWan Helium Antenna
Specifications
Brand Name :
TX
Model Number :
TX-HG056
Place of Origin :
China
MOQ :
10-100 pcs
Price :
Price Discussion
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
50000 pcs per week
Delivery Time :
15 WORK DAYS
Packaging Details :
20pcs PER CARTON
Certification :
RoHs
product name :
Helium antenna
Frequency :
860-930 MHz
Peak Gain :
3dBi
VSWR :
≤1.5
Polarization :
Vertical
Efficiency :
≤65%
Color :
White, grey, or black
Cover Material :
Fiberglass
Connector :
N-type male or female

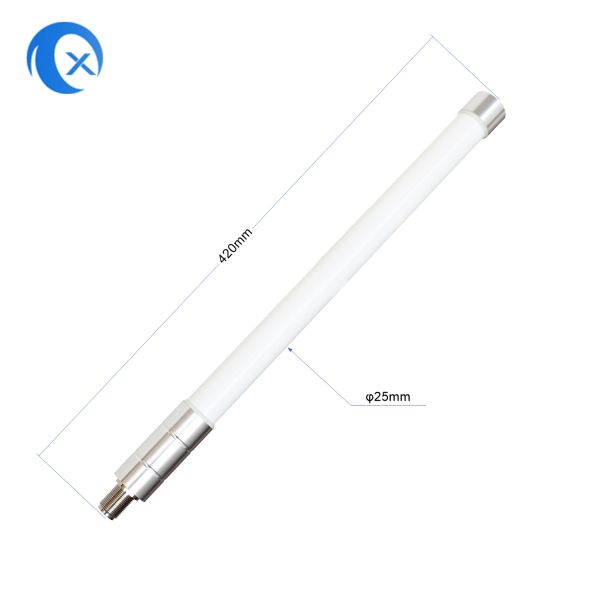

Dimensions :
φ25*420mm
Description

LoRa 3dbi fiberglass antenna Indoor Outdoor Omni-Directional LoRaWan Helium Antenna

Features:
1. Strong anti-shock, waterproof, and anti-corrosion ability.
2. Work around the clock.
3. Optimized size and frequency band.
4. High gain, low standing wave, strong anti-interference ability.

Electrical Specifications of Ultra-wideband fiberglass antenna

Frequency range(Hz)

860-930 MHz

Gain (dBi)

3

VSWR

≤1.5

Input impedance(Ω)

50

Polarization

Vertical

Lightning Protection

DC Ground

Input connector type

N female or Requested

Mechanica Specifications

Dimensions(mm)

25*420

Openrating temperature(℃)

—45～85

Radome color

Gray, Black, White

Fiberglass Antenna for base station

These series are heavy-duty, Omnidirectional fiberglass base station antennas. It has a collinear design enclosed in high-density fiberglass, which is covered with a protective ultraviolet inhibiting coating. Operate on 100 MHz, 433MHz, 868MHz, 915Mhz, 2.4 GHz, 3G, 4G, 5G, and 6 GHz frequencies and are used for ISM, Wi-Fi, IoT, RFID, UWB, and DSRC applications. Two types of antenna mounting are offered: connector mount and pole/mast mount. Antennas with a connector mount do not include additional mounting hardware, they have an N Plug connector and are IP67 certified. Antennas with a pole/mast mount are attached to an included aluminum guided pipe which is attached to a pole/mast with included mounting brackets. They have an N Jack connector. Tengxiang base station antennas have gain from 3 to 12 dBi.

Product show:

LoRa 3dbi fiberglass antenna Indoor Outdoor Omni-Directional LoRaWan Helium Antenna

LoRa 3dbi fiberglass antenna Indoor Outdoor Omni-Directional LoRaWan Helium Antenna

LoRa 3dbi fiberglass antenna Indoor Outdoor Omni-Directional LoRaWan Helium AntennaLoRa 3dbi fiberglass antenna Indoor Outdoor Omni-Directional LoRaWan Helium Antenna

Why choose us?

1. Hundreds of antenna products for optional, they are used for communication, IoT devices, security camera, smart home/city, automotive, medical, drone, etc.
2. We provide a one-stop solution of antennas, coaxial cables, and plastic parts by your requirements. With our complete in-house design, R&D, testing, and manufacturing services.
3. More than 200 employees, and auto-assembly lines in the factory, no worries about the production capability.
4. By supplying our clients with high-quality products at competitive prices, we try to be all customer's partners and provide excellent services.

Contact us

Brady Mao
Dongguan Tengxiang Electronics Co., Ltd
Email: brady@txantenna.com Mob/WhatsApp/Wechat: +86-187 7157 8889 http://www.omniwifiantenna.com/
Add: No.53, Shayong Rd, Shatou community, Chang'An town, Dongguan City, Guangdong, China 523861
