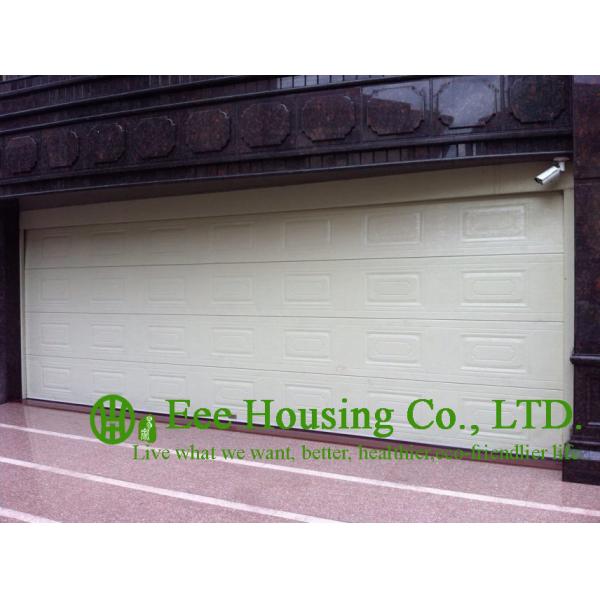

Sandwich panel galvanized steel garage door with finger protection joint design panel

Item No.

EH-6014

Material

Adopt high quality galvanized steel, polyester treated appearance has strong anti-erode capacity,

High density polyurethane foam increases the panel intensity and flat degree.

Thickness of door panel

40mm or 50mm

Thickness of Steel

0.326mm/0.35mm/0.4mm

Panel design

Finger protection design

Color

The normal color is white, can be customized

Openers

The aluminum alloy guide track,it will be durable and lower noise when it is working

Features

Galvanized Steel Sandwich Panel Garage Door
Low-noise operation
Easy installation
corrosion resistance
CE marking

Door

Type

Galvanized Sectional Garage Doors

Operation

Manual, Motor or Hand Chain

Sections

Construction

3-Layer Sandwich

Material

Galvanized Steel

Surface Texture

coating plate

Section Joint

Pinch-resistant

Section Thickness

40mm~50mm

Insulation

CFCFree Polyurethane Foam

Seals

Thermal Break, Header Seal, Section Joint Seal, Bottom Seal

Color

White

Window

Optional

Track

Type

Normal Headroom, Rear Mount Low Headroom, Front Mount Low Headroom, Lift Clearance, Vertical Lift, Incline, Contour

Finish

Galvanized or Optional White Powdercoat

Counterbalance System

Type

Torsion Spring

Springs

Spring Inner Diameter: 2-1/4", 3-1/2" or 5-1/2"; Duplex or High Cycle (25K, 50K, 100K); Optional Black Powdercoat

Shafts

Tube

Hardware/Accessories

Hinges

2.5mm plate galvanized steel

Rollers

Standard (2" or 3"), Heavy Duty (2" or 3"), or Nylon (2" or 3")

Finish

Galvanized or Optional White Powdercoat

Lock

Optional Interior Slide Lock, Exterior Keyed Lock with Chain Latch or Lock Bars

Seal

Optional Climate Seal and Jamb Seal

Hanger Angle

11, 13, 16-Gauge Galvanized or 13-Gauge White Powdercoated

Pedestrian Door

Optional
