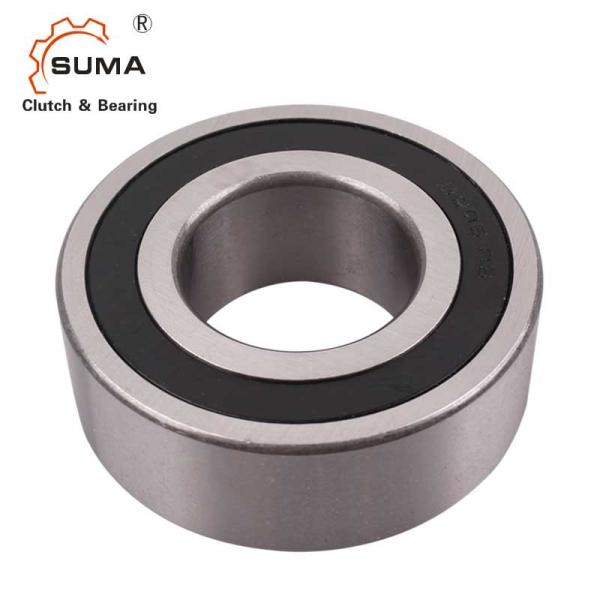

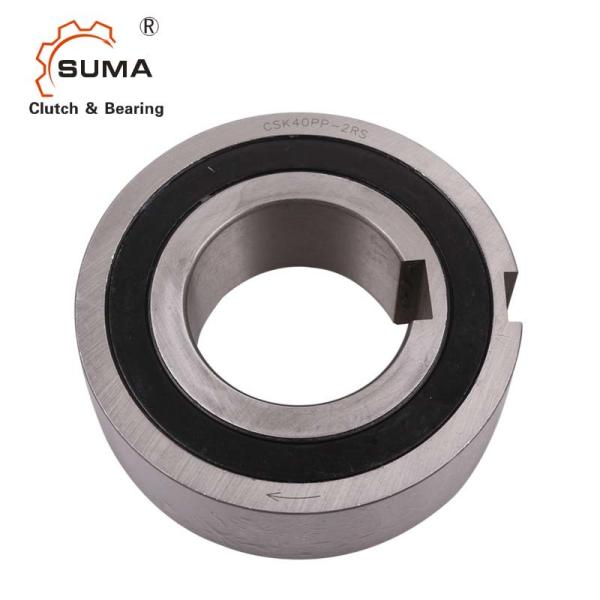

UK UK...ZZ UKCC...ZZ GCr15 Sprag Type Freewheel One Way Clutch Bearing
UK UK...ZZ UKCC...ZZ GCr15 Sprag Type Freewheel One Way Clutch Bearing
UK UK...ZZ UKCC...ZZ GCr15 Sprag Type Freewheel One Way Clutch Bearing
UK UK...ZZ UKCC...ZZ GCr15 Sprag Type Freewheel One Way Clutch Bearing
UK UK...ZZ UKCC...ZZ GCr15 Sprag Type Freewheel One Way Clutch Bearing
UK UK...ZZ UKCC...ZZ GCr15 Sprag Type Freewheel One Way Clutch Bearing
UK UK...ZZ UKCC...ZZ GCr15 Sprag Type Freewheel One Way Clutch Bearing
UK UK...ZZ UKCC...ZZ GCr15 Sprag Type Freewheel One Way Clutch Bearing
UK UK...ZZ UKCC...ZZ GCr15 Sprag Type Freewheel One Way Clutch Bearing
UK UK...ZZ UKCC...ZZ GCr15 Sprag Type Freewheel One Way Clutch Bearing
Specifications
Brand Name :
SUMA
Model Number :
UK UK..ZZ UKCC..ZZ
Certification :
ISO SGS
Place of Origin :
CHINA
MOQ :
5pcs
Price :
USD2-USD6 PER PIECE
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability :
1000PCS Per Month
Delivery Time :
3-5 Days
Packaging Details :
Carton Box
Product Name :
One Way Clutch Bearing UK UK..ZZ UKCC..ZZ
Material :
GCr15 Bearing Steel
Torque Capacity :
3300-15540Nm
Unit Weight :
0.02-0.5Kg
Warranty :
1 Year
Size :
8*22*9mm
Rotation Speed :
3000-15000RPM
OEM :
Accept
MOQ :
5-
Description

GCr15 Sprag Type Freewheel One Way Clutch Bearing

Features

The Uk..zz series is a freewheel incorporating a 62..series bearing. The self-centring freewheels are already greaselubricated and come with dust-proof protection. For the UK..ZZ model, the transmission occurs by fitting keying with n6 tolerance for shaft and n6 for the seat. The UKC..ZZ model is equipped with a keyway on the inner race and should be fitted on k6 tolerance shafts.
Seat fitting must be carried out with n6 keying tolerance. The UKCC..ZZ model is equipped with a keyway on the inner and outer race, the tolerances are h6 for the shaft and h6 for the rigid seat. the Uk..zz series is built with a c5 clearance that turns into a normal clearance after keying. The races can be glued to the shaft and the seat. In this case, the clearance remains c5.
Working temperature:
-10°C +60°C

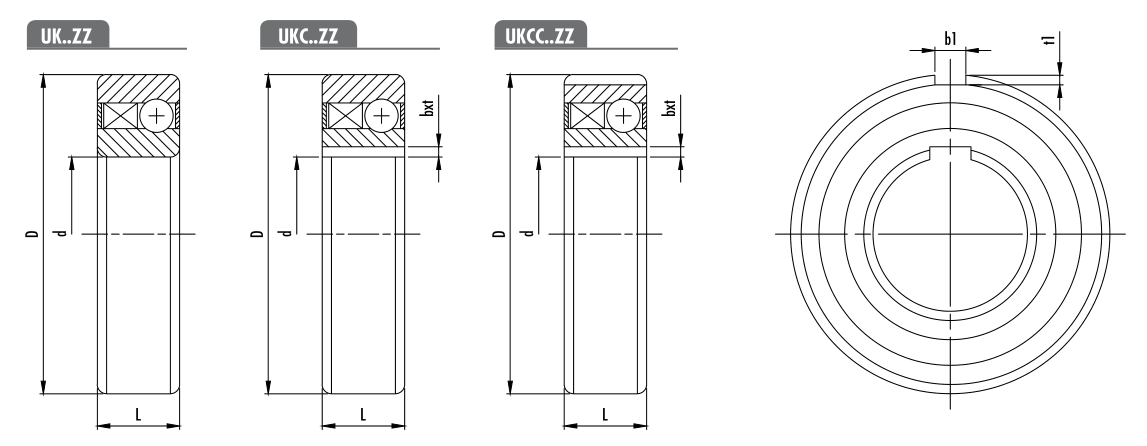

Dimensions and Capacities

UK UK...ZZ UKCC...ZZ GCr15 Sprag Type Freewheel One Way Clutch Bearing

Model d Dh5 L BJS10 t b1JS9 t1 Weight nMAX Load capacity Bearing
Series		 TN Resistance
torque
mm kg min-1 din.(N) stat.(N) Nm Nm
UK 8 ZZ 8 22 9 0.02 15000 3300 860 2.5 0.005
UK 12 ZZ 12 32 10 0.04 10000 6100 2770 6201ZZ 9.3 0.007
UK 15 ZZ 15 35 11 0.06 8400 7400 3400 6202ZZ 16.9 0.009
UK 17 ZZ 17 40 12 0.07 7350 7900 3800 6203ZZ 30.6 0.011
UK 20 ZZ 20 47 14 0.11 6000 9400 4450 6204ZZ 50 0.013
UK 25 ZZ 25 52 15 0.14 5200 10700 5450 6205ZZ 85 0.020
UK 30 ZZ 30 62 16 0.21 4200 11700 6450 6206ZZ 138 0.044
UK 35 ZZ 35 72 17 0.30 3600 12600 7250 6207ZZ 175 0.058
UK 40 ZZ 40 80 22 0.50 3000 15540 12250 325 0.070
UKC 12 ZZ 12 32 10 4 1.3 0.04 10000 6100 2770 6201ZZ 9.3 0.007
UKC 15 ZZ 15 35 11 5 1.2 0.06 8400 7400 3400 6202ZZ 16.9 0.009
UKC 17 ZZ 17 40 12 5 1.2 0.07 7350 7900 3800 6203ZZ 30.6 0.011
UKC 20 ZZ 20 47 14 6 1.6 0.11 6000 9400 4450 6204ZZ 50 0.013
UKC 25 ZZ 25 52 15 8 2 0.14 5200 10700 5450 6205ZZ 85 0.020
UKC 30 ZZ 30 62 16 8 2 0.21 4200 11700 6450 6206ZZ 138 0.044
UKC 35 ZZ 35 72 17 10 2.4 0.30 3600 12600 7250 6207ZZ 175 0.058
UKC 40 ZZ 40 80 22 12 3.3 0.50 3000 15540 12250 325 0.070
UKCC 15 ZZ 15 35 11 5 1.2 2 0.6 0.06 8400 7400 3400 6202ZZ 16.9 0.009
UKCC 17 ZZ 17 40 12 5 1.2 2 1 0.07 7350 7900 3800 6203ZZ 30.6 0.011
UKCC 20 ZZ 20 47 14 6 1.6 3 1.5 0.11 6000 9400 4450 6204ZZ 50 0.013
UKCC 25 ZZ 25 52 15 8 2 6 2 0.14 5200 10700 5450 6205ZZ 85 0.020
UKCC 30 ZZ 30 62 16 8 2 6 2 0.21 4200 11700 6450 6206ZZ 138 0.044
UKCC 35 ZZ 35 72 17 10 2.4 8 2.5 0.30 3600 12600 7250 6207ZZ 175 0.058
UKCC 40 ZZ 40 80 22 12 3.3 10 3 0.50 3000 15540 12250 325 0.070

Pictures

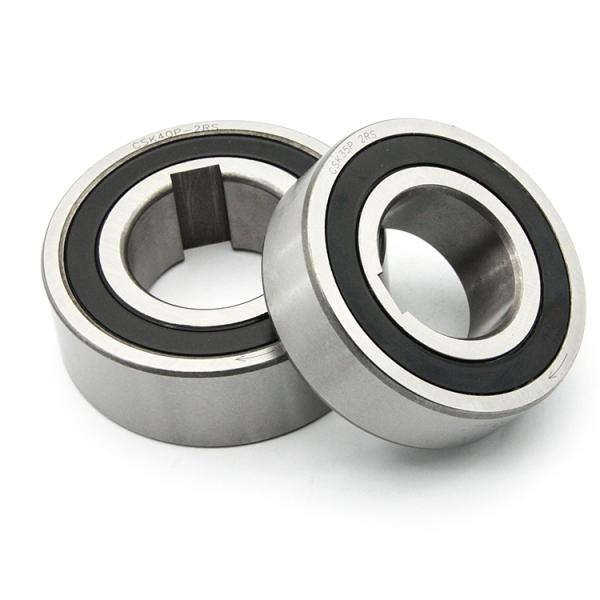

UK UK...ZZ UKCC...ZZ GCr15 Sprag Type Freewheel One Way Clutch Bearing

UK UK...ZZ UKCC...ZZ GCr15 Sprag Type Freewheel One Way Clutch Bearing

UK UK...ZZ UKCC...ZZ GCr15 Sprag Type Freewheel One Way Clutch Bearing
