Specifications
Brand Name :
SUMA
Model Number :
SF18-13.5
Certification :
ISO SGS
Place of Origin :
CHINA
MOQ :
1
Price :
USD260-USD350 PER PIECE
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability :
1000PCS Per Month
Delivery Time :
3-5 Days
Packaging Details :
Wooden Case
Product Name :
Sprag Clutch Bearing SF18-13.5
Material :
GCr15 Bearing Steel
Size :
18.8*35.47*13.5mm
Weight :
0.04Kg
Warranty :
1 Year
OEM :
Accept
Package :
Carton Box or Wooden Case
Description

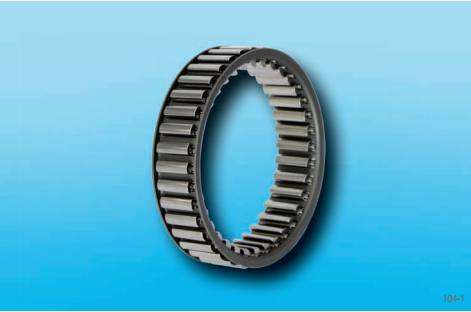

SF18-13.5 Cage Freewheels Centrifugal Sprag Clutch Bearing

Features

Cage Freewheels SF are sprag freewheels to be
installed between customer-supplied inner and
outer rings.
The freewheels SF are used as:
➧ Backstops
➧ Overrunning Clutches
➧ Indexing Freewheels
In addition to the standard type, two other
types are available for extended service life.
Nominal torques up to 93 000 Nm.

Dimension and Capacity

Freewheel Size

Type

 Nominal t orque
MN
Nm		 Type Nominal t orque
MN
Nm		 Type Nominal t orque
MN
Nm

Sprag lift-off

at outer ring

speed min-1

 J
mm		 D
mm		 B
mm		 K
mm		 Sprags Quantity Weight
kg
SF18-13,5 J 66 18,80 35,47 13,5 50 10 0,04
SF23-13,5 J 120 23,63 40,29 13,5 55 12 0,04
SF27-13,5 J 160 JT 160 JZ 100 3 600 27,78 44,42 13,5 65 14 0,05
SF31-13,5 J 170 JT 170 JZ 110 3 400 31,75 48,41 13,5 70 12 0,04
SF32-21,5 J 400 32,77 49,44 21,5 65 14 0,07
SF37-14,5 K 270 KT 270 KZ 210 2 900 37 55 14,5 75 14 0,06
SF42-21 J 720 42,10 58,76 21 85 18 0,09
SF44-14,5 K 500 KT 500 KZ 400 2 250 44 62 14,5 90 20 0,08
SF46-21 J 840 46,77 63,43 21 90 20 0,10
SF50-18,5 K 680 KT 680 KZ 580 2 250 50 68 18,5 90 20 0,10
SF56-21 J 1 050 56,12 72,78 21 100 22 0,11
SF57-18,5 K 950 KT 950 KZ 800 2 000 57 75 18,5 105 24 0,13
SF61-21 J 1 300 JT 1 300 JZ 1 150 1 550 61,91 78,57 21 110 26 0,14
SF72-23,5 K 2 100 KT 2 100 KZ 1 850 1 550 72 90 23,5 135 32 0,23
SF82-25 K 2 300 KT 2 300 KZ 2 100 1 450 82 100 25 140 36 0,26
SF107-25 K 3 300 KT 3 300 KZ 3 100 1 300 107 125 25 170 48 0,35
SF127-25 K 4 900 KT 4 900 KZ 4 600 1 200 127 145 25 210 56 0,40
SF140-50 S 13 600 ST 13 600 SZ 10 500 950 140 180 50 260 24 1,70
SF140-63 S 18 000 ST 18 000 SZ 14 000 800 140 180 63 260 24 2,00
SF170-50 S 17 000 ST 17 000 SZ 13 500 880 170 210 50 290 28 1,95
SF170-63 S 23 000 ST 23 000 SZ 18 500 720 170 210 63 290 28 2,40
SF200-50 S 23 000 ST 23 000 SZ 18 500 820 200 240 50 325 36 2,50
SF200-63 S 29 000 ST 29 000 SZ 23 500 680 200 240 63 325 36 3,10
SF230-63 S 37 000 ST 37 000 SZ 29 500 650 230 270 63 360 45 3,90
SF270-50 S 35 000 ST 35 000 SZ 29 500 720 270 310 50 410 48 3,40
SF270-63 S 44 000 ST 44 000 SZ 37 000 600 270 310 63 410 48 4,20
SF340-50 S 45 000 ST 45 000 SZ 43 000 640 340 380 50 510 60 4,20
SF340-63 S 67 500 ST 67 500 SZ 57 500 540 340 380 63 510 60 5,20
SF380-50 S 57 000 ST 57 000 SZ 48 500 610 380 420 50 550 63 4,40
SF440-63 S 93 000 ST 93 000 SZ 80 000 470 440 480 63 640 72 6,20

The theoretical nominal torque applies only for ideal concentricity between the inner and outer ring.

The maximum transmissible torque is 2 times the specified nominal torque. See page 14 for determination of selection torque.

SF18-13.5 Cage Freewheels Centrifugal Sprag Clutch Bearing

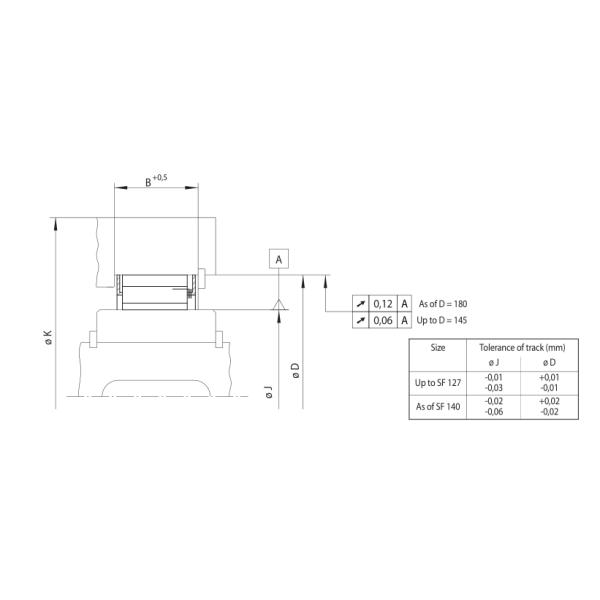

Mounting

The lateral guidance of the Cage Freewheels can be effected either by a shoulder on the outer ring or by guard rings or guard discs which are fixed in the outer ring. Torque transmission capacity can be increased if several cages are arranged side by side. In this case please consult with RINGSPANN on transmissible torques. Please note the technical points on page 118regarding the sprag tracks.

Example for ordering
Freewheel size SF 44-14,5, standard type:
• SF 44-14,5 K
