GN130 Roller Freewheel Sprag Backstop Bearing
GN130 Roller Freewheel Sprag Backstop Bearing
GN130 Roller Freewheel Sprag Backstop Bearing
GN130 Roller Freewheel Sprag Backstop Bearing
GN130 Roller Freewheel Sprag Backstop Bearing
GN130 Roller Freewheel Sprag Backstop Bearing
GN130 Roller Freewheel Sprag Backstop Bearing
GN130 Roller Freewheel Sprag Backstop Bearing
Specifications
Brand Name :
SUMA
Model Number :
GN130
Certification :
ISO SGS
Place of Origin :
CHINA
MOQ :
1 PC
Price :
USD300-USD400PER PIECE
Payment Terms :
L/C, D/A, D/P, T/T, Western Union,Paypal
Supply Ability :
2000 PCS PER MONTH
Delivery Time :
7-15 Days
Packaging Details :
Wooden Box
Product Name :
Sprag Backstop Clutch GN130
Material :
Bearing Steel GCr15
Structure :
Roller Type
Bore Diameter :
130MM
Application :
Reducer / Gearbox
Port :
ShangHai / NingBo
Weight :
120Kg
OEM :
Accept
Description

GN130 Roller Freewheel Sprag Backstop Bearing GN Backstop Clutch.pdf

Feature of Backstop Bearing

GN series backstop clutch is a kind of low speed of roller type plugging device,often with reducer,used in

belt conveyor,hoist,electric drum, and other need a non-return device.

Non-return quickly ,small reverse distance,long life , can withstand the torque.

Technical Datas of Backstop Bearing

Item GN130
Material GCr15
Bore dia. 130 mm
Outer dia. 175 mm
Width 170 mm
Torque capacity 13700 N.m
Weight 120 kg
Package Carton box, wooden box or as your requirements

Dimension and Capacity of Backstop Bearing

Type Torque Bore Dia. Max. Size Weight Recommended Suitable Reducer
TKN ødH7 bxt C L B C1 B1 H H1 D1 kg
N.m mm mm mm mm mm mm mm mm mm mm
GN110 6770 110 32X6.7 400 450 140 90 140 160 310 ø21 89.4 ZQ650
ZQ750
GN130 13700 130 36X7.4 430 480 170 120 180 175 340 120 ZQ850
GN140 13700 140 36X7.4 430 480 170 120 190 175 340 105 ZQ85
GN150 22800 150 40X8.7 510 580 190 170 230 215 420 ø26 186 ZQ1000
GN170 22800 170 40X8.7 510 580 190 170 250 215 420 182 ZL100
GN200 47600 200 45X9.9 590 660 220 210 290 275 540 ø32 352 ZL115
GN220 47600 220 50X11.2 590 660 220 210 290 275 540 339 ZL130

GN130 Roller Freewheel Sprag Backstop Bearing

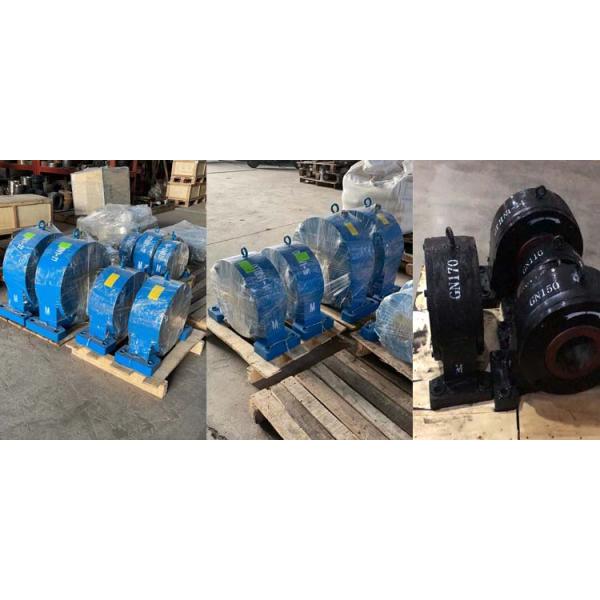

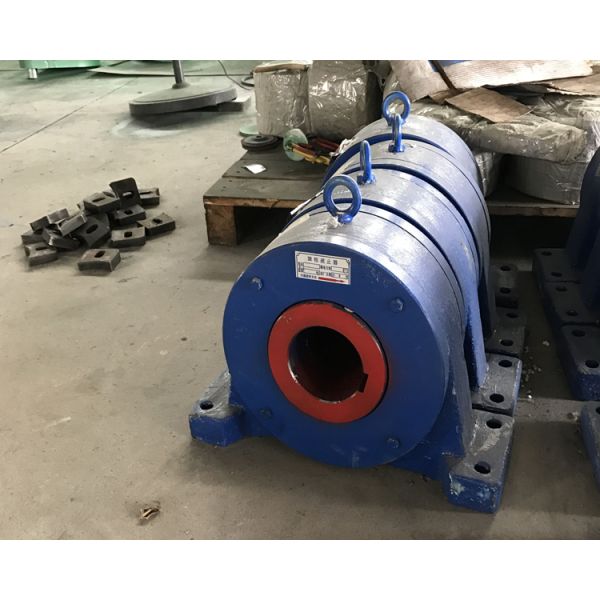

Picture of GN Backstop Bearing

GN130 Roller Freewheel Sprag Backstop Bearing

GN130 Roller Freewheel Sprag Backstop Bearing

GN Backstop Bearing Application

GN130 Roller Freewheel Sprag Backstop Bearing
