IR Series Inner Rings Drawn Cup Needle Bearing
IR Series Inner Rings Drawn Cup Needle Bearing
IR Series Inner Rings Drawn Cup Needle Bearing
IR Series Inner Rings Drawn Cup Needle Bearing
IR Series Inner Rings Drawn Cup Needle Bearing
IR Series Inner Rings Drawn Cup Needle Bearing
IR Series Inner Rings Drawn Cup Needle Bearing
IR Series Inner Rings Drawn Cup Needle Bearing
Specifications
Brand Name :
SUMA
Model Number :
IR5
Certification :
ISO SGS
Place of Origin :
CHINA
MOQ :
10
Price :
USD0.3-USD1 PER PIECE
Payment Terms :
L/C, D/A, D/P, T/T, Western Union,Paypal
Supply Ability :
100000 PCS PER MONTH
Delivery Time :
3-5 Days
Packaging Details :
Roll pack + Carton Box
Product Name :
Needle Roller Bearing IR5
Outer race material :
ST14
Needle Material :
GCr15
Bore Range :
5mm
OD Range :
7mm
Thickness Range :
10mm
OEM :
Accept
Description

One Way Inner Rings ST14 10MM Drawn Cup Needle Bearing

Features

· IR series inner rings

· are the standard inner rings for needle roller bearings

· are hardened and ground

· have a precision ground raceway surface with a lead-in chamfer on both sides

· The chamfers facilitate assembly and protect the seal lips from damage during the mounting process.

· are available in some sizes with a lubrication hole .

· Inner rings with additional lubrication holes are available on request.

· are available on request with a pre-ground raceway and a machining allowance.

· They can be finish ground after mounting on a shaft in applications where extremely tight geometrical tolerances are required.

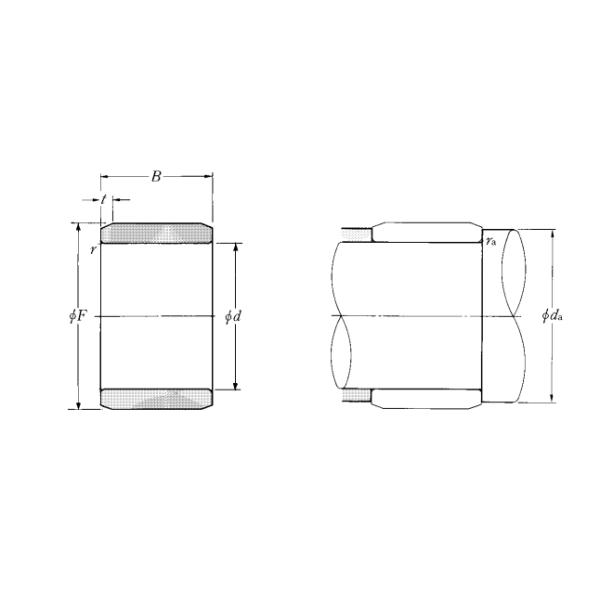

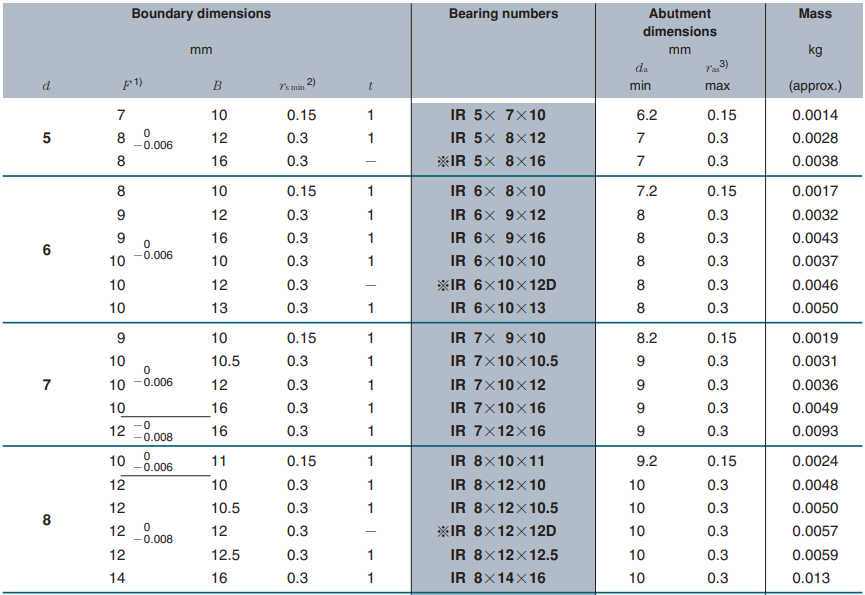

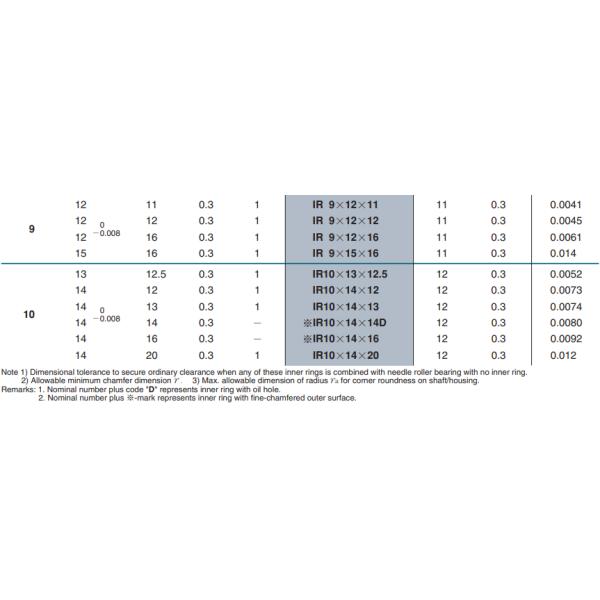

Dimensions and Capacities

IR Series Inner Rings Drawn Cup Needle Bearing

Available bore size range from 5- 80mm .

IR Series Inner Rings Drawn Cup Needle Bearing

IR Series Inner Rings Drawn Cup Needle Bearing

Pictures

IR Series Inner Rings Drawn Cup Needle Bearing
