RIZ30 9000RPM Freewheels 1 Directional Roller Bearing Clutch
RIZ30 9000RPM Freewheels 1 Directional Roller Bearing Clutch
RIZ30 9000RPM Freewheels 1 Directional Roller Bearing Clutch
RIZ30 9000RPM Freewheels 1 Directional Roller Bearing Clutch
RIZ30 9000RPM Freewheels 1 Directional Roller Bearing Clutch
RIZ30 9000RPM Freewheels 1 Directional Roller Bearing Clutch
RIZ30 9000RPM Freewheels 1 Directional Roller Bearing Clutch
RIZ30 9000RPM Freewheels 1 Directional Roller Bearing Clutch
Specifications
Brand Name :
SUMA
Model Number :
RIZ30 RINZ30
Certification :
ISO SGS
Place of Origin :
CHINA
MOQ :
1
Price :
USD98-USD130 PER PIECE
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability :
1000PCS Per Month
Delivery Time :
7-10 Days
Packaging Details :
Carton Box
Product Name :
Cam Clutch Bearing RIZ30 RINZ30
Material :
GCr15 Bearing Steel
Unit Weight :
2.3Kg
Size :
30*100*68mm
Warranty :
1 Year
Overrunning speed :
9000RPM
Torque Capacity :
375Nm
OEM :
Accept
Description

RIZ30 9000RPM Freewheels 1 Directional Roller Bearing Clutch

Feature

Types RIZ, RINZ are centrifugal lift off sprag type freewheels with the inner race rotating. Suitable for backstop, or overrunning clutch applications. Only the inner race is designed for freewheeling.
These units are part of the Stieber modular system. They are bearing supported using series 60.. bearings, grease lubricated and fitted with ZZ seals. Units are delivered as standard lubricated with grease and ready to install in either a horizontal or vertical position. Types RIZ, RINZ are designed to be used with G series covers. The following pages give further inportant information for use of this type unit.
If the unit is to be installed inside a housing where oil lubrication is available, please specify type RIW, RIWN. The F series covers from type GFR, GFRN are then used without shaft seals.

Dimensions and Capacities

RIZ30 9000RPM Freewheels 1 Directional Roller Bearing Clutch

Type Size

　

 Speeds

　

 Number

　

 Weight
RIZ
RINZ		 dH7 TKN1) nmax2) nimin3) nimax4) Dh7 z L 1 L t
[mm] [Nm] [min-1 ] [min-1 ] [min-1 ] [mm] [mm] [mm] [mm] [kg]
30 375 290 700 9000 100 6 68 43 10 2.3
35 550 280 670 8500 110 6 74 45 12 3.2
40 800 260 630 7500 125 6 86 53 14 4.8
45 912 255 610 6700 130 8 86 53 14 5
50 1400 235 560 6000 150 8 94 64 14 7.5
60 2350 210 510 5300 170 10 114 78 16 12.7
70 3050 195 470 4000 190 10 134 95 16 14.5
80 5800 155 375 4000 210 10 144 100 16 19
90 8700 145 350 3000 230 10 158 115 20 29.5
100 16000 140 340 2400 270 10 182 120 24 42.5
130 23000 130 320 2400 310 12 212 152 24 70

NOTES
1) T max = 2 × T KN » Refer to Selection page 10 to 13
2) This maximum allowable torque transmission speed n max must not be exceeded when transmitting torque
3) This minimum allowable overrunning speed n imin should not be reduced under continuous operation. Possible reduction of this minimum speed on request
4) Inner race overruns Keyway to DIN 6885.1 » Refer to mounting and maintenance instructions

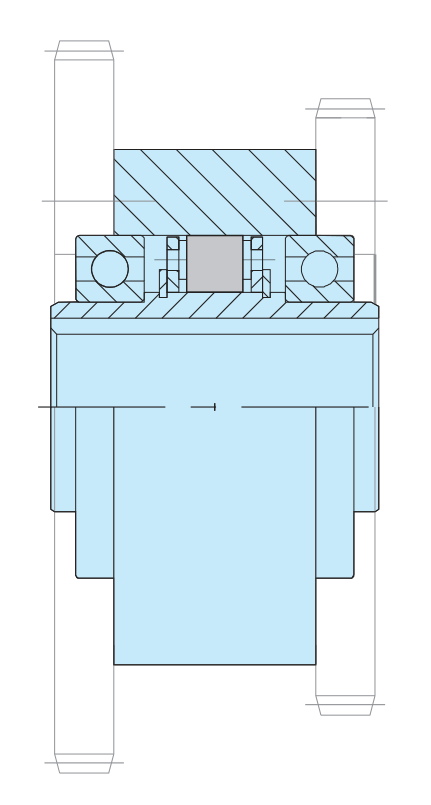

Mounting Example
RIZ30 9000RPM Freewheels 1 Directional Roller Bearing Clutch

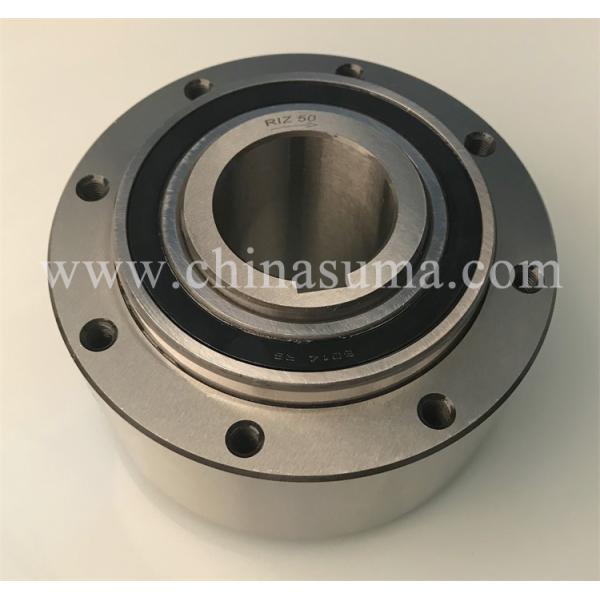

Pictures
RIZ30 9000RPM Freewheels 1 Directional Roller Bearing Clutch
RIZ30 9000RPM Freewheels 1 Directional Roller Bearing Clutch
