KI164 1Way Sprag Freewheel Custom Bearing Fabrication
KI164 1Way Sprag Freewheel Custom Bearing Fabrication
KI164 1Way Sprag Freewheel Custom Bearing Fabrication
KI164 1Way Sprag Freewheel Custom Bearing Fabrication
KI164 1Way Sprag Freewheel Custom Bearing Fabrication
KI164 1Way Sprag Freewheel Custom Bearing Fabrication
KI164 1Way Sprag Freewheel Custom Bearing Fabrication
KI164 1Way Sprag Freewheel Custom Bearing Fabrication
Specifications
Brand Name :
SUMA
Model Number :
KI164
Certification :
ISO SGS
Place of Origin :
CHINA
MOQ :
1
Price :
USD10-USD20 PER PIECE
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability :
1000PCS Per Month
Delivery Time :
3-5 Days
Packaging Details :
Carton Box
Product Name :
One Way Clutch Bearing KI164
Torque Capacity :
0.8-2.9Nm
Rotation Speed :
6000-10000RPM
Unit Weight :
0.008-0.019Kg
Warranty :
1 Year
Size :
4*16*10mm
Material :
GCr15 Bearing Steel
OEM :
Accept
Description

KI164 1Way Sprag Freewheel Custom Bearing Fabrication

Features

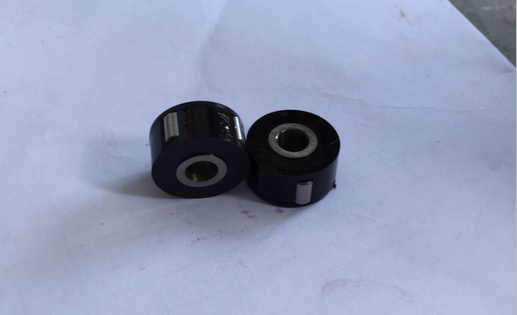

Type KI is a roller type freewheel. It is an assembly comprising of an inner race and rollers fitted into a polyamide cage. This type of unit can not be dismantled. It is designed for small mechanisms in office equipment, or packaging machines, to be mounted inside gears or feed

rollers.

The gear or feed roller inner diameter is used as the outer race. Additional bearing support is required, and the freewheel must not be subjected to axial loading; mounting examples are shown on the following page. The outer race does not need to be hardened; min. strength: 700 N/mm2

The surface roughness will not exceed 22 CLA.Mounting onto the shaft can be a press fit to r6 tolerance or a glue fit with a clearance of 0,02 to 0,05mm.

Sizes 8 mm and above can be supplied with a keyway.Temperature range: –40°C to +100°C (continuous operation).Peak temperatures of +120°C are acceptable for short periods of time.

Technical Datas

Product name One Way Clutch Bearing KI164
Model KI164
Material GCr15
Inner diameter 4mm
Outer diameter 16mm
Thickness 10mm
Torque capacity 0.8Nm
Inner race overrunning speed 1000r/min
Outer race overrunning speed 8000r/min
Weight 0.008kg
Structure Roller type
Application Textile machine, fans, ventilators, printing machine
Package Carton Box, Wooden Box or Customized
Payment terms TT. L/C, D/A,D/P,Western Union, Paypal
Delivery time 2-4 days for the sample, 7 days for big order

Diamensions and Capacities

KI164 1Way Sprag Freewheel Custom Bearing Fabrication

Type

Size

 Inner Diameter

TKN1)

(Nm)

Overrunning speed

 Outside Diameter

L1

(mm)

L

(mm)

Weight

KI

dH7

(mm)

Nimax2)

(min-1)

Namax3)

(min-1)

DH7

(mm )

(kg)
164 4 0.8 8000 10000 16 10 9 0.008
165 5 0.8 8000 10000 16 10 9 0.007
194 4 0.9 7000 9000 19 10 9 0.012
195 5 0.9 7000 9000 19 10 9 0.011
196 6 0.9 7000 9000 19 10 9 0.010
268* 8 2.9 5000 6000 26 14 13 0.023
269* 9 2.9 5000 6000 26 14 13 0.021
2610* 10 2.9 5000 6000 26 14 13 0.019

NOTES

1) T max = 2 × T KN

» Refer to Selection page 10 to 13

*) Can be also supplied with a keyway to DIN 6885.1

2) Inner race overruns

3) Outer race overruns

Mounting and Coupling

KI164 1Way Sprag Freewheel Custom Bearing Fabrication

PICTURES
KI164 1Way Sprag Freewheel Custom Bearing Fabrication
