CCFH-S CCFH-SB Series Crowned Heavy Duty Cam Follower CCFH-3/4-SB
CCFH-S CCFH-SB Series Crowned Heavy Duty Cam Follower CCFH-3/4-SB
CCFH-S CCFH-SB Series Crowned Heavy Duty Cam Follower CCFH-3/4-SB
CCFH-S CCFH-SB Series Crowned Heavy Duty Cam Follower CCFH-3/4-SB
CCFH-S CCFH-SB Series Crowned Heavy Duty Cam Follower CCFH-3/4-SB
CCFH-S CCFH-SB Series Crowned Heavy Duty Cam Follower CCFH-3/4-SB
Specifications
Brand Name :
SUMA
Model Number :
CCFH-3/4-SB
Certification :
ISO SGS
Place of Origin :
CHINA
MOQ :
10PCS
Price :
USD3-USD5 PER PIECE
Payment Terms :
L/C, D/A, D/P, T/T, Western Union,Paypal
Supply Ability :
100000 PCS PER MONTH
Delivery Time :
2-3Days
Packaging Details :
Carton Box / Wooden Box
Product Name :
Heavy Duty Cam Follower CCFH-3/4-SB
Material :
Bearing Steel GCr15
Outer Race Surface :
Crowned
Package :
Each in plastic bag + Carton Box
Warranty :
6 Months
Port :
ShangHai / NingBo
OEM :
Accept
Description

CCFH-S CCFH-SB Series Crowned Heavy Duty Cam Follower CCFH-3/4-SB

Features of Heavy Duty Cam Follower

CCFH-1-B Crowned With Hex Hole Heavy duty cam follower
CCFH-1-SB Crowned Seald and Hex Hole Heavy duty cam follower

The typical functions of a cam follower are to provide anti-friction support of linear movement or to follow the surface of a cam.

SUMA Stud Cam Follower was designed to withstand the intermittent shock, loading and precision requirements associated with these applications.

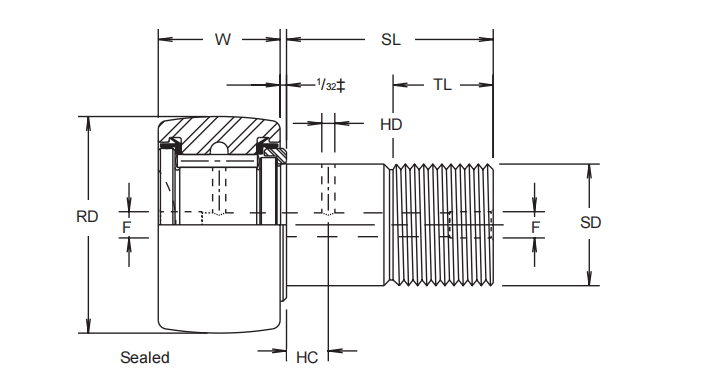

Technical Datas of Heavy Duty Cam Follower

CCFH-S CCFH-SB Series Crowned Heavy Duty Cam Follower CCFH-3/4-SB

INSEALED
BRG.
NO.		 ROLLER
DIA
(RD)		 ROLLER
WIDTH
(W)		 STUD
DIA
(SD)		 STUD
LENGTH
(SL)		 MIN.
THREAD
LENGTH
(TL)		 FINE
THREAD		 OIL HOLE LUS
FITTING
SIZE
(F)		 RRCOM.
CL AMPING
TORQUE
LSS.
IN		 MAX
STATIC
CAPACITY
LSS.		 SASIC
DYN.
RATING
LSS.
HOLE
CENTER
(HC)		 HOLE
DIA(HD)
CCFH-1/2-S 0.500 0.375 0.250 5/8 1/4 1/4-28 35 1580 680
CCFH-9/16-S 0.5625 0.375 0.250 5/8 1/4 1/4-28 35 1580 680
CCFH-5/8-S 0.625 0.4375 0.3125 3/4 5/16 5/16-24 90 2480 955
CCFH-11/16-S 0.6875 0.4375 0.3125 3/4 5/16 5/16-24 90 2480 955
CCFH-3/4-S 0.750 0.500 0.4375 7/8 3/8 7/16-20 1/4 3/32 3/16 250 4130 1660
CCFH-7/8-S 0.875 0.500 0.4375 7/8 3/8 7/16-20 1/4 3/32 3/16 250 4130 1660
CCFH-1-S 1.000 0.625 0.625 1 1/2 5/8-18 1/4 3/32 3/16 650 6120 2225
CCFH-1 1/8-S 1.1250 0.625 0.625 1 1/2 5/8-18 1/4 3/32 3/16 650 6120 2225
CCFH-1 1/4-S 1.250 0.750 0.750 1 1/4 5/8 3/4-16 5/16 3/32 3/16 1250 8500 3930
CCFH-1 3/8-S 1.375 0.750 0.750 1 1/4 5/8 3/4-16 5/16 3/32 3/16 1250 8500 3930
CCFH-1 1/2-S 1.500 0.875 0.875 1 1/2 3/4 7/8-14 3/8 3/32 3/16 1500 11280 4840
CCFH-1 5/8-S 1.625 0.875 0.875 1 1/2 3/4 7/8-14 3/8 3/32 3/16 1500 11280 4840
CCFH-1 3/4-S 1.750 1.000 1.000 1 3/4 7/8 1-14 7/16 3/32 3/16 2250 15840 6385
CCFH-1 7/8-S 1.875 1.000 1.000 1 3/4 7/8 1-14 7/16 3/32 3/16 2250 15840 6385
CCFH-2-S 2.000 1.125 1.125 2 1 1 1/8-12 1/2 1/8 3/16 2800 21140 8090
CCFH-2 1/4-S 2.250 1.125 1.125 2 1 1 1/8-12 1/2 1/8 3/16 2800 21140 8090
CCFH-2 1/2-S 2.500 1.250 1.250 2 1/4 1 1/8 1 1/4-12 9/16 1/8 3/16 3450 32900 11720
CCFH-2 3/4-S 2.750 1.250 1.250 2 1/4 1 1/8 1 1/4-12 9/16 1/8 3/16 3450 32900 11720
CCFH-3-S 3.000 1.500 1.500 2 1/2 1 1/4 1 1/2-12 5/8 1/8 1/4 5000 49820 15720
CCFH-3 1/4-S 3.250 1.500 1.500 2 1/2 1 1/4 1 1/2-12 5/8 1/8 1/4 5000 49820 15720
CCFH-3 1/2-S 3.500 1.750 1.750 2 3/4 1 3/8 1 3/4-12 11/16 1/8 1/4 5000 63250 22800
CCFH-4-S 4.000 2.000 2.000 3 1/2 1 1/2 2-12 3/4 1/8 1/4 5000 89540 29985

Application of Heavy Duty Cam Follower

Food and Beverage Packaging equipment Unit material handling
Auto Plants Oil Drilling Steel Mills
Texitiles / Printing Automation equipment Machine Tools

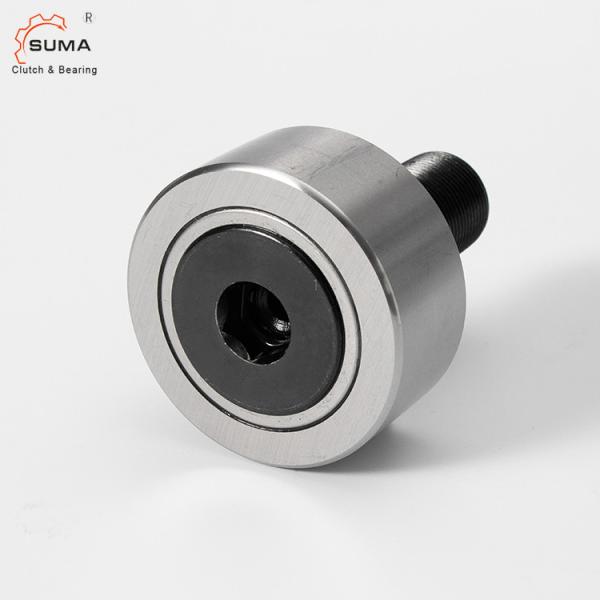

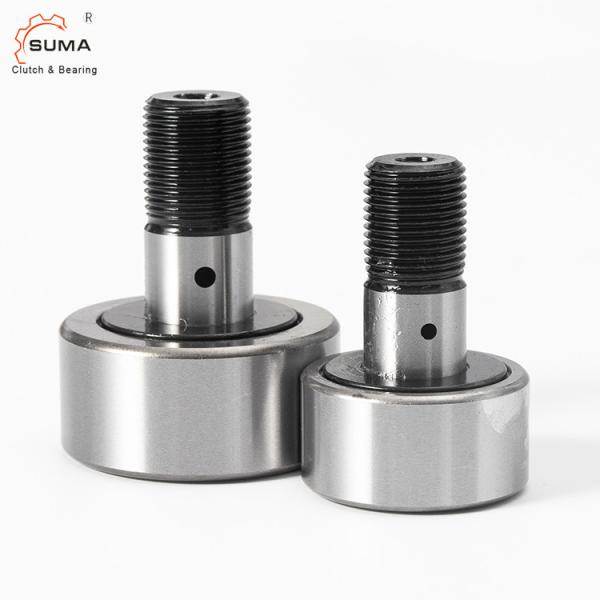

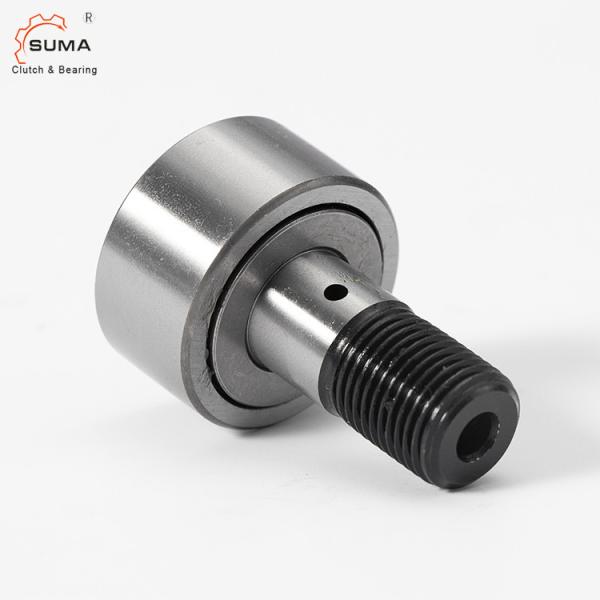

Pictures of Heavy Duty Cam Follower
CCFH-S CCFH-SB Series Crowned Heavy Duty Cam Follower CCFH-3/4-SB

CCFH-S CCFH-SB Series Crowned Heavy Duty Cam Follower CCFH-3/4-SB

FAQ

Q: How do you pack the cam follower ?

  • Total less than 25 KG : Each in plastic bag + 29*28*19CM carton box
  • Total Weight over 100KG : Each in plastic bag + 29*28*19CM carton box + Wooden Box / Wooden Pallet

Q: Can i get the samples from you?

A: It is highly encouraged to ask for the samples for quality check.

Q: Can you promise to deliver the goods in time?

  • Small Quantity: In stock.
  • Medium Items: 5-7 Days
  • Big items: 10-15 Days
