Outer Ring Compact Type Cam Follower CFS4V CFS4A CFS4V-A
Outer Ring Compact Type Cam Follower CFS4V CFS4A CFS4V-A
Outer Ring Compact Type Cam Follower CFS4V CFS4A CFS4V-A
Outer Ring Compact Type Cam Follower CFS4V CFS4A CFS4V-A
Outer Ring Compact Type Cam Follower CFS4V CFS4A CFS4V-A
Outer Ring Compact Type Cam Follower CFS4V CFS4A CFS4V-A
Specifications
Brand Name :
SUMA
Model Number :
CFS4V CFS4A CFS4V-A
Certification :
ISO SGS
Place of Origin :
CHINA
MOQ :
10PCS
Price :
USD3.2-USD4PER PIECE
Payment Terms :
L/C, D/A, D/P, T/T, Western Union,Paypal
Supply Ability :
100000 PCS PER MONTH
Delivery Time :
3-5 Days
Packaging Details :
Carton Box / Wooden Box
Product Name :
Cam Follower Bearings CFS4V CFS4A CFS4V-A
Material :
Bearing Steel GCr15
Outer Race Surface :
Cylindrical
Package :
Each in plastic bag + Carton Box
Warranty :
6 Months
Port :
ShangHai / NingBo
OEM :
Accept
Description

Outer Ring Compact Type Cam Follower CFS4V CFS4A CFS4V-A

Technical Datas

Cam Followers are bearings with a stud incorporating needle rollers in a thick walled outer ring. These bearings are designed for outer ring rotation,and have superior rotational performance with a small coefficient of friction.

Also, Cam Followers are designed to have minimal radial internal clearance to increase the loading zone, reducing the effect of shock loads and ensure stable long life.
·Miniature Type
·CFSV Series

Category Cam Followers Roller Type Cylindrical Outer Ring
Outer Diameter D(Ø) 8 Outer Ring Width C(mm) 5
Thread(mm) M4×0.7 Fastening Methods Hex Socket on Head Side Only
Material Carbon Steel Roller Lining No
Cam Follower Type Standard Stud With Stud
Unit Metric System Roller Guiding Method Full Roller Type
Basic Dynamic Load Rating(kN) 2.35 Basic Static Load Rating(kN) 3.04
Sealing Structure Without Seal Track Load Capacity(kN) 0.77
Dedicated Grease Fitting Included No Max. Allowable Load(kN) 0.78

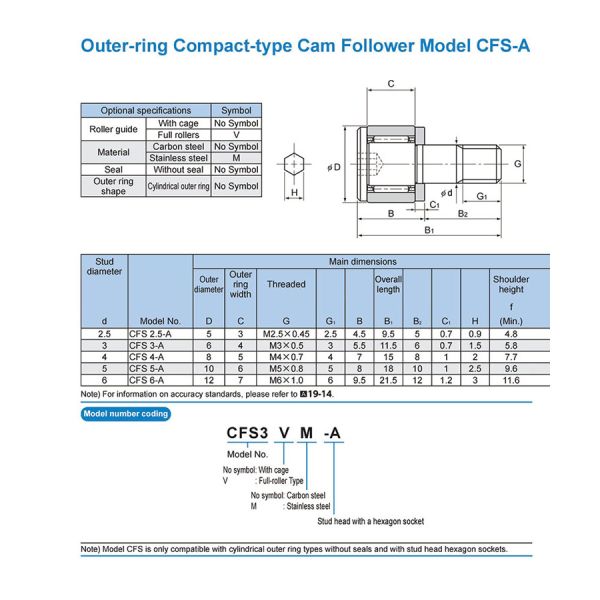

Dimensions and Capacities
Outer Ring Compact Type Cam Follower CFS4V CFS4A CFS4V-A

Outer Ring Compact Type Cam Follower CFS4V CFS4A CFS4V-A
