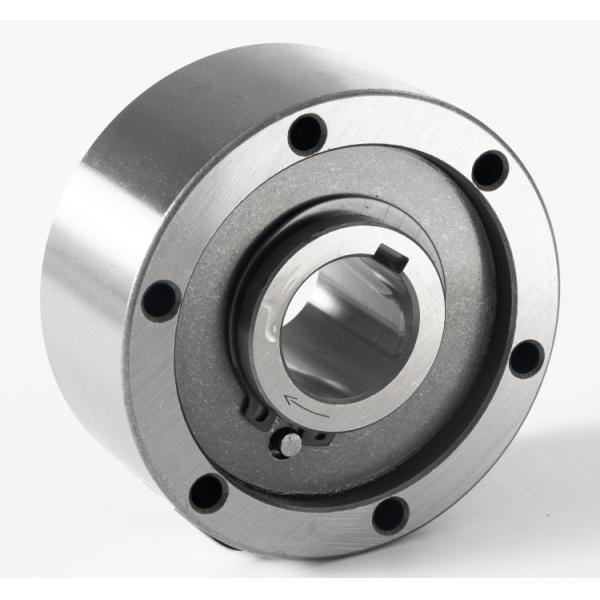

AA60 GC-D60170 Roller Type One Way Freewheel Indexing Clutch
AA60 GC-D60170 Roller Type One Way Freewheel Indexing Clutch
AA60 GC-D60170 Roller Type One Way Freewheel Indexing Clutch
AA60 GC-D60170 Roller Type One Way Freewheel Indexing Clutch
AA60 GC-D60170 Roller Type One Way Freewheel Indexing Clutch
AA60 GC-D60170 Roller Type One Way Freewheel Indexing Clutch
AA60 GC-D60170 Roller Type One Way Freewheel Indexing Clutch
AA60 GC-D60170 Roller Type One Way Freewheel Indexing Clutch
Specifications
Brand Name :
SUMA
Model Number :
AA60 GC-D60170
Certification :
ISO SGS
Place of Origin :
CHINA
MOQ :
5pcs
Price :
USD170-USD190PER PIECE
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability :
1000PCS Per Month
Delivery Time :
10-15 Days
Packaging Details :
Carton Box
Product Name :
Indexing Clutch AA60
Material :
GCr15 Bearing Steel
Torque Capacity :
3500Nm
Rotation Speed :
800RPM
Unit Weight :
9.2Kg
Warranty :
1 Year
Size :
60*170*78mm
OEM :
Accept
MOQ :
5-
Description

AA60 GC-D60170 Roller Type One Way Freewheel Indexing Clutch

Features

Type AA is a roller type freewheel non-bearing supported. Bearings are required to support axial and radial loads. Lubrication and sealing must also be provided by the installation.

Standard lubrication is oil.

The inner race is keyed to the shaft. The fit for centering of the outer race must be to H7 tolerance.

Connection of the outer race is via through bolts to grade 10.9 or better.

This design can accept an axial misalignment of inner and outer race of ± S/2.

Technical Datas

SPECIFICATION
Model AA60 / GC-D60170
Material GCr15
Inner diameter 60mm
Outer diameter 170mm
Thickness 78mm
Torque capacity 3500Nm
Drag Torque 240Ncm
Inner race overrunning speed 800r/min
Outer race overrunning speed 1100r/min
Weight 0.7kg
Structure Roller type
Application Textile machine, fans, ventilators, printing machine
Package Carton Box, Wooden Box or Customized
Payment terms TT. L/C, D/A,D/P,Western Union, Paypal
Delivery time 2-4 days for the sample, 7 days for big order

Dimensions and Capacities

Size TK1 Overrunning speeds Weight

Drag

torque
dH7 Nimax2) Namax3) Dh7 D5 D6 D3 Z O L f s (kg) TR
(mm) (Nm ) (min-1) (min-1) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (Ncm)
12 17 3100 6000 47 28 20 38 3 5.5 20 0.5 4.5 0.21 0.7
15 55 2300 5400 55 37 26 45 3 5.5 30 0.8 4.5 0.44 3.5
20 146 2000 3600 68 50 35 58 4 5.5 34 0.8 5.5 0.7 8.4
25 285 1700 2600 90 68 45 7 6 5.5 37 1 6.5 1.3 14
30 500 1500 2100 100 75 50 87 6 6.6 44 1 6.5 2 23
35 720 1300 1950 110 80 55 96 6 6.6 48 1 6.5 2.6 60
40 1030 1200 1700 125 90 60 108 6 9 56 1.5 7.6 3.9 72
45 1125 1050 1500 130 95 65 112 8 9 56 1.5 7.6 4 140
50 2150 950 1300 150 110 75 132 8 9 63 1.5 7.6 6 180
55 2675 850 1200 160 115 82 138 8 11 67 2 7.6 7.2 190
60 3500 800 1100 170 125 90 150 10 11 78 2 7.6 9.2 240
70 5813 650 900 190 140 100 165 10 11 95 2.5 7.6 11.8 320

NOTES

1) T max = 2 × T KN
2) Inner race overruns
3) Outer race overruns
Keyway to DIN 6885.1

Mounting and Coupling

Pictures

AA60 GC-D60170 Roller Type One Way Freewheel Indexing Clutch

AA60 GC-D60170 Roller Type One Way Freewheel Indexing Clutch

AA60 GC-D60170 Roller Type One Way Freewheel Indexing Clutch

Q: How do you pack the goods?

  • Total less than 25 KG : Each in white box + 19*18*9cm box + 29*28*19CM carton box
  • Total Weight over 100KG : Carton box + Wooden Box / Wooden Pallet

Q: Can i get the samples from you?

A: It is highly encouraged to ask for the samples for quality check.

Q: Can you promise to deliver the goods in time?

  • Small items: In stock.
  • Medium Items: 10-15 Days
  • Big items: 20-25 Days
