Specifications
Brand Name :
SUMA
Model Number :
GVG35
Certification :
ISO SGS
Place of Origin :
CHINA
MOQ :
1
Price :
USD120-USD150 PER PIECE
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability :
1000PCS Per Month
Delivery Time :
7-10 Days
Packaging Details :
Carton Box
Product Name :
Backstop Clutch GV45 GV50
Material :
GCr15 Bearing Steel
Torque Capacity :
2180Nm
Rotation Speed :
300RPM
Unit Weight :
5.8Kg
Warranty :
1 Year
Size :
45*155*54 mm / 50*155*54mm
OEM :
Accept
Description

GVG35 GVG 35 One Way Clutch Backstop Clutch Sprag Clutch Bearings 606Nm


Features of GVG35 backstop clutch

GVG series freewheels are with sprags cages, centering between the inner race and outer race is carried out by means of bushes.

the torque forces are transmitted from the shaft to the inner race by means of a key.

Shaft tolerance must be h6 .

When the freewheel is used as a non return device, the lever fixed to the outer race must be sandwiched between two brackets; otherwise a pin must be inserted

in the looped hole. When locked to the frame of a machine, it stops the freewheel rotating

the bushes, the lever must be given a certain amount of clearance to allow for the axial movement.

the freewheel is supplied already greased .


Dimensions and Capacities of GVG35 backstop clutch

GVG35 GVG 35 One Way Clutch Backstop Clutch Sprag Clutch Bearings 606Nm

Model

dH7

mm

D

mm

L

mm

B1

mm

L1

mm

b2

mm

I2

mm

I3

mm

I4

mm

Weight

kg

 Max Speed

Torque

Nm
GVG20 20 106 48 40 15 18 35 10.5 113 2.5 400 606
GVG25 25 106 48 40 15 18 35 10.5 113 2.4 400 606
GVG30 30 106 48 40 15 18 35 10.5 113 2.3 400 606
GVG35 35 106 48 40 15 18 35 10.5 125 2.2 400 606
GVG40 40 132 52 60 15 18 35 10 125 4 300 1295
GVG45 45 132 52 60 15 18 35 10 125 3.8 300 1295
GVG50 50 132 52 60 15 18 35 10 125 3.7 300 1295
GVG55 55 132 52 60 15 18 35 10 125 3.5 300 1295
GVG60 60 161 54 70 15 18 35 10 140 6.1 250 2550
GVG70 70 161 54 70 15 18 35 10 140 5.7 250 2550
GVG80 80 190 70 70 20 25 45 15 165 10.2 200 4875
GVG90 90 190 70 70 20 25 45 15 165 9.6 200 4875

1)Tmax: 2x Tn

Kyey DIN 6885

2)Maximum allowed speed

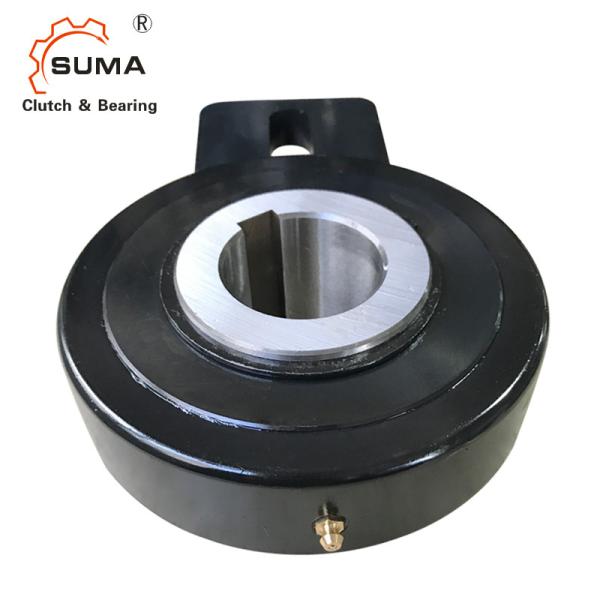

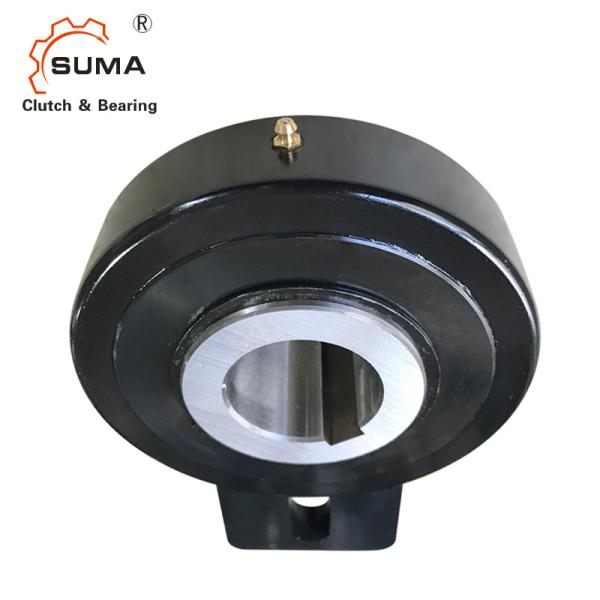

Pictures of GVG35 backstop clutch
GVG35 GVG 35 One Way Clutch Backstop Clutch Sprag Clutch Bearings 606Nm
