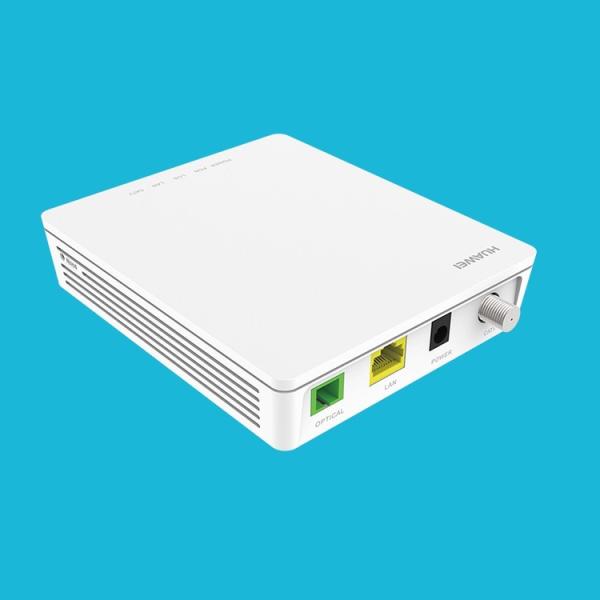

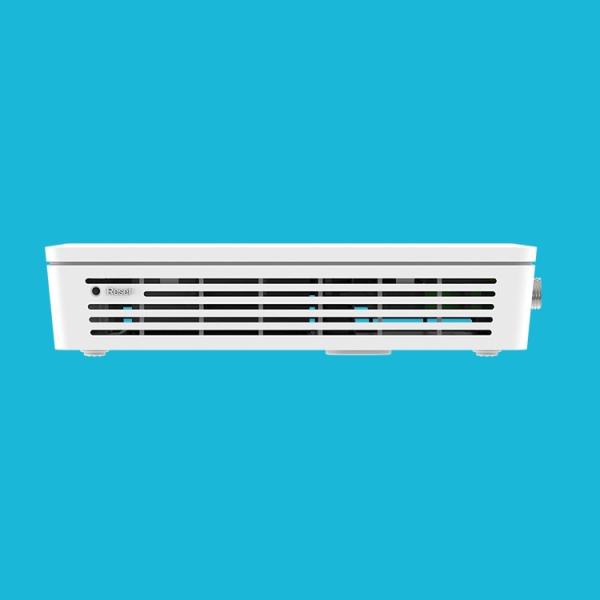

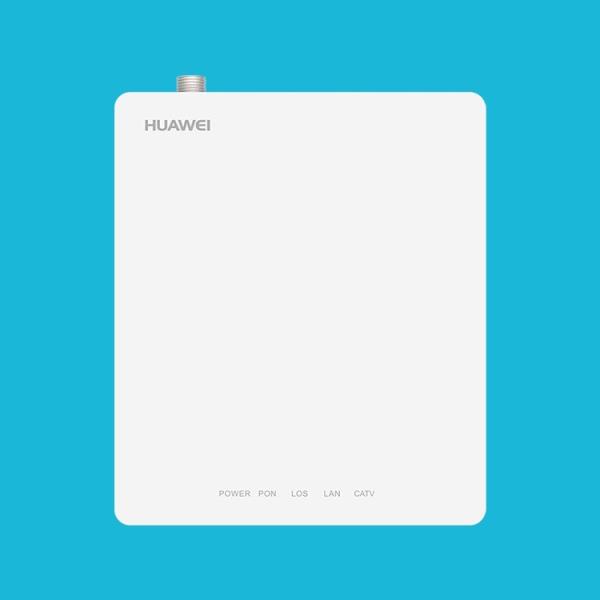

HG8012H XPON ONT
HG8012H XPON ONT
HG8012H XPON ONT
HG8012H XPON ONT
HG8012H XPON ONT
HG8012H XPON ONT
Specifications
Brand Name :
HUAWEI
Model Number :
HG8012H
Certification :
Rosh CE
Place of Origin :
China
MOQ :
1000
Price :
15-20us$
Payment Terms :
T/T, Western Union
Supply Ability :
10000pcs/month
Delivery Time :
15-20days
Packaging Details :
Carton paper box
Products description :
1GE CATV XPON ONT
Color :
White
Downlink :
1000MB
Power adapter :
EU,US,UK,AU
Power supply :
12V 0.5V
PON TYPE :
XPON
Description

HG8012H XPON ONT

Ftth HG8012H Gpon 1ge catv XPON Ont Onu 1ge 1fe Rf Onu Wdm Fiber Router Modem Network Unit

ONT Manufacture FTTH 1GE CATV GPON ONU with RF (GPON and EPON dual mode) HGU ONU. It is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTO (office), FTTD (desk), FTTH (home) broadband access and CATV, video surveillance and other requirements. It is based on Gigabit XPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. ONT Manufacture FTTH 1GE ZTE CATV GPON ONU with RFis fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah and technical requirement of GPON/EPON Equipment from China Telecom. Small size dual mode ONU can automatically detect OLT and switch PON mode, it can be used as GPON or EPON.FTTH Fiber Optic Equipment 1GE+CATV GPON ONU WITH RF PTF2331 can also be applied to a wide temperature environment, and also has a powerful firewall function.

Features: (ONT Manufacture FTTH 1GE CATV GPON ONU with RF)

Ø XPON HGU ONU, bridging and routing modes can be set

Ø Dual mode ONU compatible with popular EPON and GPON OLT

Ø Support loop detection, IGMP, IGMP snooping

Ø 802.1Q VLAN, QinQ, Cos, DSCP, QoS for priority of service

Ø Support port speed, support for storm suppression

Ø Triple Solution Data, Voip and Cable TV(RF bandwidth:45~1000MHz, AGC function)

Ø Support Telnet, CLI, OMCI/OAM and Web management

Ø Support NAT, Firewall function

Ø Support remote software upgrade

Specificatio

Items Unit Specifications
PON standard. EPON IEEE802.3ah, GPON ITU-T G.984.x
Optical interface SC/PC connector,1 GPON/EPON interface(EPON PX20+ and GPON Class B+)Receiving sensitivity: ≤-28dBmTransmitting optical power: 0~+4dBmTransmission distance: 20KM
Speed Gbps GPON: uplink 1.25Gbps, downlink 2.5Gbps; EPON: symmetric 1.25Gbps
Wavelength nm Tx1310, Rx 1490, CATV 1550
Interface data

1*10/100/1000Mbps

Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors
Indicator LED POWER,LOS,PON,LAN,CATV
Operating condition ℃ Operating temp: -5 ~ +55
Storing condition ℃ Storing temp: -30 ~ +60
Humidity % 10~90(non-condensing)
Power supply V DC 12V,0.5A adapter
Power consumption W ≤6
Dimension mm 111×92×30(L×W×H)
Net weight Kg 0.13

HG8012H XPON ONT
