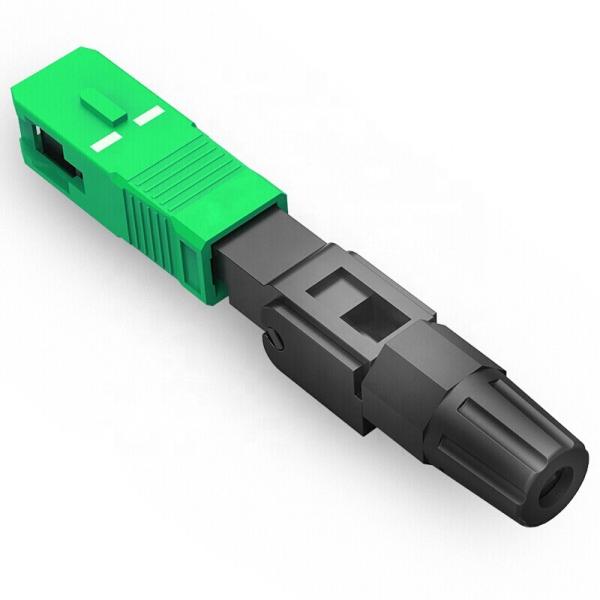

SC 45dB UPC 55dB APC Green FTTH Fast Connector Type B Cold Connector
SC 45dB UPC 55dB APC Green FTTH Fast Connector Type B Cold Connector
Specifications
Supply Ability :
10000pcs/Week
Payment Terms :
T/T,Western Union
Model NO. :
type B
Application :
Fiber Distribution Frame, Network Equipment, Fiber Module
Light Source TYPE :
Laser
Connector Type :
SC-PC
Brand :
OEM
Polishing :
Upc/APC
Trademark :
OEM
Transport Package :
Carton Box
Specification :
50mm 60mm optional
Origin :
China
HS Code :
85367000
Port :
Shenzhen, China
Transmission Medium :
Single-Mode
Structure :
SC
Number of Cores :
Single-Core
Ferrule Endface :
PC(UPC)
Shape :
Square
Fabrication Process :
Cold Pressing
Place of Origin :
China
Certification :
CE ROHS Anatel
MOQ :
50pcs
Price :
Negociatable
Packaging Details :
Carton Box
Delivery Time :
7-15days
Description

Sc Upc Blue FTTH Fast Connector Cold Connector

Field assembly FTTH SC fiber optic quick connector

Field installation connector can be assembled easily and quickly in the field with no fusion device or special tool. To reduce cable waste, the drop cable connector can be repeatedly used for 5 times. The fiber mating alignment and gripping technology include a factory-polished zirconia ferrule, which improve durability and provide a reliable, low-loss fiber termination. The kit can be separately ordered. It contains strip and cut tool, cleaver, and cleaning paper.

Feature
  1. Pre-treated fiber in the ferrule, no fusion and polishing
  2. Stable optical performance and reliable environmental performance
  3. length is less than 50.5mm

Specification

Insertion loss Main≤0.25dB Max.≤0.40dB
Return loss UPC≥45dB APC≥55
Tensile △IL<0.3dB @ 30N
Cable 3.0X2.0mm Drop cable
Operating Wavelength 1310&1550nm
Average assembly time 1 min
Assembly success rate ≥97%
Re-assembly >5 times
Durability >500 times
Temperature -40ºC~+85ºC,96h,insertion Variation<0.3dB
Standard Telcordia GR-326-Core:2010 and IEC 61754-4:2002
Humidity 95%
Operating temp. -40ºC~+80ºC
Storage temp. -40ºC~+80ºC
