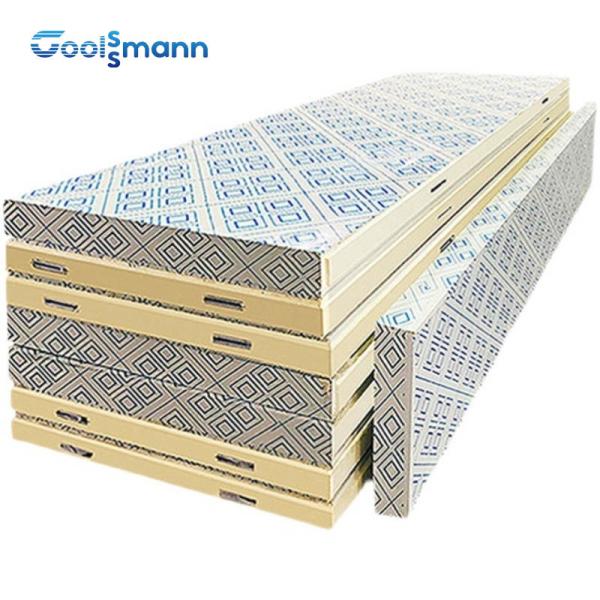

Cold Storage PU Sandwich Panel , Warehouse Assembly Polyurethane Foam Board
Cold Storage PU Sandwich Panel , Warehouse Assembly Polyurethane Foam Board
Specifications
Brand Name :
Coolssmann Corporation
Model Number :
Cold room
Certification :
CE、RoHS、ISO、CCC、CCC、CB、SASO、EMC、GS、ETL
Place of Origin :
China Shangdong Qingdao
MOQ :
2
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,
Supply Ability :
2000
Delivery Time :
15-25weekday
Packaging Details :
Synthetic wood packaging
Aspect :
Custom
Surface pattern :
Plain, corrugated, embossed, embossed
Combustion characteristic :
Polyurethane B1-B3 grade
Apply :
Cold room/clean room/warehouse
Model number :
Polyurethane sandwich board
Product name :
PU polyurethane foam sandwich board
Description

Commercial Warehouse Assembly Board Polyurethane Foam Board Cold Storage

Product Features

1. Energy saving and cost saving
2. Moisture proof and waterproof
3. Ligh quality imported raw materials
4. Fireproof and high-temperature resistant
5. Excellent corrosion and weather resistance
6. Anti freezing and thawing, sound absorption
7. Uniform foaming of polyurethane: fully automatic production line.
8. Strong adhesion: steel plate and polyurethane foam never separate.
9. Low breathability: The black sealing strip is double strengthened.

10. Fireproof, sound-absorbing, and user-friendly polyurethane with excellent waterproof performance
11. PU sandwich board is composed of two layers of steel plates and polyurethane between the two layers
12. There are five different thicknesses of polyurethane cold storage boards: 50mm, 75mm, 100mm, 150mm, 200mm

Product Table

Item Data Description
Thermal conductivity ≦0.023w/m.k The thermal conductivity is very low, 5cm thick cold storage plate is equivalent to 100cm thick concrete insulation effect
Core material High level 40-47kg/m3
Obturator rate Above 97% Waterproof and moisture-proof, no increase in thermal conductivity due to moisture absorption, and no water seepage on the wall
Thickness Custom made 20-300mm
Weather ability Lasting After more than 6 months of weather resistance test, the performance is stable
Stability Excellent The compressive strength is over 180kp, and the temperature resistance of the plate is good, without deformation
Flame retardant property Excellent According to the inspection of the national fire protection building material quality supervision and testing center, all quality changes have reached gb8624b1, which is a thermosetting material. The alkene is burned and carbonized into ashes, and it can be extinguished without dripping or spreading
Environment friendly Excellent After high-pressure foaming, the Polyurethane insulated panel for cold storage conforms to the European environmental protection standard, free of formaldehyde and microbial attack

Thickness parameter

Thickness of polyurethane panel Application temperature
50mm Temperature 5℃ or above
75mm Temperature -5℃ or above
100mm Temperature -15℃ or above
120mm Temperature -25℃ or above
150mm Temperature -35℃ or above
200mm Temperature -45℃ or above

Product Details Selling Points

1.The foaming layer is made of thickened polyurethane, fast refrigeration and strong heat preservation.

Cold Storage PU Sandwich Panel , Warehouse Assembly Polyurethane Foam Board

2.Waterproof and moisture-proof

Cold Storage PU Sandwich Panel , Warehouse Assembly Polyurethane Foam Board

3.The library board is divided into ceiling, corner, wall, and eccentric hook connections

Cold Storage PU Sandwich Panel , Warehouse Assembly Polyurethane Foam Board
