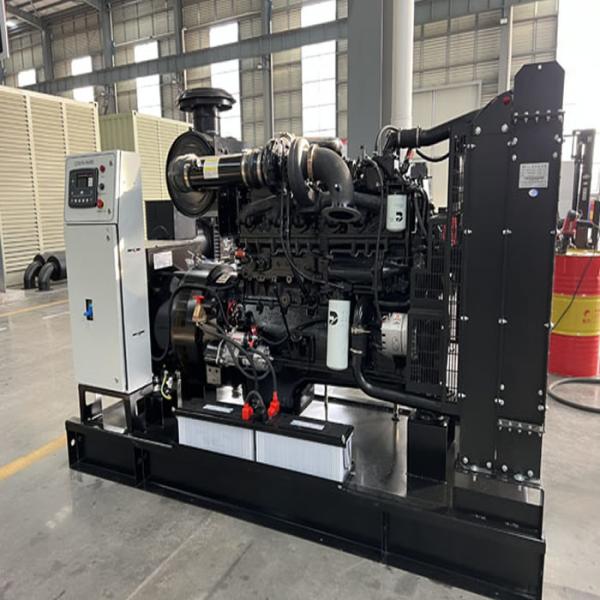

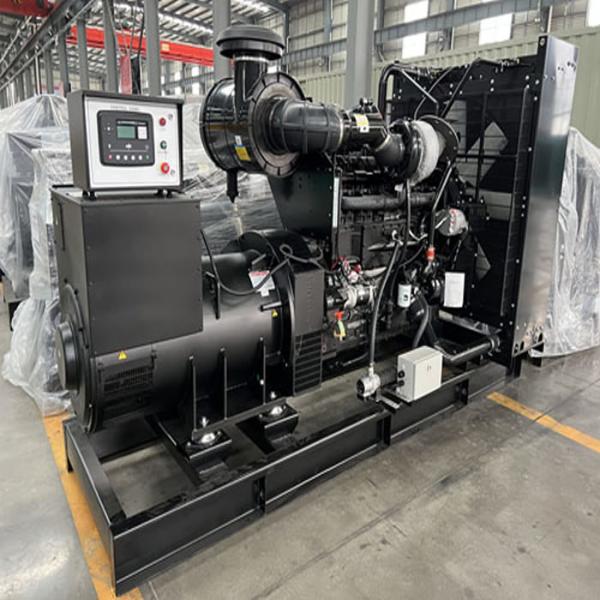

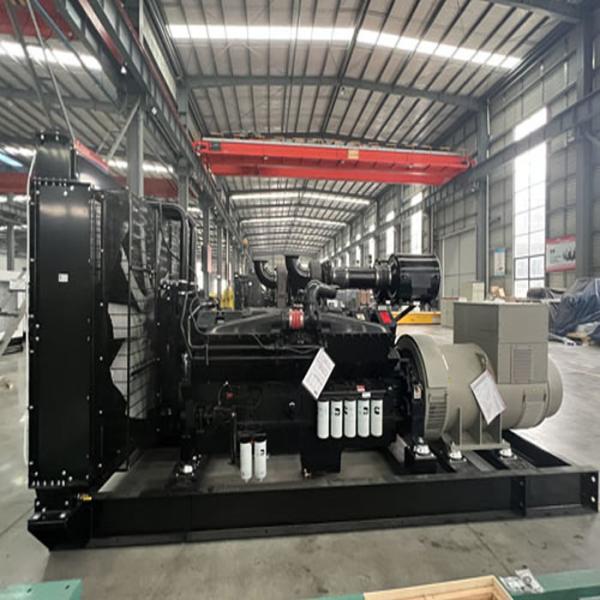

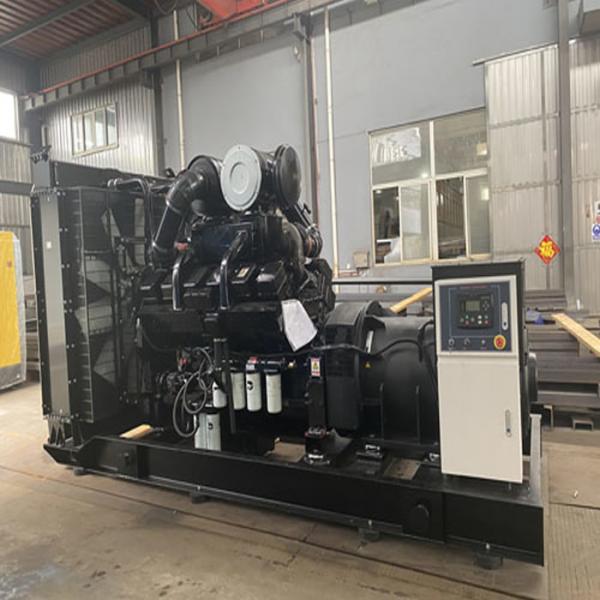

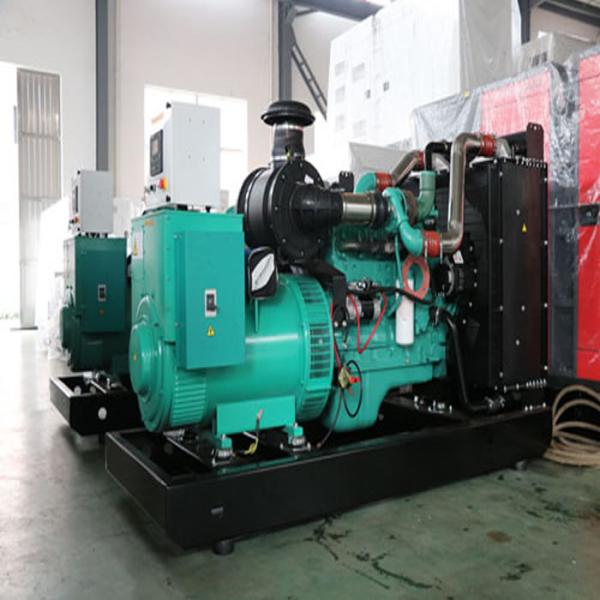

3phase Cummins Diesel Standby Generator 220V With Marathon Alternator
3phase Cummins Diesel Standby Generator 220V With Marathon Alternator
3phase Cummins Diesel Standby Generator 220V With Marathon Alternator
3phase Cummins Diesel Standby Generator 220V With Marathon Alternator
3phase Cummins Diesel Standby Generator 220V With Marathon Alternator
3phase Cummins Diesel Standby Generator 220V With Marathon Alternator
3phase Cummins Diesel Standby Generator 220V With Marathon Alternator
3phase Cummins Diesel Standby Generator 220V With Marathon Alternator
3phase Cummins Diesel Standby Generator 220V With Marathon Alternator
3phase Cummins Diesel Standby Generator 220V With Marathon Alternator
3phase Cummins Diesel Standby Generator 220V With Marathon Alternator
3phase Cummins Diesel Standby Generator 220V With Marathon Alternator
Specifications
Brand Name :
GJ Power
Model Number :
GJ-200 to 2200GF
Certification :
ISO, CE. UL
Place of Origin :
Hebei, China
MOQ :
1 set
Price :
USD10000-60000/SET
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
500 sets per month
Delivery Time :
7 to 10 days
Packaging Details :
packed with plastic film, or packed in plywood box
Diesel Engine :
Cummins
Alternator :
Stamford, Marathon, Evo Tec
Power Range :
from 200 KW to 2200 KW
Type :
open type, container type, silent type, trialer type
Frequency :
50 HZ or 60 HZ
Speed :
1500 RPM or 1800 RPM
Output type :
AC Three Phase
Controller :
FORTRUST, SmartGen, ComAp, Deepsea
Color :
green, blue, yellow, orange, custom color
Options :
ATS, Container, trialer, silent
Packing :
Packing with plastic film or packing in plywood carton
Advantage :
trusted famous brand, simple control, high stability and reliability, low fuel consumption, easy maintenance, advanced emission technology, universal design, and excellent environmental adaptability
Manuals :
Operation manual, Maintenance Manual Available
Description

1800rpm 60hz, Cummins Generator Set with Marathon Alternator 220V , 3phase

Standard configuration for Cummins Diesel Generator Set 1800rpm 60hz 220V

  • Cummins Engine and Stamford Alternator
  • Water cooled radiator, the fans driven by belt, with safety shield.
  • 24 V Battery charging Alternator
  • Alternator:Single bearing Alternator,IP23 Grading Protection, H Insulation degree
  • Shock absorber
  • Dry air filter,Fuel filter,Oil filter
  • Power output circuit breaker
  • DEEPSEA, Smartgen, control panel(LCD display)
  • 12 V battery and battery connection cables
  • Exhaust pipe,Corrugated shock tube,flange,Muffler set
  • Maintenance manuals
  • Lubrication System

Sales commitment

The products that we provide are all new, each unit all get through the strict production testing.

12 months or 1000 hours(whichever occurs first) of Warranty Time for all our products. We take the full responsibility only in the fault that created by the quality, the wearing-parts, daily consumables and human error of operating & maintenance are not included in.

Criterion

  • GB/T19001-2008
  • SO9001:2008 Quality Control System
  • CE CERTIFICATE

Cummins Diesel Generator Set 1800rpm 60hz 220V to export Philippines.

3phase Cummins Diesel Standby Generator 220V With Marathon Alternator3phase Cummins Diesel Standby Generator 220V With Marathon Alternator3phase Cummins Diesel Standby Generator 220V With Marathon Alternator

3phase Cummins Diesel Standby Generator 220V With Marathon Alternator3phase Cummins Diesel Standby Generator 220V With Marathon Alternator3phase Cummins Diesel Standby Generator 220V With Marathon Alternator3phase Cummins Diesel Standby Generator 220V With Marathon Alternator3phase Cummins Diesel Standby Generator 220V With Marathon Alternator3phase Cummins Diesel Standby Generator 220V With Marathon Alternator3phase Cummins Diesel Standby Generator 220V With Marathon Alternator

Technical Data for all series CUMMINS DIESEL GENERATOR

Dongfeng Cummins Engine Co., Ltd. is a modern medium and heavy engine manufacturing company jointly established by Dongfeng Motor Co., Ltd. and Cummins Inc. Of USA. These generator sets of DCEC series adopt B, C and L engine series of DCEC, power coverage 24 KW - 450 KW. Each series of products has features of simple control, high reliability, long maintenance cycle, advanced emission technology, universal design, and excellent environmental adaptability, and consequently has received popular praise from dealers and end users at domestic and abroad.

Technical Parameter of Generator Sets of DCEC series

Generator Set Model Generator Set Power Current

Engine

Model

Cylinder

Quantity

 Bore * Stroke Exhaust Volume Lube Oil Capacity

Fuel

Consumption

 Open Type Size Weight
KW KVA A MM L L G/KWH MM KG
DCEC Diesel Engine Series ( National Standard 2 )
GJ - 24GF 24 30 43 4B3.9 - G2 4 102*120 3.9 11 228 1650*720*1200 710
GJ - 30GF 30 37.5 54 4BT3.9 - G2 4 102*120 3.9 11 212 1700*720*1200 800
GJ - 40GF 40 50 72 4BTA3.9 - G2 4 102*120 3.9 11 212 1800*750*1200 850
GJ - 50GF 50 62.5 90 4BTA3.9 - G2 4 102*120 3.9 11 212 1800*750*1200 950
GJ - 64GF 64 80 115 4BTA3.9 - G11 4 102*120 3.9 11 206 1850*800*1300 1000
GJ - 80GF 80 100 144 6BT5.9 - G2 6 102*120 5.9 16 212 2150*800*1200 1070
GJ - 100GF 100 120 180 6BTA5.9 - G2 6 102*120 5.9 16 211 2200*820*1320 1100
GJ - 120GF 120 150 216 6BTAA5.9 - G2 6 102*120 5.9 16 208 2350*820*1200 1200
GJ - 132GF 132 165 238 6BTAA5.9 - G12 6 102*120 5.9 16 207 2300*830*1300 1350
GJ - 150GF 150 187.5 270 6CTA8.3 - G2 6 114*135 8.3 28 212 2390*900*1350 1465
GJ - 180GF 180 225 324 6CTAA8.3 - G2 6 114*135 8.3 24 205 2500*950*1500 1650
GJ - 200GF 200 250 360 6LTAA8.9 - G2 6 114*145 8.9 28 197 2560*980*1640 1890
GJ - 220GF 220 275 396 6LTAA8.9 - G3 6 114*145 8.9 28 195 2600*970*1500 2000
GJ - 250GF 250 312.5 450 6LTAA9.5 - G3 6 116.5*148 9.5 32 193 2700*1100*1550 2100
GJ - 280GF 280 350 504 6LTAA9.5 - G1 6 116.5*148 9.5 32 199 2760*1130*1580 2100
GJ - 350GF 350 437.5 630 6ZTAA13 - G2 6 130*163 13 45 189 2900*1200*1750 3000
GJ - 400GF 400 500 720 6ZTAA13 - G4 6 130*163 13 45 189 3200*1360*1950 3000
GJ - 400GF 400 500 720 QSZ13 - G2 6 130*163 13 45 189 3150*1370*1900 3150
GJ - 450GF 450 562.5 810 QSZ13 - G3 6 130*163 13 45 191 3150*1370*1900 3250

Generator Set Model Generator Set Power Current

Engine

Model

Cylinder

Quantity

 Bore * Stroke Exhaust Volume Lube Oil Capacity

Fuel

Consumption

 Open Type Size Weight
KW KVA A MM L L G/KWH MM KG
DCEC Diesel Engine Series ( National Standard 3 )
GJ - 50GF 50 62.5 90 QSB3.9 - G2 4 102*120 3.9 11 220 1750*850*1350 950
GJ - 68GF 68 85 122 QSB3.9 - G3 4 102*120 3.9 11 212 1800*900*1400 960
GJ - 90GF 90 112.5 162 QSB5.9 - G2 6 102*120 5.9 16 217 2160*800*1300 1050
GJ - 120GF 120 150 216 QSB5.9 - G3 6 102*120 5.9 16 213 2200*800*1300 1100
GJ - 132GF 132 165 238 QSB6.7 - G3 6 107*124 6.7 20 208 2300*850*1300 1400
GJ - 150GF 150 187.5 270 QSB6.7 - G4 6 107*124 6.7 20 213 2300*850*1300 1450
GJ - 180GF 180 225 324 QSL8.9 - G2 6 114*145 8.9 28 216 2640*970*1450 2000
GJ - 200GF 200 250 360 QSL8.9 - G3 6 114*145 8.9 28 210 2650*1050*1450 2250
GJ - 220GF 220 275 396 QSL8.9 - G4 6 114*145 8.9 28 204 2650*1050*1450 2350
GJ - 320GF 320 400 576 QSZ13 - G6 6 130*163 13 75 207 2850*1050*1450 2750
GJ - 350GF 350 437.5 630 QSZ13 - G7 6 130*163 13 75 209 2950*1050*1450 2850

Generator Sets of CCEC Series

3phase Cummins Diesel Standby Generator 220V With Marathon Alternator


Chongqing Cummins Engine Co., Ltd. is a Sino-US joint venture, established in October 1995. Its product technology, manufacturing technology, and application technology has synchronized with Cummins Inc. USA. Engines made by CCEC has advantages of high reliability, outstanding durability, economical fuel consumption, small size, high power, large torque, large reverse of torque, and excellent universality of parts, etc. Power range 175 KW - 2200 Horse Power.

Technical Parameter of Generator Sets of CCEC Series

Generator Set Model Generator Set Power Current

Engine

Model

Cylinder

Quantity

 Bore * Stroke Exhaust Volume Lube Oil Capacity

Fuel

Consumption

 Open Type Size Weight
KW KVA A MM L L G/KWH MM KG
CCEC Diesel Engine Series ( National Standard 2 )
GJ - 200GF 200 250 360 MTA11 - G2 6 125*147 10.8 37 196 2800*1050*1550 2100
GJ - 200GF 200 250 360 NT855 - GA 6 140*152 14 38 191 3000*1050*1650 2600
GJ - 250GF 250 312.5 450 NTA855 - G1A 6 140*152 14 38 193 3100*1150*1680 2650
GJ - 280GF 280 350 504 MTAA11 - G3 6 125*147 11 38 185 2870*1150*1550 2700
GJ - 280GF 280 350 504 NTA855 - G1B 6 140*152 14 38 209 3100*1000*1700 2850
GJ - 300GF 300 375 540 NTA855 - G2A 6 140*152 14 38 191 3050*1150*1700 3000
GJ - 320GF 320 400 576 NTA855 - G4 6 140*152 14 38 197 3150*1040*1900 3100
GJ - 320GF 320 400 576 NTAA855 - G7 6 140*152 14 38 207 3200*1050*1900 3150
GJ - 350GF 350 437.5 630 NTAA855 - G7A 6 140*152 14 38 200 3300*1250*1900 3200
GJ - 400GF 400 500 720 KTA19 - G3 6 159*159 19 50 205 3500*1300*1950 3755
GJ - 450GF 450 562.5 810 KTA19 - G3A 6 159*159 19 50 202 3500*1380*1980 3890
GJ - 450GF 450 562.5 810 KTA19 - G4 6 159*159 19 50 202 3500*1380*1980 3890
GJ - 480GF 480 600 864 KTAA19 - G6 6 159*159 19 50 216 3400*1520*2100 3900
GJ - 500GF 500 625 900 KTA19 - G8 6 159*159 19 50 209 3500*1380*1980 3900

Generator Set Model Generator Set Power Current

Engine

Model

Cylinder

Quantity

 Bore * Stroke Exhaust Volume Lube Oil Capacity

Fuel

Consumption

 Open Type Size Weight
KW KVA A MM L L G/KWH MM KG
CCEC Diesel Engine Series ( National Standard 3 )
GJ - 220GF 220 275 396 QSNT - G6 6 140*152 14 39 214 3100*1050*1750 2900
GJ - 250GF 250 312.5 450 QSNT - G7 6 140*152 14 39 214 3100*1050*1750 2900
GJ - 280GF 280 350 504 QSNT - G1 6 140*152 14 39 215 3150*1100*1800 2950
GJ - 320GF 320 400 576 QSNT - G2 6 140*152 14 39 210 3200*1100*1800 3000
GJ - 350GF 350 437.5 630 QSNT - G3 6 140*152 14 39 204 3200*1150*1950 3060
GJ - 400GF 400 500 720 QSNT - G4X 6 140*152 14 39 211 3400*1250*1970 3200
GJ - 400GF 400 500 720 QSK19 - G14 6 159*159 19 83 206 3630*1660*2100 4555
GJ - 450GF 450 562.5 810 QSK19 - G13 6 159*159 19 83 205 3630*1660*2200 4600
GJ - 500GF 500 625 900 QSK19 - G12 6 159*159 19 84 217 3650*1400*2300 4600
GJ - 500GF 500 625 900 QSK19 - G6 6 159*159 19 84 204 3650*1400*2300 4650
GJ - 530GF 530 662.5 954 QSK19 - G4 6 159*159 19 84 216 3650*1400*2400 4700
GJ - 600GF 600 750 1080 QSK19 - G11 6 159*159 19 84 216 3650*1750*2450 4795
GJ - 600GF 600 750 1080 QSK19 - G11X 6 159*159 19 84 216 3650*1750*2450 4795
GJ - 640GF 640 800 1152 QSK38 - G8 12 159*159 12 170 216 4500*1700*2300 7500
GJ - 700GF 700 875 1260 QSK38 - G7 12 159*159 12 170 201 4600*1700*2300 7800
GJ - 750GF 750 937.5 1350 QSK38 - G6 12 159*159 12 170 204 4600*1700*2300 7850
GJ - 824GF 824 1030 1483 QSK38 - G1 12 159*159 12 170 204 4700*1750*2350 8500
GJ - 900GF 900 1125 1620 QSK38 - G2 12 159*159 12 170 200 4800*1800*2400 9000
GJ - 1000GF 1000 1250 1800 QSK38 - G5 12 159*159 12 170 208 5100*2800*2500 10500
GJ - 1200GF 1200 1500 2160 QSK38 - G19 12 159*159 12 170 216 5100*2800*2500 10500

Different types of CUMMINS diesel generator sets

3phase Cummins Diesel Standby Generator 220V With Marathon Alternator

CUMMINS Diesel Generator Sets Loading and Shipping

3phase Cummins Diesel Standby Generator 220V With Marathon Alternator

Wide applications for CUMMINS DIESEL GENERATOR

3phase Cummins Diesel Standby Generator 220V With Marathon Alternator

Cummins diesel engine generator sets can be used as very trustworthy backup power source for power shortage emergency situations, it is widely used in many application palces: hospitals, banks, governmental institutions, communication industries, IT industries, data centers, expressways, railways, metros, airports, seaports, energy industries, mines, construction sites, lab centers, high tech industries, science research centers, high technology institutions, commercial companies, industrial plants, marinetime shipping and operation, road maintenance service, road repair service, disaster or emergency prevention and control, etc.

If you choose Cummins diesel generator sets for your backup power source, you choose trustworthy quality and low maintenance, it would surely make your business operation smoothly.

Advantages for CUMMINS DIESEL GENERATOR

We are a leading diesel generator set manufacturer from China.

We are factory, not trading company, client would get competitive price from us.

We have good quality control on diesel generator sets making, packing, loading and shipping.

We source good quality components and parts from quality factories with well known brands.

We have diesel generator sets in stock, delivery time is quick.

We can offer production capacity 500 sets monthly to 1000 sets monthly.

We have an advanced production base being built, we can be able to produce 250000 diesel generator sets yearly.

If you need any kind of diesel generator, please contact us, we would give you competitive generator price.

Welcome to visit our factory!

Product tags

15kva diesel generator gebraucht

,

standby diesel generator 20kw

,

gebraucht diesel generator
Send your message to this supplier
Send Now

3phase Cummins Diesel Standby Generator 220V With Marathon Alternator

Ask Latest Price
Product Detail
Brand Name :
GJ Power
Model Number :
GJ-200 to 2200GF
Certification :
ISO, CE. UL
Place of Origin :
Hebei, China
MOQ :
1 set
Price :
USD10000-60000/SET
Contact Supplier
3phase Cummins Diesel Standby Generator 220V With Marathon Alternator
3phase Cummins Diesel Standby Generator 220V With Marathon Alternator
3phase Cummins Diesel Standby Generator 220V With Marathon Alternator
3phase Cummins Diesel Standby Generator 220V With Marathon Alternator
3phase Cummins Diesel Standby Generator 220V With Marathon Alternator
3phase Cummins Diesel Standby Generator 220V With Marathon Alternator

Hebei Guji Machinery Equipment Co., Ltd

Active Member
3 Years
Since 2008
Business Type :
Manufacturer
Main Products :
Cummins Diesel Generator Set, Diesel Generator Sets, Open Diesel Generator Set
Total Annual :
30000000-50000000
Employee Number :
100~130
Certification Level :
Active Member
Discover similar products
View More

Find Similar Products By Category:

Supplier Homepage Products Cummins Diesel Generator Set
MachineU China Products Electrical Equipment & Supplies Generators Diesel Generators
Contact Supplier
Submit Requirement
