Fresh Meat Fish Storage Cold Room Modular Assembly With Compressor Split System
Fresh Meat Fish Storage Cold Room Modular Assembly With Compressor Split System
Fresh Meat Fish Storage Cold Room Modular Assembly With Compressor Split System
Fresh Meat Fish Storage Cold Room Modular Assembly With Compressor Split System
Specifications
Brand Name :
SINCOOL
Model Number :
CR
Certification :
CE,CB, SASO
Place of Origin :
CHINA
MOQ :
1 Unit
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union
Supply Ability :
60 Units per Month
Delivery Time :
25 Days
Packaging Details :
Plywood Case
Condensing Unit :
Remote Semi Hermetic
Room Panel :
100mm thick
Material :
White Prepainted Steel
Door Type :
Hinged Door
Door Hole Size :
Custom
Temperature :
-2 ℃ to +2 ℃
Description

Modular Assembly Fresh Meat Storage Cold Rooms with Compressor Split System

Introductions:

Keep fresh meats refrigerated at temperatures of -2 ℃ to 2 ℃ for as much time as possible.
It is important to allow free circulation of cold air around meat products. An airy, uncluttered refrigerator

will keep all foods fresh longer. Our modular cold rooms ensure just that. We stock a large variety of

Modular and bespoke Cold rooms that allow air to circulate to ensure your produce is kept fresh.

Our commercial Modular cold rooms are manufactured with high quality durable 70mm or 100mm

polyurethane Insulation. Simple cam-lock assembly allows these units to be assembled within 3 hours.

Specifications:

Cold Room Size Custom
Room Temperature +15 ℃ to -60 ℃
Cooling System Monoblock (simple installation), Remote
Compressor Brand Tecumseh (Monoblock), , Copeland
REFRIGERANT R404a
Voltage/Frequency 220V/50Hz 60Hz/1PH, 380V/50Hz/3PH, 415V/50Hz/3PH
Thickness of Room Panel 70mm, 100mm, 150mm, 200mm
Material of Panel Surface Prepainted Steel, Stainless Steel 304
Thickness of Panel Surface Material 0.5mm
Cold Room Door Hinged, Sliding
Door Hole Size 720*2000mm standard for Hinged, Sliding Door Custom
Insulation Agent PU
Room Panel Connection Type Cam Lock

Main Features:

⇒ Modular panels are easy to assemble and disassemble

⇒ Modular white steel sheet panels

⇒ CFC-free polyurethane insulation, 100 mm thick for temperatures from -2°C to +8°C or from -2°C to

-25°C

⇒ Non-slip aluminum floor

⇒ Built-in door anti-condensation heater

⇒ External edges of the cold room base made of AISI 304 stainless steel.

⇒ Voltage/Frequency: 220V/50Hz, 220V/60Hz, 380V/50Hz, 415V/50Hz

⇒ Door: Sliding Door or Swing Door

⇒ Door Hole Size: Customized

⇒ High-quality Copeland Scroll Compressor

Detailed Photos:

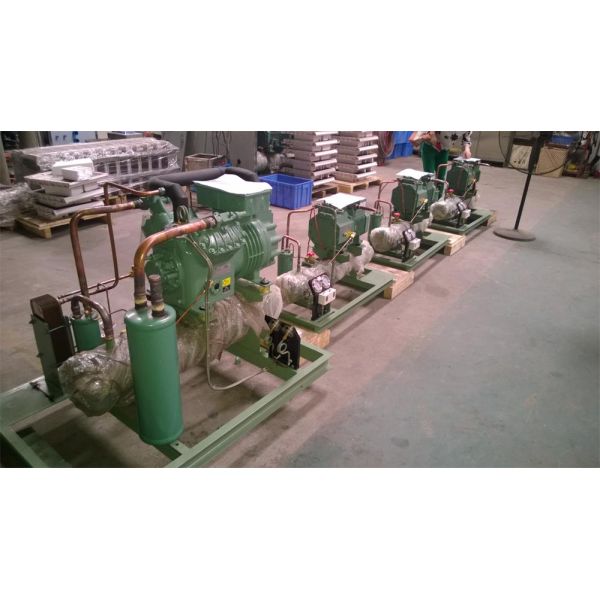

Water-Cooled Semi-hermetic Condensing Unit

Fresh Meat Fish Storage Cold Room Modular Assembly With Compressor Split System

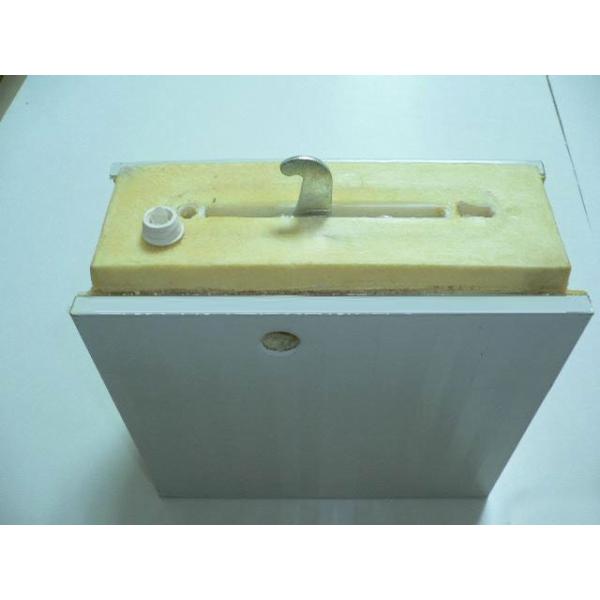

Cam-lock System

Fresh Meat Fish Storage Cold Room Modular Assembly With Compressor Split System
