SYX20 Instrument Sets for Cataract and IOL Implantation Surgery( Code No.59010)
SYX20 Instrument Sets for Cataract and IOL Implantation Surgery( Code No.59010)
Specifications
Brand Name :
66 VISION
Price :
Negotiable
Description

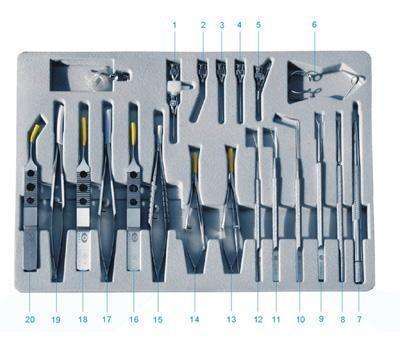

SYX20 Instrument Sets for Cataract and IOL Implantation Surgery( Code No.59010)
No. Product Name Code No. Specifications
1
 Coaxial I/A Cannula
 56190
 Straight tip
Triple joint
Tube diameter: 0.6 mm
2
 Irrigation Needle
 56146
 15° angled needle
Needle diameter: 0.4 mm
Total length: 27 mm
3
 Irrigation Needle
 56144
 Straight needle
Needle diameter: 0.4 mm
Total length: 27 mm
4
 Irrigation Needle
 56148
 Straight needle
Needle diameter: 0.7 mm
Total length: 27 mm
5 Coaxial I/O Cannula 56191A Double curved tubes
Tube diameter: 0.7 mm
6 Eye Speculum 51288A Wire Type
Blade length: 15 mm
Total length: 50 mm
7 Blade Holder 56202B
 Spring type
Total length: 120 mm
8 Lens Spoon 52574 Spoon length: 8 mm
Spoon width: 2.5 mm
Total length: 120 mm
9
 Lens Loop
 52488A
 Curved loop
Loop width: 4 mm, loop length: 6 mm
Total length: 120 mm
10
 Iris Spatula
 52404A
 Short angled tip
Tip length: 11 mm
Total length: 120 mm
11
 IOL Orientation Hook
 51474A
 0.2mm curved tip
Total length: 110 mm
12
 IOL Orientation Hook
 51478A
 Cylindrical tip 0.2 mm, angled 15°
Total length: 110 mm
13
 Vannas Scissors
 54138B
 Straight tip
Blade length: 6.5 mm
Total length: 90 mm
14 Vannas Scissors 54140B
 Curved tip
Blade length: 6.5 mm
Total length: 90 mm
15 Needle Holder 55152B Curved tip
Total length: 110 mm
16
 Tying Forceps
 53320A
 Straight tip
Platform length: 4.5 mm
Total length: 105 mm
17
 Corneal Scissors
 54109B
 Slightly curved tip
Blade length: 14 mm
Total length: 120 mm
18
 Suturing Forceps
 53325A
 Straight tip
Platform length: 4.5 mm
1×2 teeth width: 0.15 mm
Total length: 105 mm
19
 Membrance Cataract Scissors
54264B
 Straight tip
Blade length: 10 mm
Total length: 117 mm
20
 Tying Forceps
 53324A
 Short angled tip
Platform length: 4.5 mm
Total length: 114 mm
