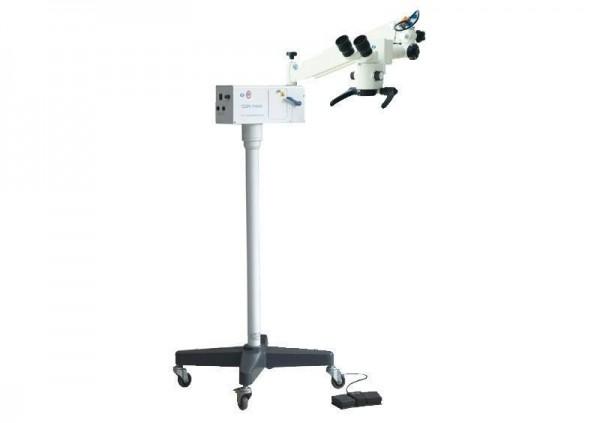

Compact Eye Surgery Microscope , Portable Operating Microscope For Ophthalmic Microsurgery
Compact Eye Surgery Microscope , Portable Operating Microscope For Ophthalmic Microsurgery
Specifications
Brand Name :
66 VISION
Price :
Negotiable
Description
Slit Lamp Microscope YZ20P6 Operation Microscope
The product is a simple coaxial illumination operation microscope for one man.It is compact and lightweight, with a high degree of flexibility to meet the general requirement of ophthalmic microsurgery.

Features

Binocular operation microscope designed for single man can meet the requirements of general ophthalmic surgery.
Germany optical lenses are all multi-coated to get clear image and view field .
6°+0 coaxial illumination provides the red reflex.
Reaching radius of microscope arm increases to 1030 mm ,which provides surgeon larger operation range.
Cortical remnants on the posterior capsular can be clearly observed by the 6°+0° coaxial illumination.
Position screw can protect the arm at any location from moving.

Specifications

Eyepiece Magnification

12.5×

Focal Length of Objective Lens

f=200

Working Distance

190 mm

Magnification for Main Microscope

5.3×, 8×, 12×

Magnification for Assistant Microscope

6×, 10×, 16×

Diameter of Field

37 mm, 25 mm, 16.7 mm

Diopter Adjustment

±7D

Pupilary Distance

50 mm80 mm

Maximum Resolution

100 LP/mm

Focusing Range for Assistant Microscope

≥30 mm

Light Source

12V/100W halogen lamp for medical use

Illumination Type

6°+0° coaxial illumination of cold light source

Coaxial Illuminance

≥30,000 Lx(halogen)

Reaching Radius of Arm

1030 mm

Adjustable Vertical Range

±200 mm
