Ophthalmic Surgical Operating Microscope 12.5×/18B Eyepiece Magnification With Assistant'S Microscope
Ophthalmic Surgical Operating Microscope 12.5×/18B Eyepiece Magnification With Assistant'S Microscope
Specifications
Brand Name :
66 VISION
Price :
Negotiable
Model Number :
YZ20T9
Certification :
ISO13485, FDA,CE
Place of Origin :
China Jiangsu, Suzhou
MOQ :
1 pcs
Packaging Details :
carton with epe （5 cartons）
Microscope :
double binocular
Lens :
Advanced apochromatic technology
Function :
can match HD camera and computer
Description

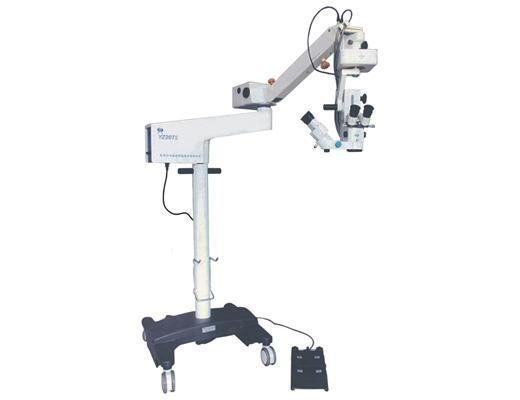

YZ20T9 Operation Microscope

Characteristics:

♦Advanced apochromatic technology and unique optical balanced technology effectively improves the binocular visual fusions, strengthenes in third dimension and reduces surgeon’s tireness during operations.

♦Fine focusing knob is under the bottom of assistant binocular. The observation of the assistant’s microscope can be finely focused independently of the main microscope to avoid different observation from surgeons.

♦20°oblique illumination can also be used as slit illumination. Slit width is continuously adjustable.

♦For ophthalmic using

♦Specifications:

Eyepiece Magnification 12.5×
Diopter Adjustment ±7D
Magnification for Main Microscope 4×, 6×, 10×, 16×, 25×
Magnification for Assistant Microscope 6×, 10×, 14×
Focal Length of Objective Lens f=200 mm
Diameter of View Field 58 mm, 38 mm, 23 mm, 14 mm, 9mm
Pupilary Adjustment 50 mm ～ 75 mm
Maximum Resolution 119 LP/mm
Working Distance 190 mm

Focusing Range for Assistant

Microscope

≥30 mm
Light Source 12V/10W, medical cold reflection halogen lamp

Illumination Type

6°+0° coaxial illumination, 20° oblique

illumination(can be used as silt illumination with slit width adjustable)
Coaxial Illuminance ≥50,000 Lx
Oblique Illuminance ≥45,000 Lx
Reaching Radius of Arm 1240 mm
Adjustable Vertical Range 850 mm~1350 mm
Fine Focusing Speed and Range ≤2 mm/s,≥50 mm
Speed for X/Y and Range ≤2 mm/s,50 mm×50 mm
Input Voltage AC 220V/110V±10%, 50Hz/60Hz
Power Consumption 3300 VA
Fuse AC 250V T4.0A, AC 125V T8.0A
Electrical Safety Standard IEC 60601-1, Class I
Packing Volume 0.786 m3,5 cartons
Total Weight 213 kg
