100~240VAC 50/60Hz 2A 24W/CH Machine Vision Hardware Digital Current Controller
100~240VAC 50/60Hz 2A 24W/CH Machine Vision Hardware Digital Current Controller
Specifications
Brand Name :
OPT
Model Number :
OPT-DPA2012E
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
Negotiable
Delivery Time :
7 work days at the soonest
Packaging Details :
Craft Box
Product name :
Digital Current Controller
Voltage input :
100~240V AC 50/60Hz
Auto sensing of light rated current :
For 10mA-2A 12V LED light
Manual setting for max. output current :
10mA~2A
Intensity control :
256 levels
Output power :
24W/CH
Dimensions(mm) (L*W*H) :
91*132*170mm
Operating Temperature :
-5℃~50℃
Description

Machine Vision Controller Digital Current Controller 100~240V AC 50/60Hz 2A Current OPT-DPA2012E

Product Features

◆ Programmable trigger: Maximum of 32 programmable steps and intensity, pulse width and trigger source can be defined in each step.

◆ Autosense TM technology

◆ ≤20μs trigger response time

◆ Up to 20kHz trigger response frequency

◆ Simultaneous communication of multiple channels

◆ Manual setting for max. output current

◆ 256-level light intensity control

◆ External trigger: External trigger input(e.g. camera trigger signal) for related light strobes and other sequences.(Strobe mode can greatly improve light source life expectancy.)

◆ Trigger pulse width setting

◆ RS232 interface

◆ 100Mb Ethernet interface

◆ Temperature controlled fan

◆ Convenient mounting with screws or on DIN rails

Specifications

Model OPT-DPA2012E-4
Voltage 100~240V AC 50/60Hz
Current 2A
Auto Sensing Of Light Rated Current For 10mA-2A 12V LED light
Manual Setting For Max. Output Current 10mA~2A
Intensity Control 256 levels
Protection No
Trigger Level
General Trigger Mode 256 intensity levels settable
Normal Trigger Time Unit 1μs/ 10μs/1ms/100ms
Normal Trigger Pulse Width 1μs~30s
High-Intensity Trigger Mode 2A output per channel
High Intensity Trigger Pulse Width 0.01~5.00ms
Programmable Trigger Yes
Response Time ≤20μs
Response Frequency ≤20KHz
Fan Control Via temperature
Channels 4
Output Power 24W/CH
Hi-Pot Test 1500V AC 1Min
Insulation 500VDC
Standby Power Consumption 5W
Dimensions(L*W*H) 91*132*170mm
Operating Temperature -5℃~50℃
Weight(kg) 0.84

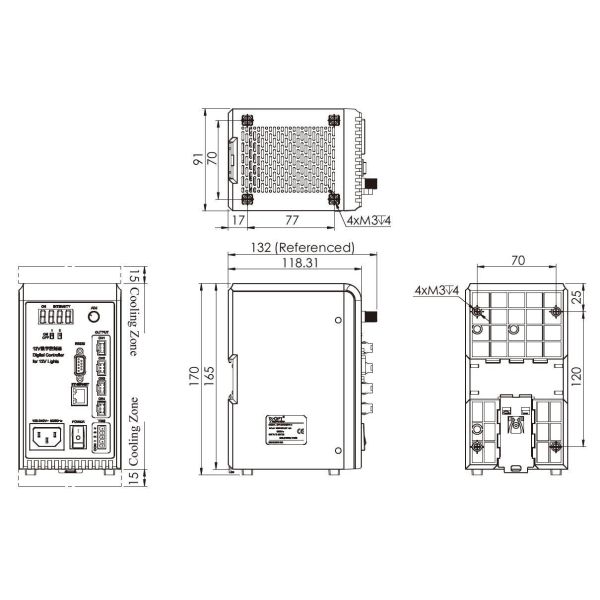

Dimensions (mm)
OPT-DPA2012E-4
100~240VAC 50/60Hz 2A 24W/CH Machine Vision Hardware Digital Current Controller

Device Overview

100~240VAC 50/60Hz 2A 24W/CH Machine Vision Hardware Digital Current Controller
