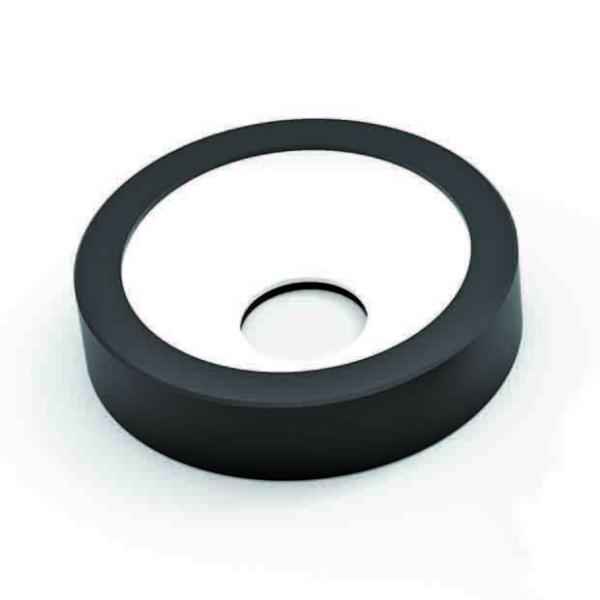

24V 0.6W / 1.1W Machine Vision Ring Light Uniform Illumination For Parts Alignment
24V 0.6W / 1.1W Machine Vision Ring Light Uniform Illumination For Parts Alignment
24V 0.6W / 1.1W Machine Vision Ring Light Uniform Illumination For Parts Alignment
24V 0.6W / 1.1W Machine Vision Ring Light Uniform Illumination For Parts Alignment
24V 0.6W / 1.1W Machine Vision Ring Light Uniform Illumination For Parts Alignment
24V 0.6W / 1.1W Machine Vision Ring Light Uniform Illumination For Parts Alignment
24V 0.6W / 1.1W Machine Vision Ring Light Uniform Illumination For Parts Alignment
24V 0.6W / 1.1W Machine Vision Ring Light Uniform Illumination For Parts Alignment
Specifications
Brand Name :
OPT
Model Number :
OPT-RIW70
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
Negotiable
Delivery Time :
7 days at the soonest
Packaging Details :
Craft Box
Model :
OPT-RIW70
Product name :
Machine Vision Ring Light Diffuse Ring Light
Color :
Red/White/Blue/Green
Output :
Red: 24V/0.6W White/Blue/Green: 24V/1.1W
Channels :
1
Housing Size（Diameter） :
70
Recommended Controller :
OPT-DPA2024E
Feature :
Uniform illumination for multi-slope objects
Description

Red/White/Blue/Green 24V 1 Channel Machine Vision Ring Light Diffuse Ring Lights Uniform Illumination OPT-RIW Series OPT-RIW70

Product Features

◆ Providing uniform illumination for multi-slope objects and eliminate the differences that caused by the different reflection angles.
◆ Equipped with special diffuser to ensure diffuse and uniform illumination
Application Cases
◆ Inspection of electronic parts
◆ Parts alignment
◆ Recognition of characters and patterns on surfaces
◆ Geometric measurement
Specifications
Model OPT-RIW70
Color Red/White/Blue/Green
Output Red: 24V/0.6W White/Blue/Green: 24V/1.1W
Channels 1
Housing Size(Diameter) 70
Recommended Controller OPT-DPA2024E
Dimensions (mm)
OPT-RIW70
24V 0.6W / 1.1W Machine Vision Ring Light Uniform Illumination For Parts Alignment

Applicaitons:Adaptor pin inspection

24V 0.6W / 1.1W Machine Vision Ring Light Uniform Illumination For Parts Alignment

FAQ

Working principle of machine vision system

Machine vision system can transfer the optical signal into image signal through image acquisition hardware, i.e. camera, shot, light source, etc., and transmit it to image processing software. Image processing software can extract the feature of target according to pixel luminance and color distribution, and make the corresponding judgment to realize the inspection by controlling the site equipment. Vision processing system comprises hardware and software. Machine vision camera can be further divided into intelligent camera and PC-based vision system according to the hardware. The core of PC-based machine vision system includes light source, shot, camera and vision processing system. The main function of the shot is to image the target onto the sensitive film of the camera. The main function of the camera is image acquisition, transferring the optical signal to electronic signal to import to the PC. The core technology of the software is image processing and algorithm analysis, which include image-enhance, image segmentation, feature extraction, image recognition and analysis. Through the image processing and analysis, the system can judge the product quality, measure the dimension, and display/execute the corresponding action according to the result signal.
