EPON ONU 1GE For FTTH Support CLI WEB Management for Upstream 1.244Gbps Downstream 1.244Gbps DC12V 0.5A Realtek9601B
EPON ONU 1GE For FTTH Support CLI WEB Management for Upstream 1.244Gbps Downstream 1.244Gbps DC12V 0.5A Realtek9601B
EPON ONU 1GE For FTTH Support CLI WEB Management for Upstream 1.244Gbps Downstream 1.244Gbps DC12V 0.5A Realtek9601B
EPON ONU 1GE For FTTH Support CLI WEB Management for Upstream 1.244Gbps Downstream 1.244Gbps DC12V 0.5A Realtek9601B
Specifications
Brand Name :
Opti-S
Model Number :
OS-EU01G
Certification :
CCC/RHOS/ISO9001
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T;Paypal
Delivery Time :
5-8 work days after payment
chipset :
Realtek 9601B
DC power supply :
DC 12V/0.5A, external AC-DC power adaptor
Management :
CLI;web management
Description

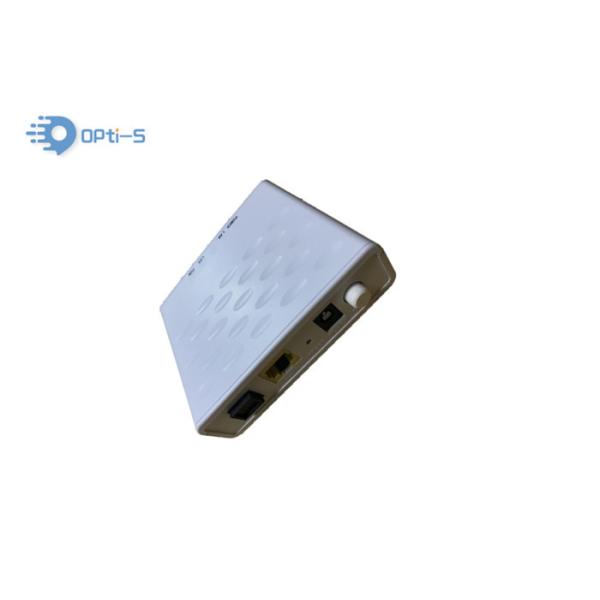

EPON ONT(1GE)

Product Overview

EPON ONT 1GE conforms to the EPON technical standard defined by IEEE, and meets the technical requirements of EPON equipment from multiple operators in China. It is a residential gateway device with routing functions for EPON ONU and LAN Switch for residential and SOHO users.

The uplink of 1GE provides one EPON PON interface, while downlink provides four Ethernet and WIFI interfaces. It can realize optical access solutions such as FTTH (Fiber To The Home) and FTTB (Fiber To The Building). It fully integrates the reliability, maintainability and security design of carrier-grade equipment, and provides customers with the last kilometer of broadband access to residential and corporate customers.

Hardware Specifications

PON Interface Interface Type SC/PC, PX20+
Rate Uplink: 1.25Gbps; Downlink: 1.25Gbps
User-Side Interface 1*10/100/1000BASE-T;
Size (mm) 100(L)×90(W)×22(H)
Maximum Power Consumption <8W
Weight 200g
Operating Environment Temperature: -10°C ~ +55°C
Humidity: 5% ~ 95% (no condensation)
Power Supply External Power Adapter 12V/0.5A
Power-Adapter Input 100-240V AC, 50/60Hz
Power Interface Size

metal inner diameter: φ2.5±0.1mm; outer diameter: φ5.5±0.1mm

length: 9.0±0.1mm

Software Characteristic

Standard Compliance

Comply with IEE802.3ah EPON

Comply with IEEE802.11b/g/n

Comply with China Telecom/China Unicom EPON Interoperability Standard
EPON Support ONU registration mechanism
Support DBA
Support ONU software batch upgrade, scheduled upgrade, real-time upgrade
Support standard OAM and extended OAM management functions
Support the maximum effective transmission distance of 20 km
Support long illuminating detection and optical power detection
Multicast IGMP V2 Proxy/Snooping
Management & Maintenance Support web management
Support CLI/Telnet management
Support port loopback detection

Ordering Information

Model Product Description
EPON ONT 1GE EPON ONT 1GE, plastic shell, external power adapter

EPON ONU 1GE For FTTH Support CLI WEB Management for Upstream 1.244Gbps Downstream 1.244Gbps DC12V 0.5A Realtek9601B
