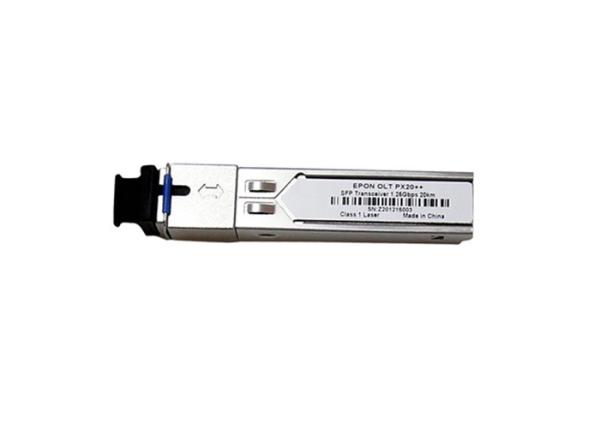

PX20++ 20km EPON OLT SFP Module TX 1490nm1.244Gbps RX 1310nm 1.244Gbps huawei zte fiberhome compatible
PX20++ 20km EPON OLT SFP Module TX 1490nm1.244Gbps RX 1310nm 1.244Gbps huawei zte fiberhome compatible
PX20++ 20km EPON OLT SFP Module TX 1490nm1.244Gbps RX 1310nm 1.244Gbps huawei zte fiberhome compatible
PX20++ 20km EPON OLT SFP Module TX 1490nm1.244Gbps RX 1310nm 1.244Gbps huawei zte fiberhome compatible
PX20++ 20km EPON OLT SFP Module TX 1490nm1.244Gbps RX 1310nm 1.244Gbps huawei zte fiberhome compatible
PX20++ 20km EPON OLT SFP Module TX 1490nm1.244Gbps RX 1310nm 1.244Gbps huawei zte fiberhome compatible
Specifications
Brand Name :
Opti-S
Model Number :
EPON OLT PX20++
Certification :
IS9001
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
5-8 work days
Packaging Details :
10 pcs for 1 box
Launched Power :
Launched Power is 5-6dBm
Distance :
Pon module for SFP is 20km
Standard :
Compatible IEEE 802.3ah
Description

Product Features

  • Compatible IEEE 802.3ah 1000BASE-PX20++ GEPON application
  • Applied to EPON OLT for a Single Fiber Bi-directional EPON System
  • SFP, Single SC connector, Digital Diagnostic Interface Compliant with SFF-8472
  • Burst Digital Receiving Signal Strength Indication (RSSI)
  • Single 3.3V power supply
  • Operation case temperature -10~70°C for commercial
  • RoHS-6 compliance

Applications:


Data services
Voice services
Video services
Monitoring service
FTTH

Absolute Maximum Ratings

Parameter Unit Min. Typical Max.
Power Supply V 0 4.2
Storage Ambient Temperature °C -40 85
Operating Case Temperature °C -40 85
Operating Relative Humidity % 5 95
Receiver Damaged Threshold dBm 0

Operating Condition

Parameter Unit Min. Typical Max.
Power Supply V 3.1 3.3 3.5
Operating Case Temp for C-temp °C -10 70
Operating Relative Humidity % 5 95
Data Rate(TX/RX) Gbit/s 1.25


Optical Characteristics

Parameter Unit Min. Typ. Max.
TX Central Wavelength nm 1480 1500
Spectral Width (-20dB) nm 1
SMSR dB 30
Mean Launched Power dBm 5 7
Mean Launched Power (TX Off) dBm -39
Extinction Ratio(Note 1) dB 9
TX Total Jitter UI 0.43
Rise/Fall Time (20%-80%) ps 260
RIN15OMA dB/Hz -115
Optical Return Loss Tolerance dB -12
Transmitter and dispersion Penalty(20km G.652) dB 2.3
TX Optical Eye Mask Compliant With IEEE Std 802.3ah™-2004
Receive Wavelength nm 1260 1360
Sensitivity (Note 2) dBm -33
Overload dBm -6
Dynamic Rang dB 25
Receiver Threshold Settling Time ns 250
RX Dynamic Range(Note 3) dBm -30 -6
LOS-Deassert dBm -34
LOS-Assert dBm -45
SD Hysteresis dB 0.5 6
Receiver Reflectance dB -12

PX20++ 20km EPON OLT SFP Module TX 1490nm1.244Gbps RX 1310nm 1.244Gbps huawei zte fiberhome compatible

PX20++ 20km EPON OLT SFP Module TX 1490nm1.244Gbps RX 1310nm 1.244Gbps huawei zte fiberhome compatible
