High Speed GYXTW Fiber Optic Cable Telecom Central Beam Single Mode
High Speed GYXTW Fiber Optic Cable Telecom Central Beam Single Mode
High Speed GYXTW Fiber Optic Cable Telecom Central Beam Single Mode
High Speed GYXTW Fiber Optic Cable Telecom Central Beam Single Mode
High Speed GYXTW Fiber Optic Cable Telecom Central Beam Single Mode
High Speed GYXTW Fiber Optic Cable Telecom Central Beam Single Mode
High Speed GYXTW Fiber Optic Cable Telecom Central Beam Single Mode
High Speed GYXTW Fiber Optic Cable Telecom Central Beam Single Mode
Specifications
Brand Name :
Yiyuan
Certification :
OHSAS 18001, ISO 14001, ISO 9001
Place of Origin :
China
MOQ :
1KM
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
500000km/month
Delivery Time :
30 working days after received your payment
Packaging Details :
Wood coil strand
Product Name :
Flame Retardant Cable
Number of Cores :
4-12 core
Application :
Outdoor duct/outdoor cable/aerial/lashed
Number of Conductors :
≥ 10
Installation :
Self-supporting Aerial
Fiber Type :
Single mode
Length :
1km/2km/customized
Description

High Speed GYXTW Fiber Optic Cable Telecom Central Beam Single Mode

Quick Detail:

  1. Amoured: steel tape
  2. Center Strength member: Steel wire
  3. Mode: Single mode, Multimode
  4. Fiber core: 2~48 cores
  5. Application: Duct and Aerial
  6. Jacket: PE material

Description:

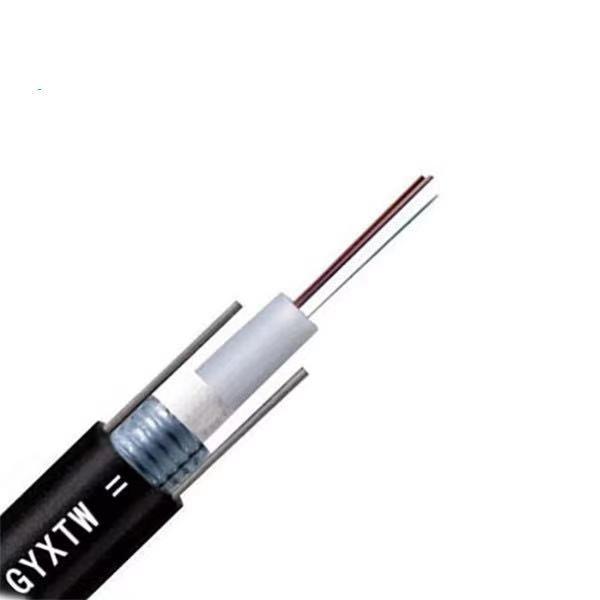

GYXTW fiber(250µm) are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound.

Features:

  1. Good mechanical and temperature performance
  2. High strength loose tube that is hydrolysis resistant
  3. Special tube filling compound ensure a critical protection of fiber
  4. Crush resistance and flexibility
  5. PSP enhancing moisture-proof
  6. Two parallel steel wires ensure tensile strength
  7. Small diameter, light weight and friendly installation
  8. Iight-armoured cable

Application:

  1. Laying modes: Aerial & Conduit
  2. Rural communication
  3. Local trunk line
  4. CATV & computer networks system

Technical Parameters:

Fiber style Unit

SM

(G652D)

MM

(50/125)

MM

(62.5/125)

MM

( OM3/300)
Condition nm 1310/1550 850/1300 850/1300 850/1300
Attenuation dB/km 0.36/0.23 3.0/1.0 3.0/1.0 3.0/1.0
Dispersion 1550nm ps(nm·km) ≤18 ----- ----- -----
1625nm ps(nm·km) ≤22 ----- ----- -----
Bandwidth 850nm MHZ·.km ----- ≥200 ≥160 ≥1500
1300nm MHZ. ·km ----- ≥200 ≥300 ≥500

Characteristics:

Fiber Count 2~12 12~14 12~24
Cable diameter(mm) 7.8 8 8.5
Cable weight(kg/km) 85 85 92
Tensile Strength Long Term (N) 600 1000 1000
Short Term (N) 1500 3000 3000
Crush Resistance Long Term (N/100mm) 300 1000 1000
Short Term (N/100mm) 1000 3000 3000
Bending Radius Static (mm) 10D 10D 10D
Dynamic (mm) 20D 20D 20D
Operating Temperature: -40°C to + 70°C
