GYFTY53 Custom Fiber Optic Cable Single Sheath Armored Fiber Optic Cable
GYFTY53 Custom Fiber Optic Cable Single Sheath Armored Fiber Optic Cable
GYFTY53 Custom Fiber Optic Cable Single Sheath Armored Fiber Optic Cable
GYFTY53 Custom Fiber Optic Cable Single Sheath Armored Fiber Optic Cable
GYFTY53 Custom Fiber Optic Cable Single Sheath Armored Fiber Optic Cable
GYFTY53 Custom Fiber Optic Cable Single Sheath Armored Fiber Optic Cable
GYFTY53 Custom Fiber Optic Cable Single Sheath Armored Fiber Optic Cable
GYFTY53 Custom Fiber Optic Cable Single Sheath Armored Fiber Optic Cable
Specifications
Brand Name :
Yiyuan
Certification :
ISO 9001;ISO 14001;OHSAS 18001
Place of Origin :
China
MOQ :
1KM
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
500000km/month
Delivery Time :
30 working days after received your payment
Packaging Details :

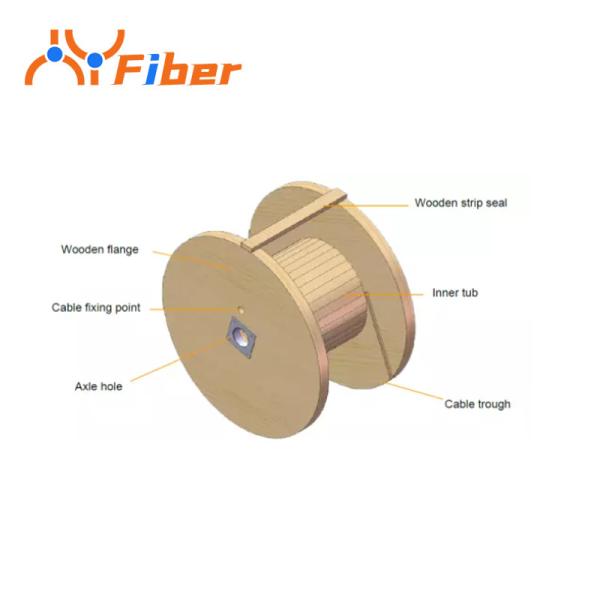

Wood coil strand
Product Name :
Custom Fiber Optic Cable
Number of Cores :
4-144 core
Keyword :
Custom Fiber Optic Cable
OEM :
Accepted
Application :
Outdoor Duct, Outdoor Aerial
Jacket material :
PE PVC
Installation :
Self-supporting Aerial
Package :
Wood coil strand
Description

GYFTY53 Custom Fiber Optic Cable Single Sheath Armored Fiber Optic Cable

GYFTY53 direct buried Steel armoured cables

1. Cable structure

2. Cable Type: OFC-Armored GYFTY53 .652D-Direct buried -HDPE

Technical Characteristics

In the GYTY53 cable, single-mode/multimode fibers are positioned in the loose tubes, the tubes are filled with water blocking filling compound.Tubes and fillers are stranded around the strength member into a circular cable core. Then the cable is completed with a PE sheath. Which is filled with the filling compound to protect it. After PSP is applied over the inner sheath, the cable is completed with a PE outer sheath.

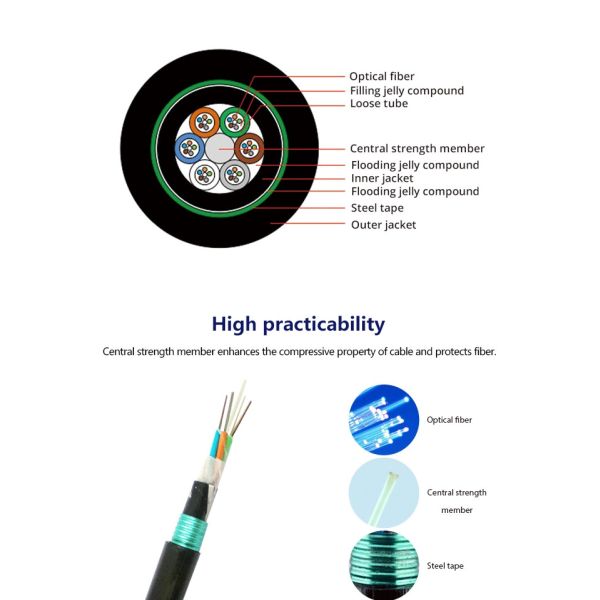

Construction:

1. Optical Fiber

2. Tube Filling Compound

3. Loose Tube

4. Cable Filling Compound

5. PE Inner Sheath

6. Water-blocking Tape

7. PSP Armored

8. PE Outer sheath

9. Steel Wire Strength Member

10. Fillers

Dimension and Properties

Fiber count 2-8 12 24 36 48 72 96 144
Max. No of loose tube / filler No. 1/5 2/4 4/2 6/0 4/2 6/0 8/0 12/0
Fiber No. per tube 6 12
Loose tube diameter 2.0mm 2.2
Central strength member diameter (FRP or steel wire ) 2.0mm 2.4mm PE+FRP
Outer sheath thickness 1.8mm
Cable OD mm 9.0 9.0 9.0 10.0 10.8 11.5 13.3 17.5
Cable weight kg/km 130 130 135 135 145 150 160 185
Operation temperature range -40 d℃ to + 70 ℃
Installation temperature range -40 ℃ to + 70 ℃
Transport and storage temperature range -40 ℃ to + 70 ℃

GYFTY53 Custom Fiber Optic Cable Single Sheath Armored Fiber Optic CableGYFTY53 Custom Fiber Optic Cable Single Sheath Armored Fiber Optic Cable
