Roll Outdoor G652D 12 Core Terminating Fiber Optic Cable Self Supporting HDPE Sheath
Roll Outdoor G652D 12 Core Terminating Fiber Optic Cable Self Supporting HDPE Sheath
Roll Outdoor G652D 12 Core Terminating Fiber Optic Cable Self Supporting HDPE Sheath
Roll Outdoor G652D 12 Core Terminating Fiber Optic Cable Self Supporting HDPE Sheath
Specifications
Brand Name :
Yiyuan
Certification :
ISO 9001;ISO 14001;OHSAS 18001
Place of Origin :
China
MOQ :
1KM
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
500000km/month
Delivery Time :
30 working days after received your payment
Packaging Details :
Wood coil strand
Product Name :
Custom Fiber Optic Cable
Number of Cores :
2-144 core
Outer Sheath Material :
PE
OEM :
Accepted
Number of Conductors :
≥ 10
Package :
Plywood Reel/customized
Fiber Type :
Single mode
Description

Roll Outdoor G652D 12 Core Terminating Fiber Optic Cable Self Supporting HDPE Sheath

Description

GYTC8Y is a typical self supporting outdoor fiber optic cable with features of moisture resistance and crush resistance suitable for aerial application.

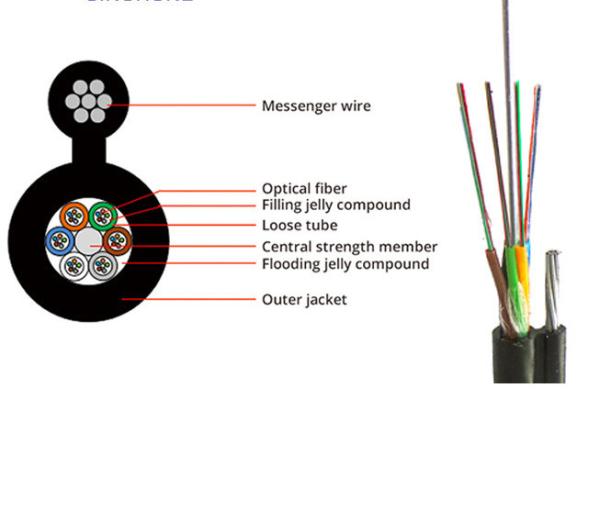

The stranded wires as the supporting part are completed with a PE sheath to be figure 8 structure. PE outer sheath provide crush resistance and gun shot resistance features. The FRP central strength improves the tensile strength and it is surrounded by the loose tube and water blocking tape and glass fiber. The impact struture ensures excellent mechanical and environmental performance.

Both single mode type and multimode types are available. Various lengths and fiber number can be customized according to customers' requirements.

Applications

Inter-building voice or data communication backbones

Duct and self-supporting aerial

Characteristics

Loose tube gel-filled construction for superior fiber protection

Corrugated steel tape armor to protect cable from mechanical damage

Self-supporting figure 8 design

Item
Parameters
Loose Tube
Material
PBT
Color
All color display
Filler
Material
PE
Color
Black
Electrical Unit
Insulation
HDPE
CSM
Phosphating steel wire
Armoured
Plastic coated steel strip
Outer Jacket
MDPE
Jacket Color
Black

FAQ


1. Are you trading company or manufacturer?
We are the manufacturer with 12 years experience.


2. About the quality?
After price confirmation, you can require for samples to check our quality.


3. Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.


4. What is your delivery time?
It mainly depend on order quantity.But pls be assured that we will arrange your goods asap after your payment .
