96 Core Armoured Figure 8 Outdoor Aerial Fibre Cable
96 Core Armoured Figure 8 Outdoor Aerial Fibre Cable
96 Core Armoured Figure 8 Outdoor Aerial Fibre Cable
96 Core Armoured Figure 8 Outdoor Aerial Fibre Cable
Specifications
Brand Name :
Yiyuan
Certification :
ISO 9001;ISO 14001;OHSAS 18001
Place of Origin :
China
MOQ :
1KM
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
500000km/month
Delivery Time :
30 working days after received your payment
Packaging Details :
Wood coil strand
Product Name :
Custom Fiber Optic Cable
Number of Cores :
2-144 core
Outer Sheath Material :
PE
OEM :
Accepted
Application :
Outdoor duct/outdoor cable/aerial/lashed
Color :
Black or customized
Number of Conductors :
≥ 10
Installation :
Self-supporting Aerial
Package :
Plywood Reel/customized
Fiber Type :
Single mode
Strength member :
FRP
Description

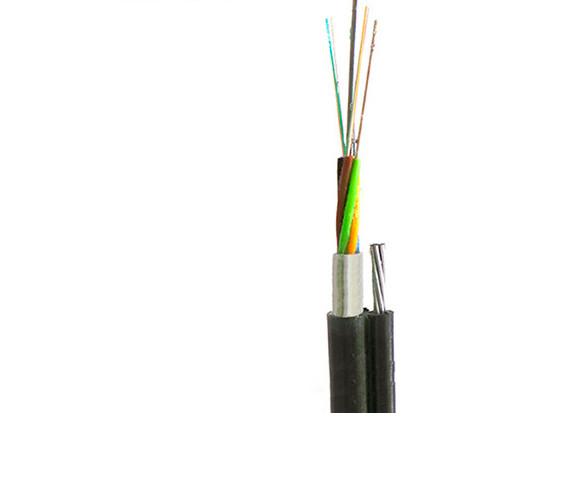

96 Core Armoured Figure 8 Outdoor Aerial Fibre Cable

Description

GYTC8A is a typical self supporting outdoor fiber optic cable with features of moisture resistance and crush resistance suitable for aerial application.

The stranded wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure. Aluminum tape armored and PE outer sheath provide crush resistance and gun shot resistance features. The steel-wire as the central strength improves the tensile strength and it is surrounded by the loose tube and water blocking system. The impact structure ensures excellent mechanical and environmental performance.

Both single mode type and multimode types are available. Various lengths and fiber number can be customized according to customers’ requirements.

Characteristics:

  • Full cross-section water-blocking structure and double-sided coated film steel belt longitudinal application ensure good water blocking and moisture resistance.
  • Loose tube is filled with special grease to ensure good water blocking and moisture performance
  • The phosphate wire center stiffening member is of high modulus and corrosion resistance.
  • The figure 8 aerial-self supporting structure is featured with high tensile strength, easy overhead laying, and low cost of installation
  • More than 30 years of service life.

Application

  1. Communication Workshop
  2. FTTH
  3. Local Area Network
  4. Fiber Sensor
  5. CATV
  6. Fiber Optical Communication System


Parameters

Fiber count

Structure

 Fibers per tube

Loose tube diameter

(mm)

CSM diameter

/pad diameter

(mm)

Thickness of outer jacket

(mm)

Cable diameter/

Height

(mm)

Cable

Weight

(kg/km)
4 1+5 4 1.7±0.1 1.4/1.4 1.6±0.1 9.0 ±0.5/15.9 ±0.8 135
6 1+5 6 1.7±0.1 1.4/1.4 1.6±0.1 9.0 ±0.5/15.9 ±0.8 135
8 1+5 4 1.7±0.1 1.4/1.4 1.6±0.1 9.0 ±0.5/15.9 ±0.8 135
12 1+5 6 1.7±0.1 1.4/1.4 1.6±0.1 9.0 ±0.5/15.9 ±0.8 135
24 1+5 6 1.7±0.1 1.4/1.4 1.6±0.1 9.0 ±0.5/15.9 ±0.8 136
36 1+6 6 1.7±0.1 1.8/1.8 1.6±0.1 9.4 ±0.5/16.3 ±0.8 150
48 1+5 12 2.0±0.1 1.4/1.4 1.6±0.1 9.7 ±0.5/16.6 ±0.8 146
72 1+6 12 2.0±0.1 2.0/2.0 1.6±0.1 10.4 ±0.5/17.3 ±0.8 170
96 1+8 12 2.0±0.1 2.2/3.5 1.6±0.1 12.0 ±0.5/19.2 ±0.8 204
