795kg/Km Subsea Fiber Optic Heavy Duty Armoured Cable GYTA5333 4-144 Core Single Mode
795kg/Km Subsea Fiber Optic Heavy Duty Armoured Cable GYTA5333 4-144 Core Single Mode
795kg/Km Subsea Fiber Optic Heavy Duty Armoured Cable GYTA5333 4-144 Core Single Mode
795kg/Km Subsea Fiber Optic Heavy Duty Armoured Cable GYTA5333 4-144 Core Single Mode
795kg/Km Subsea Fiber Optic Heavy Duty Armoured Cable GYTA5333 4-144 Core Single Mode
795kg/Km Subsea Fiber Optic Heavy Duty Armoured Cable GYTA5333 4-144 Core Single Mode
795kg/Km Subsea Fiber Optic Heavy Duty Armoured Cable GYTA5333 4-144 Core Single Mode
795kg/Km Subsea Fiber Optic Heavy Duty Armoured Cable GYTA5333 4-144 Core Single Mode
Specifications
Brand Name :
Yiyuan
Certification :
ISO 9001;ISO 14001;OHSAS 18001
Place of Origin :
China
MOQ :
1KM
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
500000km/month
Delivery Time :
30 working days after received your payment
Packaging Details :

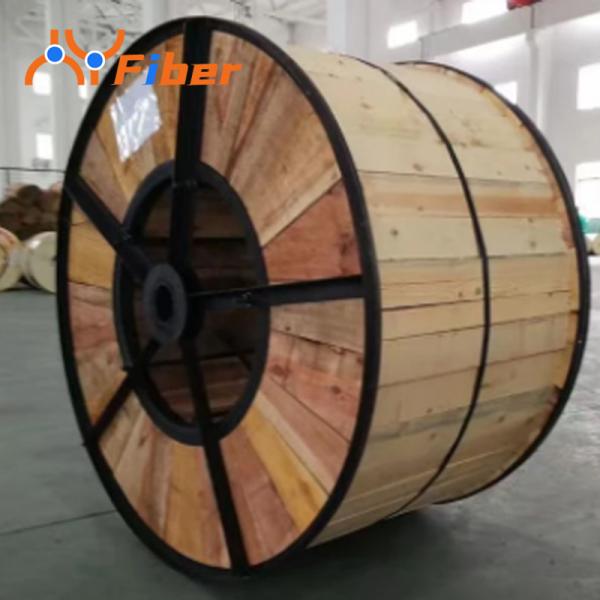

Wood coil strand
Product Name :
Armored Fiber Optic Cable
Fiber Count :
2-288 Core
OEM :
Accepted
Application :
Outdoor Duct
Jacket material :
PE PVC LSZH HDPE
Color :
Black or customized
Strength member :
Steel wire
Installation :
Self-supporting Aerial
Package :
Plywood Reel/customized
Description

795kg/Km Subsea Fiber Optic Heavy Duty Armoured Cable GYTA5333 4-144 Core Single Mode

Basic parameters:
Country of Origin China Product name armored fiber optic cable
Brand name Yiyuan Type GYTA5333
Fiber count 4-144 core Fiber mode Single mode G652D
Weight 261-795kg/km Outer diameter 14.2-22.3mm

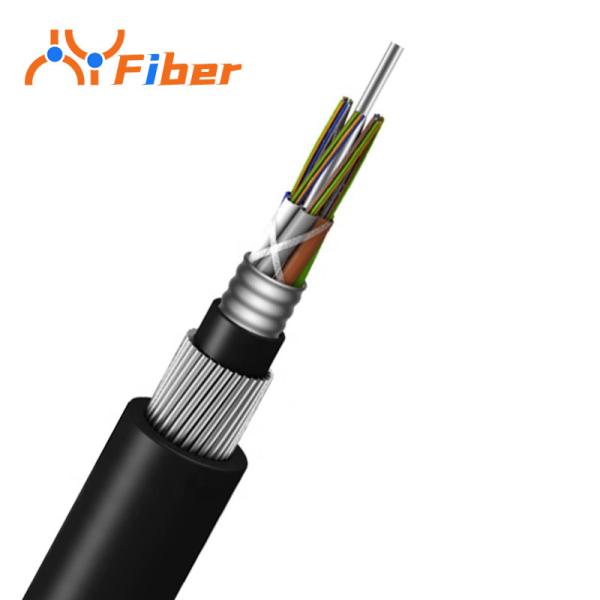

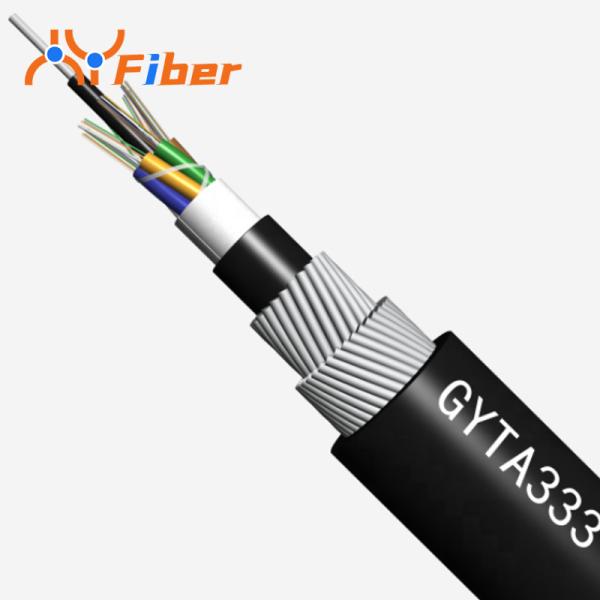

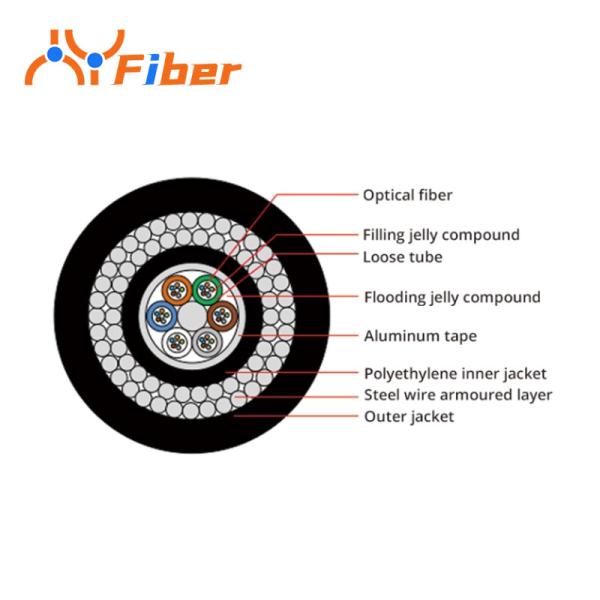

Structure

Loose tube stranded;

Multi armor and

multi jacket(sheath)

 Strength member

Aluminum tape;

Corrugated steel tape;

Round steel wire
Sheath material PE Strength member Phosphating steel wire
Operation temperature -20~+60℃
Other optional fiber 9/125: G652D,G657 50/125 62.5/125

A-class optical fiber provide the high performance of transmission; PBT loose tube material has good hydrolysis resistance, the tube is filled with special ointment to protect the optical fiber; Phosphating steel wire as strength member to improve the good tensile strength performance; With good temperature characteristics; PE sheath anti-UV Three layers of armor and jacket,moisture-proof, crush resistant,durable;

795kg/Km Subsea Fiber Optic Heavy Duty Armoured Cable GYTA5333 4-144 Core Single Mode795kg/Km Subsea Fiber Optic Heavy Duty Armoured Cable GYTA5333 4-144 Core Single Mode795kg/Km Subsea Fiber Optic Heavy Duty Armoured Cable GYTA5333 4-144 Core Single Mode
