GYTA33 Armoured Underwater Fiber Optic Cable Anti Corrosion Single Mode 4 Core 288 Core
GYTA33 Armoured Underwater Fiber Optic Cable Anti Corrosion Single Mode 4 Core 288 Core
GYTA33 Armoured Underwater Fiber Optic Cable Anti Corrosion Single Mode 4 Core 288 Core
GYTA33 Armoured Underwater Fiber Optic Cable Anti Corrosion Single Mode 4 Core 288 Core
GYTA33 Armoured Underwater Fiber Optic Cable Anti Corrosion Single Mode 4 Core 288 Core
GYTA33 Armoured Underwater Fiber Optic Cable Anti Corrosion Single Mode 4 Core 288 Core
GYTA33 Armoured Underwater Fiber Optic Cable Anti Corrosion Single Mode 4 Core 288 Core
GYTA33 Armoured Underwater Fiber Optic Cable Anti Corrosion Single Mode 4 Core 288 Core
Specifications
Brand Name :
Yiyuan
Certification :
ISO 9001;ISO 14001;OHSAS 18001
Place of Origin :
China
MOQ :
1KM
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
500000km/month
Delivery Time :
30 working days after received your payment
Packaging Details :
Wood coil strand
Product Name :
Armored Fiber Optic Cable
Fiber Count :
2-288 Core
OEM :
Accepted
Application :
Outdoor Duct
Jacket material :
PE PVC LSZH HDPE
Color :
Black or customized
Strength member :
Steel wire
Installation :
Self-supporting Aerial
Package :
Plywood Reel/customized
Description

GYTA33 Armoured Underwater Fiber Optic Cable Anti Corrosion Single Mode 4 Core 288 Core

Description:

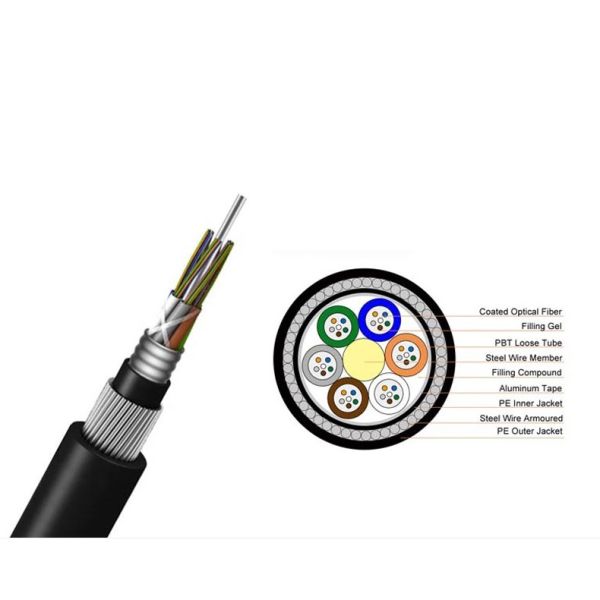

Fiber optic cable GYTA33, 2~72 fibers, central strength member (steel), jelly filled, fiber contained loose tube and pp filler (if necessary) stranded, water blocking jelly, copolymer coated aluminum tape, pe inner sheath, armored by a layer of steel wires, pe outer sheath. G652d sm fiber, detailed specification on your request.

Application:


1. Laying modes: direct buried & under-water.
2. Applications: Long-distance communication, local trunk line, catv & computer networks system.

Fiber count 2~30 32~36 38~60 62~72 2~36 38~72
CSM/Steel wire (mm) --/1.5 --/2.0 --/1.8 2.4/1.8 --/2.0 2.4/1.8
Element mumber 5 6 5 6 6 6
Max. cores in tube 6 6 12 12 6 12
Diameter of inner sheath 8.3 8.8 9.1 9.7 10.5 10.5
Steel wire diameter and No. Φ1.0/28 Φ1.0/29 Φ1.0/30 Φ1.0/32 Φ1.5/24 Φ1.5/24
Cable diameter approx (mm) 14.3 14.8 15.1 15.7 17.5 17.5
Weight approx (kg/km) 315 328 340 360 520 520
Tensile strength (N) Long term 4000 10000
Short term 10000 2000
Crush Resistence(N/100mm) Long term 3000
Short term 5000
Bending Radius (mm) Dynamic ≥30 ×Dia. Of cable
Static ≥15×Dia. Of cable
Operating Temperature (°C) -40°C ~+ 70°C
Application Directly burial and Under water
