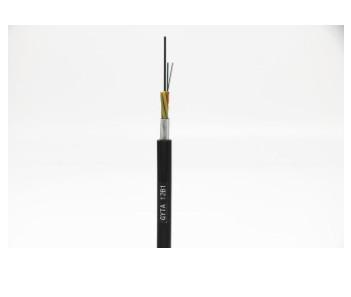

144 Core Submarine Optical Fiber Cable 48 Core Outdoor Rated Fiberglass
144 Core Submarine Optical Fiber Cable 48 Core Outdoor Rated Fiberglass
Specifications
Brand Name :
Yiyuan
Certification :
OHSAS 18001, ISO 14001, ISO 9001
Place of Origin :
China
MOQ :
1KM
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
500000km/month
Delivery Time :
30 working days after received your payment
Packaging Details :
Wood coil strand
Product Name :
Armored Fiber Optic Cable
Number of Cores :
2~288 core
OEM :
Accepted
Application :
Outdoor Duct
Outer Sheath :
PE/HDPE/AT
Strength member :
Steel wire
Installation :
Self-supporting Aerial
Package :
Plywood Reel/customized
Description

144 Core Submarine Optical Fiber Cable 48 Core Outdoor Rated Fiberglass

Characteristics

· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility
· PE sheath protects cable from ultraviolet radiation
· The following measures are taken to ensure the cable watertight:
· Steel wire used as the central strength member
· Loose tube filling compound and 100% cable core filling
· PSP enhancing moisture-proof

Specifications

Number of fiber 2~144core
Moisture Barrier Water blocking system
Central strength member Material Steel wire/FRP/FRP with PE cover
size 1.5mm~2.0mm
Loose tube material PBT
diameter 2.2(outer/inner)
Tube-filling Tube filling compoun
Armoring Material Corrugated steel tape
Outer sheath material PE,HDPE
diameter 1.70±0.2mm
core Cable diameter weight
2 cores to 60 cores 10.0±0.3mm 115±5kg/km
72 cores 10.5±0.3mm 120±5kg/km
96 cores 12.5±0.3mm 180±5kg/km
144 cores 14.5±0.3mm 245±5kg/km
Min Bending Radius(mm) Long term 10D
Min Bending
Radius(mm)		 Short term 20D
Min allowable
Tensile Strength(N)		 Long term 600
Min allowable
Tensile Strength(N)		 Short term 1500
Crush Load (N/100mm) Long term 300
Crush Load (N/100mm) short term 1000
Operation
temperature (℃)		 -40+70
Installation
temperature(℃)		 -20+60

144 Core Submarine Optical Fiber Cable 48 Core Outdoor Rated Fiberglass144 Core Submarine Optical Fiber Cable 48 Core Outdoor Rated Fiberglass144 Core Submarine Optical Fiber Cable 48 Core Outdoor Rated Fiberglass
