96 Core Fiber Optic Cable Double Steel Tape Armoured Cable
96 Core Fiber Optic Cable Double Steel Tape Armoured Cable
96 Core Fiber Optic Cable Double Steel Tape Armoured Cable
96 Core Fiber Optic Cable Double Steel Tape Armoured Cable
Specifications
Brand Name :
Yiyuan
Certification :
OHSAS 18001, ISO 14001, ISO 9001
Place of Origin :
China
MOQ :
1KM
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
500000km/month
Delivery Time :
30 working days after received your payment
Packaging Details :
Wood coil strand
Product Name :
Armored Fiber Optic Cable
Fiber Count :
2-288 Core
OEM :
Accepted
Application :
Outdoor Duct
Jacket material :
PE PVC LSZH HDPE
Color :
Black or customized
Strength member :
Steel wire
Installation :
Self-supporting Aerial
Description

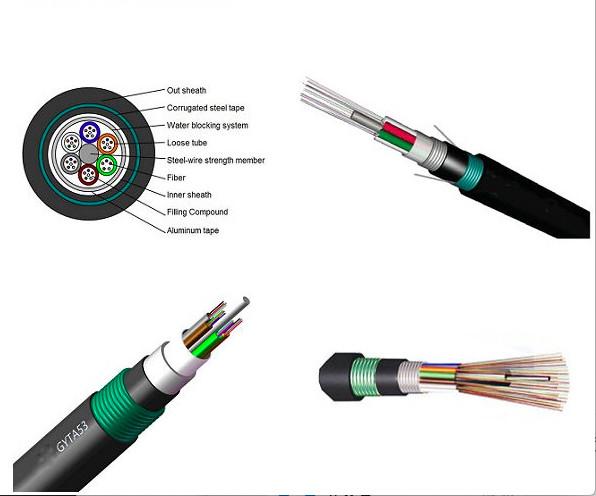

96 Core Fiber Optic Cable Double Steel Tape Armoured Cable

Characteristics:


· Good mechanical and temperature performance.


· Special tube filling compound ensure a critical protection of fiber.


· Crush resistance and flexibility.


· PSP enhancing moisture-proof.

Applications:

· Adopted to outdoor distribution and direct burial.

· Adopted to trunk power transmission system.

· Access network and local network in high electromagnetic interfering places.

Specification

No. of fibers 6F 12F 24F 36F 48F 72F 96F 144F
No. of tubes 1 1 2 3 4 6 8 12
fibers per tube 6 6 6 12 12 12 12 12
Filler Rod 5 4 2 3 2 0 0 0
Tube diameter (±0.1mm) 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0
Thickness of loose tube
(±0.05mm)		 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3
Inner sheath diameter
(±0.2mm)		 9.2 9.2 9.2 9.2 9.2 9.2 10.8 13.2
Thickness of inner diameter
(±0.2mm)		 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0
Outer diameter (±0.5mm) 13.8 13.8 13.8 13.8 13.8 13.8 15.6 18.2
Thickness of out diameter
(±0.2mm)		 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.8
Loose tube Material PBT Color Standard spectrum
Filler rod Material PP Color Natural
Central strength member Material FRP Diameter 2.0mm±0.1mm
Water blcoking system Material Water blocking tape
Inner armor Material Aluminum tape
Inner sheath Material PE Color Black
Rip cord Qty 2pcs Color White
Outer armor Material Corrugated steel tape
Outer sheath Material PE Color

96 Core Fiber Optic Cable Double Steel Tape Armoured Cable96 Core Fiber Optic Cable Double Steel Tape Armoured Cable
