6 Core Armored Fiber Optic Cable Dielectric Steel Wire Black UV Polyethylene
6 Core Armored Fiber Optic Cable Dielectric Steel Wire Black UV Polyethylene
6 Core Armored Fiber Optic Cable Dielectric Steel Wire Black UV Polyethylene
6 Core Armored Fiber Optic Cable Dielectric Steel Wire Black UV Polyethylene
6 Core Armored Fiber Optic Cable Dielectric Steel Wire Black UV Polyethylene
6 Core Armored Fiber Optic Cable Dielectric Steel Wire Black UV Polyethylene
Specifications
Brand Name :
Yiyuan
Certification :
ISO 9001;ISO 14001;OHSAS 18001
Place of Origin :
China
MOQ :
1KM
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
500000km/month
Delivery Time :
30 working days after received your payment
Packaging Details :
Wood coil strand
Product Name :
Armored Fiber Optic Cable
Number of Cores :
2~288 core
OEM :
Accepted
Outer Sheath :
PE/HDPE/AT
Strength member :
Steel wire
Package :
Plywood Reel/customized
Description

6 Core Armored Fiber Optic Cable Dielectric Steel Wire Black UV Polyethylene

Characteristics:

  • Small cable diameter(adapt for bad climate), light weight, 100m span, low attached load on tower.
  • Non-metal structure, good insulation, anti-thunder.
  • Fine production technology, even force for aramid yarn, with superior stress flexibility.


Application:

  • Erect on the same pole with power line in new and old power line.
  • Areas of strong electric field,
  • anti-thunder, etc.
  • Long span communication system.


International standards:

  • IEC 60794-1; TIA/EIA 604-5
  • ITU-T G.652D

Technical Parameters:

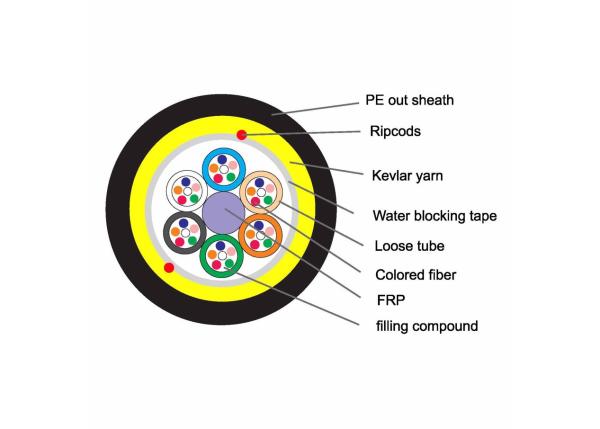

Construction of optical fiber cable.

Items Description
Number of fiber 24 96
Number of loose tube 4 8
Number of fibers per tube 6 12
Number of fillers 1 0
Color of Jacket Black Black
PE outer sheath thickness 1.8±0.2mm 1.8±0.2mm
PE inner sheath thickness 1.0±0.2mm 1.0±0.2mm
Loose tube diameter 2.2±0.1mm 2.6±0.1mm
FRP strength member diameter 1.6mm 2.6mm
RTS(KN) 5 5
MAT(KN) 2 2
EDS(KN) 0.8 0.8
Cable diameter 12.2±0.2mm 15.6±0.2mm
Approx. weight cable Kg/Km 128 190


Climate Characteristics:

Climate type Wind speed(m/s) Ice(mm) Extra load(N/m)
A 25 0 0.7
B 35 0 0.7
C 10 5 2.5
D 10 10 4.4

Cable diameter(mm) Cable weight(kg/km) RTS(KN) EDS(KN) Temperature range(℃) Suitable span(m)
A B C D
12.2±0.2 128 5 0.8 -40～+70 100 70 90 70


Mechanical and environmental data:

Temperature range Storage/Shipping temperature range
Operating temperature range		 ℃ -40℃ ~ +70℃
Min. Bending Radius
(mm)		 Dynamic mm 20D
Static mm 10D
Max. Crushing Resistance (N/100mm²) Short-term N/100mm² 4000
Long-term N/100mm² 1000

Number of fiber 24-144core
Filling rope 2-0
Moisture Barrier Water blocking system
Central strength member material FRP/FRP with PE
size 2.1mm
Tube-filling Tube filling compoun
filler PP tube/ PVC tube
Inner sheath material PE
Loose tube material PBT
diameter Ф2.2(outer/inner)
Outer armored material Aluminium tape/Corrugated steel tape
Outer sheath material PE/HDPE
diameter 1.7±0.2mm

6 Core Armored Fiber Optic Cable Dielectric Steel Wire Black UV Polyethylene6 Core Armored Fiber Optic Cable Dielectric Steel Wire Black UV Polyethylene
