Lightweight FRP Non Metallic Fiber Optic Cable Self Supporting Aerial Duct
Lightweight FRP Non Metallic Fiber Optic Cable Self Supporting Aerial Duct
Specifications
Brand Name :
Yiyuan
Certification :
ISO 9001;ISO 14001;OHSAS 18001
Place of Origin :
China
MOQ :
1KM
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
500000km/month
Delivery Time :
30 working days after received your payment
Packaging Details :
Wood coil strand
Product Name :
Non Metallic Fiber Optic Cable
Number of Cores :
2-144 core
Outer Sheath Material :
PE
OEM :
Accepted
Application :
Outdoor duct/outdoor cable/aerial/lashed
Color :
Black or customized
Number of Conductors :
≥ 10
Installation :
Self-supporting Aerial
Package :
Plywood Reel/customized
Fiber Type :
Single mode
Strength member :
FRP
Description

Lightweight FRP Non Metallic Fiber Optic Cable Self Supporting Aerial Duct

Quick Introduction:

Steel polyethylene outer sheath armored fiber optic cable has small diameter and lightweight, and anti-electromagnetism ability. It occupies little space and use steel tape. It also has low coefficient of attenuation and chromatic dispersion.

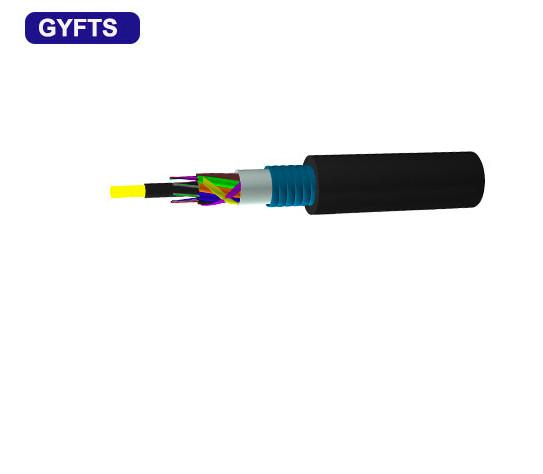

Fiber Optic Cable GYFTs is an outdoor optical cable, it consists of optic fiber, PBT loose stranding tube, fulll-filled gel, water blocking materials, sheathed steel tape and HDPEclading optical cable.

Optical Characteristics

Attenuation @850nm ≤3.0 dB/km ≤3.0 dB/km
(+20℃) @1300nm ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.40 dB/km
@1550nm ≤0.22 dB/km ≤0.23dB/km
@850nm ≥500 MHz·km ≥200 MHz·km
Bandwidth (Class A) @1300nm ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm ≤1480nm

Technical Parameters

Cable Type Fiber Count Tubes Fillers Cable Diameter Cable Weight kg/km Tensile Strength Crush Resistance
Bending Radius
Long/Short Term Static/Dynamic
mm Long/Short Term N N/100mm mm
GYFTY-2~6 2~6 1 5 10.6 88 400/1000 300/1000 10D/20D
GYFTY-8~12 8~12 2 4 10.6 88 400/1000 300/1000 10D/20D
GYFTY-14~18 14~18 3 3 10.6 88 400/1000 300/1000 10D/20D
GYFTY -20~24 20~24 4 2 10.6 88 400/1000 300/1000 10D/20D
GYFTY-26~30 26~30 5 1 10.6 88 400/1000 300/1000 10D/20D
GYFTY-32~36 32~36 6 0 10.6 88 400/1000 300/1000 10D/20D
GYFTY-2~6 2~6 1 6 11 97 600/1500 300/1000 10D/20D
GYFTY-8~12 8~12 2 5 11 97 600/1500 300/1000 10D/20D
GYFTY-14~18 14~18 3 4 11 97 600/1500 300/1000 10D/20D
GYFTY-20~24 20~24 4 3 11 97 600/1500 300/1000 10D/20D
GYFTY-26~30 26~30 5 2 11 97 600/1500 300/1000 10D/20D
GYFTY-32~36 32~36 6 1 11 97 600/1500 300/1000 10D/20D
GYFTY-38~42 38~42 7 0 11 97 600/1500 300/1000 10D/20D
GYFTY-44~48 44~48 4 2 12 113 600/1500 300/1000 10D/20D
GYFTY-50~60 50~60 5 1 12 113 600/1500 300/1000 10D/20D
GYFTY-62~72 62~72 6 0 12 113 600/1500 300/1000 10D/20D
GYFTY-2~6 2~6 1 7 12 120 1000/3000 300/1000 10D/20D
GYFTY-8~12 8~12 2 6 12 120 1000/3000 300/1000 10D/20D
GYFTY-14~18 14~18 3 5 12 120 1000/3000 300/1000 10D/20D
GYFTY-20~24 20~24 4 4 12 120 1000/3000 300/1000 10D/20D
GYFTY-26~30 26~30 5 3 12 120 1000/3000 300/1000 10D/20D
GYFTY-32~36 32~36 6 2 12 120 1000/3000 300/1000 10D/20D
GYFTY-38~42 38~42 7 1 12 120 1000/3000 300/1000 10D/20D
GYFTY-44~48 44~48 8 0 12 120 1000/3000 300/1000 10D/20D
GYFTY-50~60 50~60 5 2 13 137 1000/3000 300/1000 10D/20D
GYFTY-62~72 62~72 6 1 13 137 1000/3000 300/1000 10D/20D
GYFTY-74~84 74~84 7 0 13 137 1000/3000 300/1000 10D/20D
GYFTY-86~96 86~96 8 0 13.9 154 1000/3000 300/1000 10D/20D
GYFTY-98~108 98~108 9 1 15.3 185 1000/3000 300/1000 10D/20D
GYFTY-110~120 110~120 10 0 15.3 185 1000/3000 300/1000 10D/20
