Network Armored Fiber Optic Trunk Cable Outdoor Aerial Hydrolysis Resistant
Network Armored Fiber Optic Trunk Cable Outdoor Aerial Hydrolysis Resistant
Network Armored Fiber Optic Trunk Cable Outdoor Aerial Hydrolysis Resistant
Network Armored Fiber Optic Trunk Cable Outdoor Aerial Hydrolysis Resistant
Specifications
Brand Name :
Yiyuan
Certification :
ISO 9001;ISO 14001;OHSAS 18001
Place of Origin :
China
MOQ :
1KM
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
500000km/month
Delivery Time :
30 working days after received your payment
Packaging Details :
Wood coil strand
Product Name :
Non Metallic Fiber Optic Cable
Number of Cores :
2-144 core
Outer Sheath Material :
PE
OEM :
Accepted
Application :
Outdoor duct/outdoor cable/aerial/lashed
Color :
Black or customized
Number of Conductors :
≥ 10
Installation :
Self-supporting Aerial
Package :
Plywood Reel/customized
Fiber Type :
Single mode
Strength member :
FRP
Description

Network Armored Fiber Optic Trunk Cable Outdoor Aerial Hydrolysis Resistant

Description:

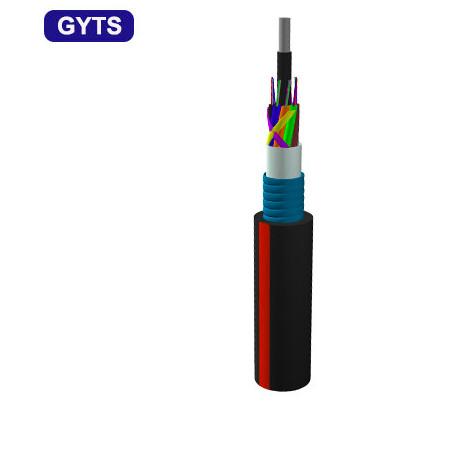

GYTS fiber optic cable is a type of fiber optic cable that comprises fiber stand from 2 - 432 cores. This type of fiber cable has drastically changed the telecommunication industry through the use of more effective forms of communication networks. GYTS fiber optic cable has improves the communication effectiveness across the urban areas.

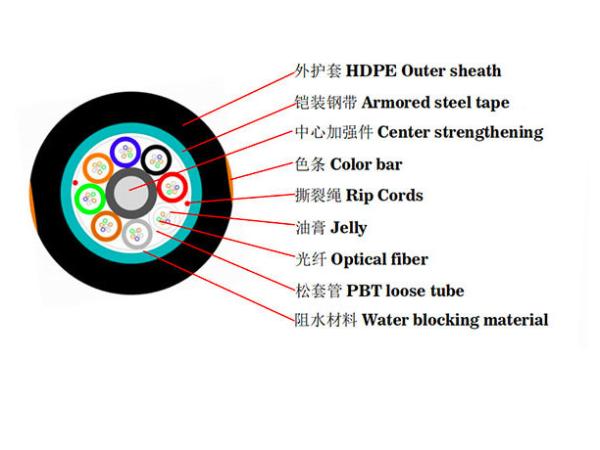

Structure:

  • Loose tube stranding,
  • Metal strength member,
  • Flooding jelly compound,
  • Steel-polyethylene adhesive sheath.

Characteristics

Optimum cable structure, high fibre density.

Accurate fibre length balance, ensure stable performance.

No gel in cable core for water blocking, low carbon and environmental friendly.

Structure Innovation in sheath, enhancing the blowing performance.

Proven loose tube design for performance.

Small diameter, lightweight and low friction sheath design.

Excellent blowing length and fast, safe and cost effective installation.

Easy installation and removal when necessary.

Applications

Buried, duct, aerial

Relay communication system
Core network
Temperature Operating temperature: -40°C~+70°C
Standards YD/T901-2009
IEC60794-1

Technical Parameters:

Fiber Count Structure Diameter(mm) Weight (kg/km) Tensile(N) Crush(N) Bending Radius(mm)
Long term Short term Long term Short term Static Dynamic
2-30 1+5 9.2 89 600 1500 300 1000 10D 20D
32-36 1+6 9.7 104 600 1500 300 1000 10D 20D
38-60 1+5 9.8 99 600 1500 300 1000 10D 20D
62-72 1+6 10.7 125 600 1500 300 1000 10D 20D
74-84 1+7 11.4 135 600 1500 300 1000 10D 20D
86-96 1+8 12.1 148 600 2000 300 1000 10D 20D
98-108 1+9 12.7 162 600 2000 300 1000 10D 20D
110-120 1+10 13.3 174 600 2000 300 1000 10D 20D
122-132 1+11 13.9 187 600 2000 300 1000 10D 20D
134-144 1+12 14.6 204 600 2000 300 1000 10D 20D
146-216 1+6+12 14.7 212 600 2500 300 1000 10D 20D
218-288 1+9+15 16.7 254 600 3000 300 1000 10D 20D

FAQ


1. Are you trading company or manufacturer?
We are the manufacturer with 12 years experience.


2. About the quality?
After price confirmation, you can require for samples to check our quality.


3. Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.


4. What is your delivery time?
It mainly depend on order quantity.But pls be assured that we will arrange your goods asap after your payment .
