96 Strand Amp Fiber Optic Cable Access Network Large Span Lengths
96 Strand Amp Fiber Optic Cable Access Network Large Span Lengths
96 Strand Amp Fiber Optic Cable Access Network Large Span Lengths
96 Strand Amp Fiber Optic Cable Access Network Large Span Lengths
96 Strand Amp Fiber Optic Cable Access Network Large Span Lengths
96 Strand Amp Fiber Optic Cable Access Network Large Span Lengths
96 Strand Amp Fiber Optic Cable Access Network Large Span Lengths
96 Strand Amp Fiber Optic Cable Access Network Large Span Lengths
96 Strand Amp Fiber Optic Cable Access Network Large Span Lengths
96 Strand Amp Fiber Optic Cable Access Network Large Span Lengths
Specifications
Brand Name :
Yiyuan
Certification :
ISO 9001;ISO 14001;
Place of Origin :
China
MOQ :
1KM
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
500000km/month
Delivery Time :
30 working days after received your payment
Packaging Details :
Wood coil strand
Product Name :
ADSS fiber cable
Core No. :
12 up to 144 cores
Type :
fiber optic cable, Coaxial
Application :
Outdoor Aerial, FTTH , access network
Jacket material :
PE or AT
Operating temp.: :
-20℃~+85℃
Color :
Black or customized
Description

96 Strand Amp Fiber Optic Cable Access Network Large Span Lengths

Features:

- Good mechanical and temperature performance

- High strength loose tube that is hydrolysis resistant

- Special tube filling compound ensure a critical protection of fiber

- Crush resistance and flexibility

- The following measures are taken to ensure the cable watertight

- Steel wire used as the central strength member

- Loose tube filling compound

- 100% cable core filling

- APL moisture barrier

- PSP enhancing moisture-proof

- Water-blocking material

Technical data

Fiber Num. Outer diameter (mm) Weight (kg/km) Tension (N) Crash loading (N/100mm)
Short term Long term Short term Long term
2-30 12.9 160 3000 1000 3000 1000
32-60 13.4 175
62-72 14.1 204
74-84 15.4 245
86-96 15.4 245
98-120 17.2 285
122-144 19 334

Performance

Application : Used for long haul communication and local network

Installation method : burial and duct

Operating temperature : -40°C ~ +70°C

Permisson bent radius Static :12.5 times O.D.

Dynamic :25 times O.D.

No. of cable
12
24
48
Fiber Model
G.652D

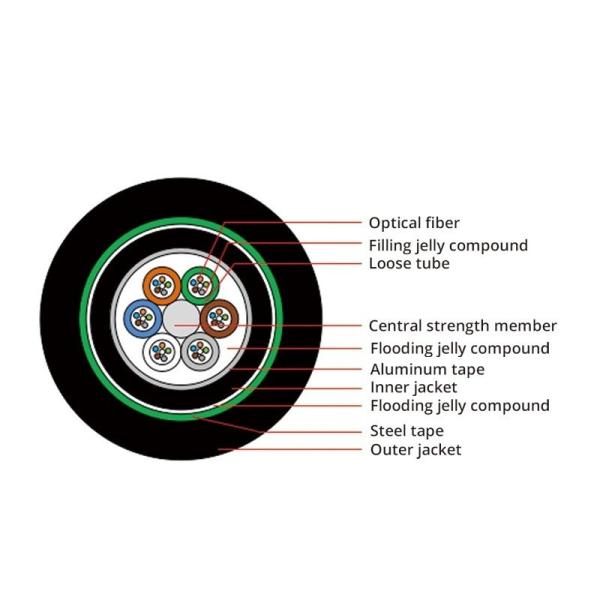

Design
(StrengthMember+Tube&Filler)
1+5
Central Strength Member
Material
Steel Wire
Diameter(±0.5)mm
1.4
Loose Tube
Material
PBT
Diameter(±0.06)mm
1.72
1.72
2.0
Thickness(±0.03)mm
0.30
0.30
0.32
The Max.Core NO./Tube
6
6
12
Filler Rope
Material
LDPE
Diameter(±0.06)mm
1.7
1.7
2.0
NO.
3
1
1
Moisture Barrier
Material
Polymer Coated Aluminum Tape
Thickness(±0.03)mm
0.20
Inner
Sheath
Material
MDPE
Thickness(±0.2)mm
0.9
Armoring
Material
Polymer Coated Steel Tape
Thickness(±0.2)mm
0.22
Water Bloaking Layer
Material
Filling Compound
Outer Sheath
Material
MDPE
Thickness(±0.2)mm
1.8
Cable Diameter(±0.5)mm
12.5
12.5
13.1
Cable Weight(±10)kg/km
152
167
167
Attenuation
1310nm
0.35dB/ km
1550nm
0.21dB/ km
Min. bending radius
Without Tension
12.5×Cable-φ
Under Maximum Tension
25.0×Cable-φ
Temperature range
(℃)
Installation
-20~+60
Transport&Storage
-40~+70
Operation
-40~+70
